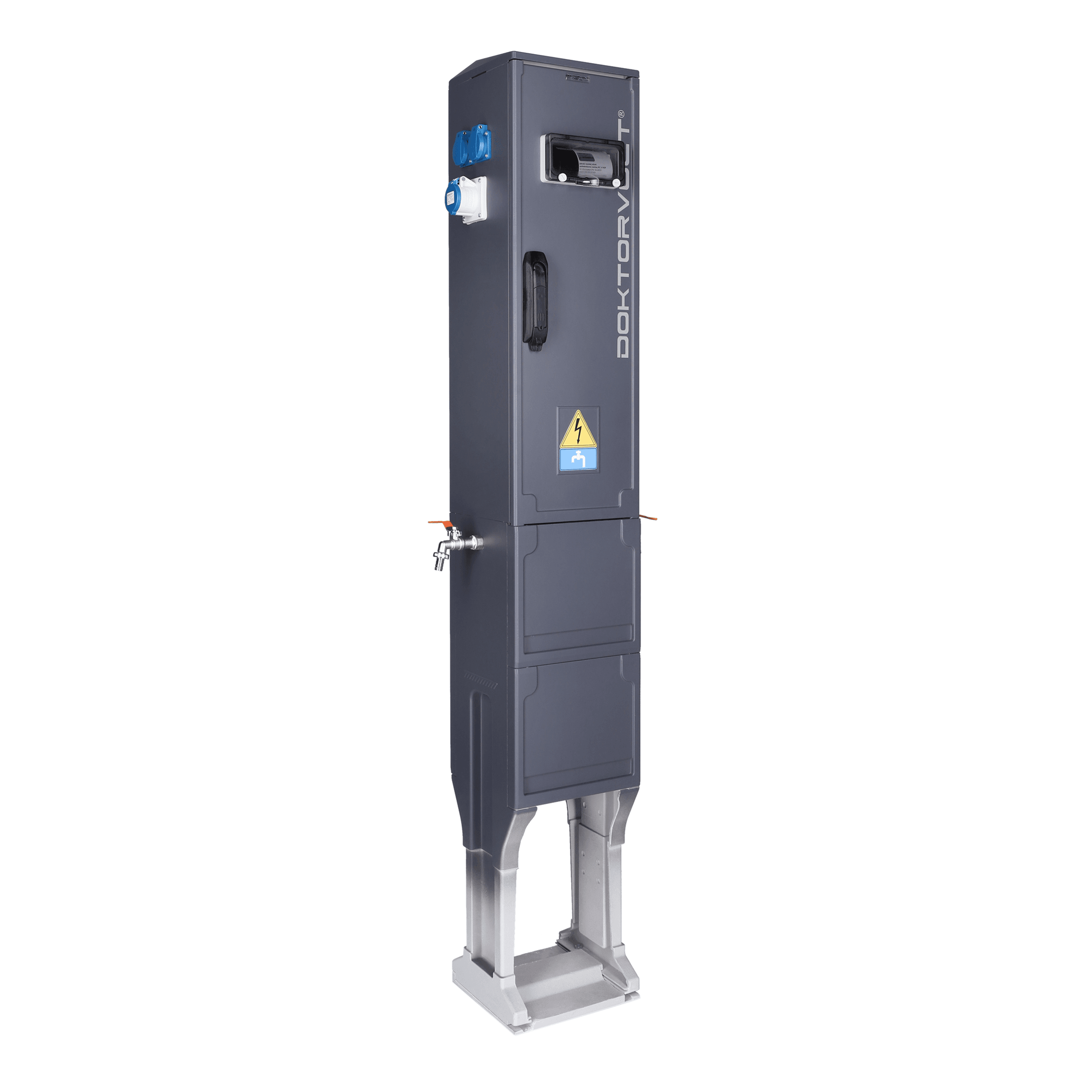

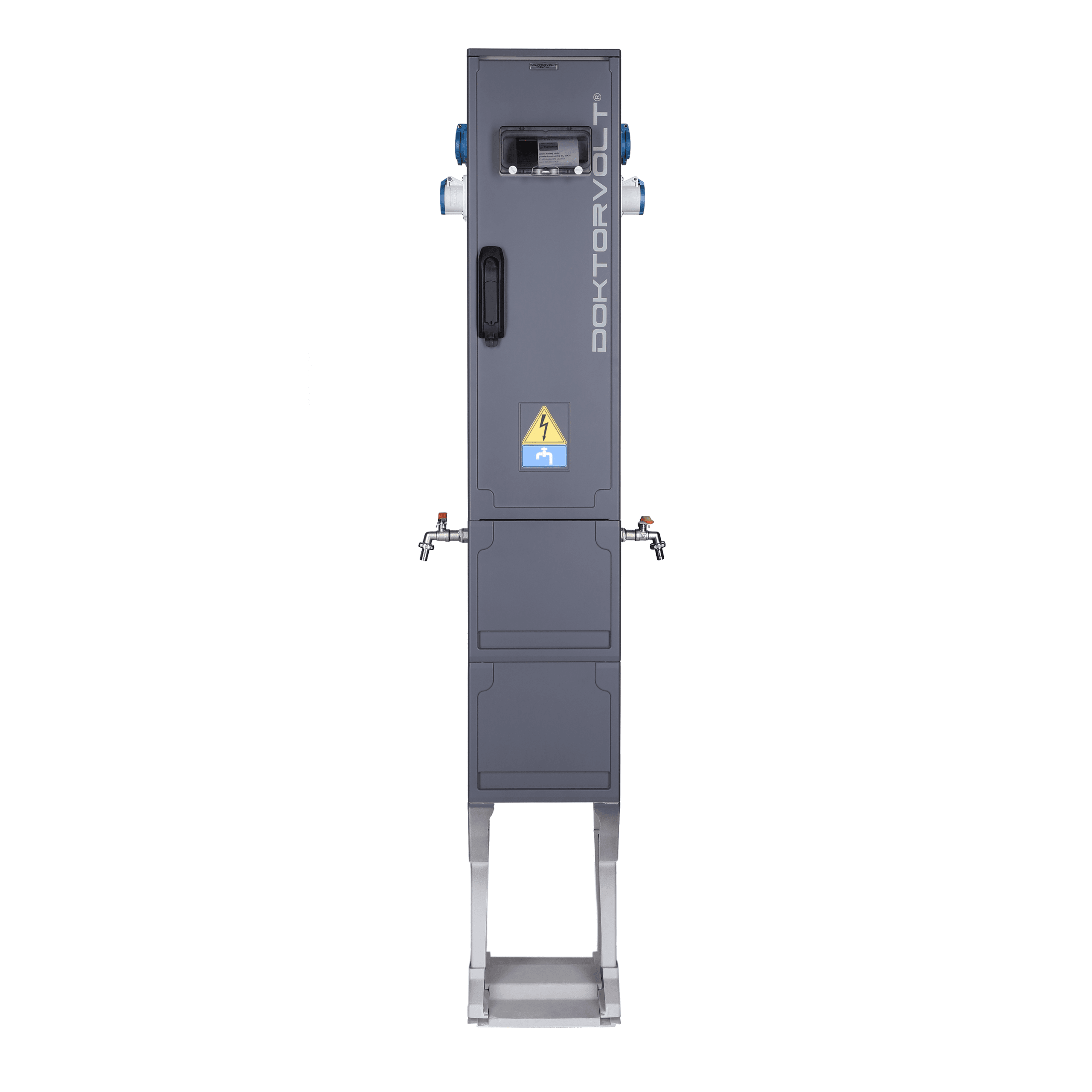

Campsite Power Bollard CV-CAMP RCBO 4×230 CEE Camp DV

⭐⭐⭐⭐⭐

CV-CAMP are supply bollards designed for power distribution.

➡️ Camping electrical hook up point, characteristics :

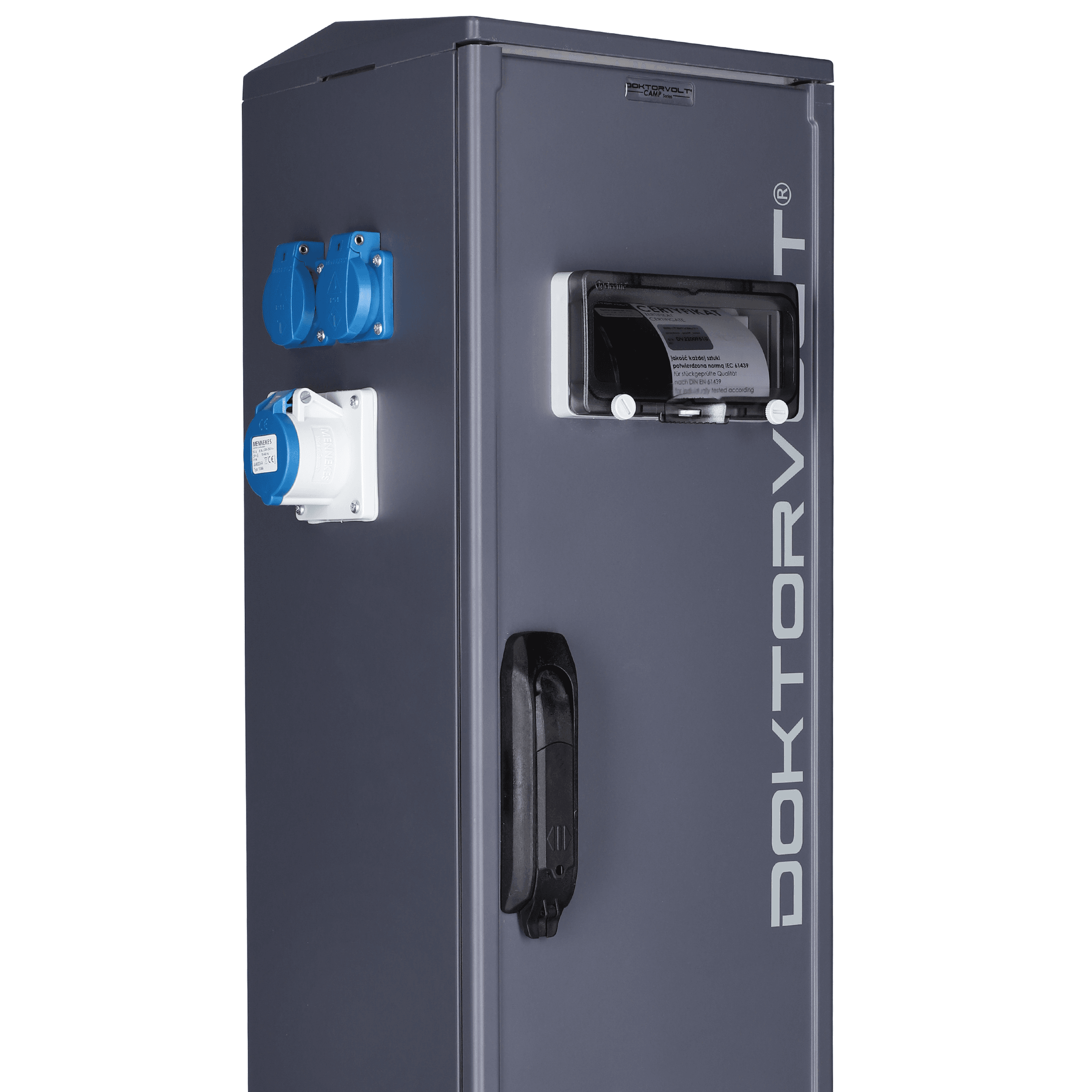

✔️ is equipped with 4 3P 230V5 camping sockets,

✔️ schuko socket outlets and a residual current circuit breaker with overcurrent protection with a reset button.

socket manufacturerMennekes
housing manufacturer

Doktorvolt

isolating switch disconnector

Isolating switch disconnector RV63N 32A 230V 3+N 4P

number of sockets 230V 16A

4x 16A 3P 230V IP44 Type 1366 Mennekes

protection against indirect contact
4 x B16A 30mA 10kA 2P SEZ RCBO VDE

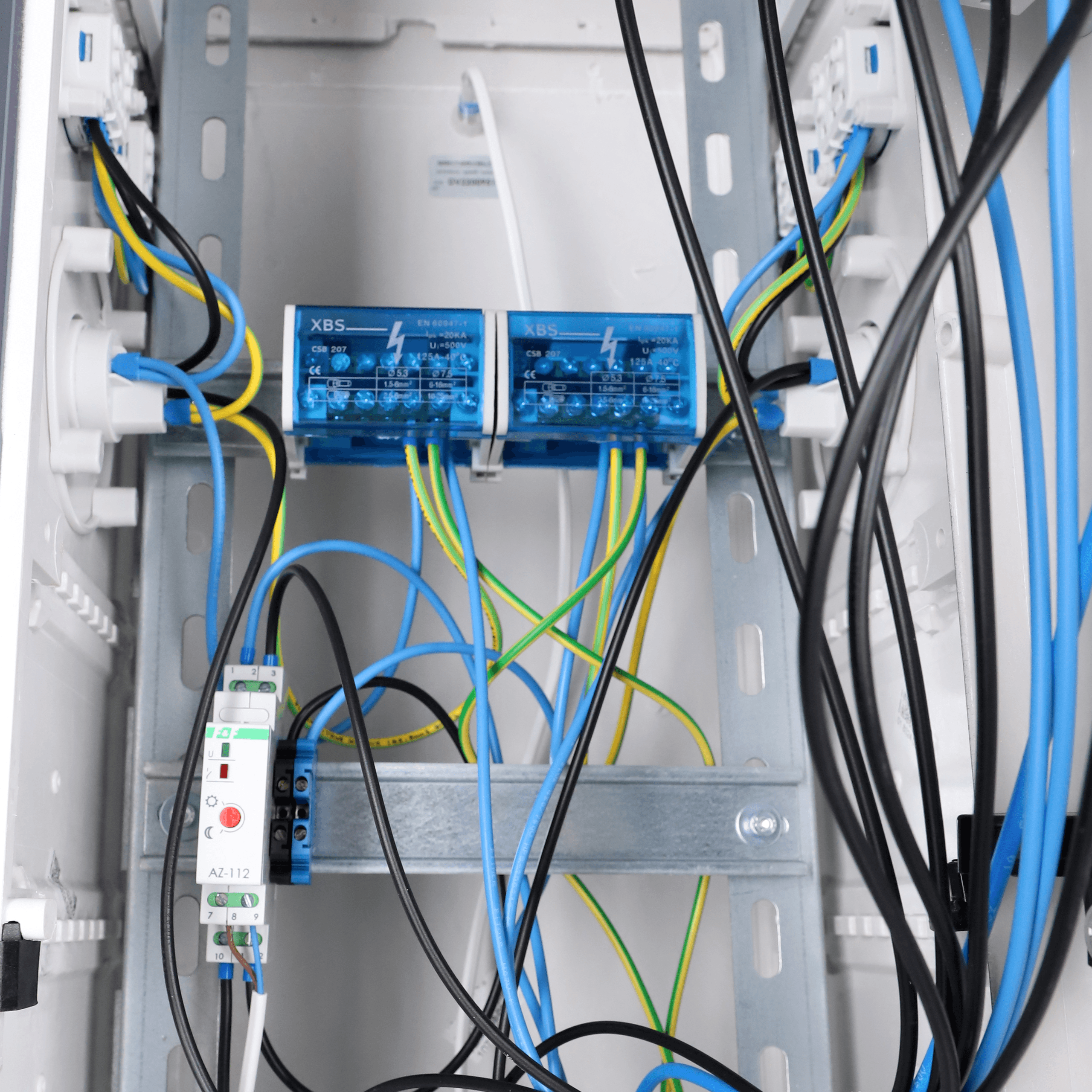

bus bar1-phase 12-module 10mm2
nominal voltage230/400V AC 50Hz
nominal current32A
International Protection RatingIP44
Icc≤ 10kA
RDF0,7
dimensions
170x36x24 cm
manufacturerDoktorvolt
symbolDV-7914-D
EAN5907589337914
