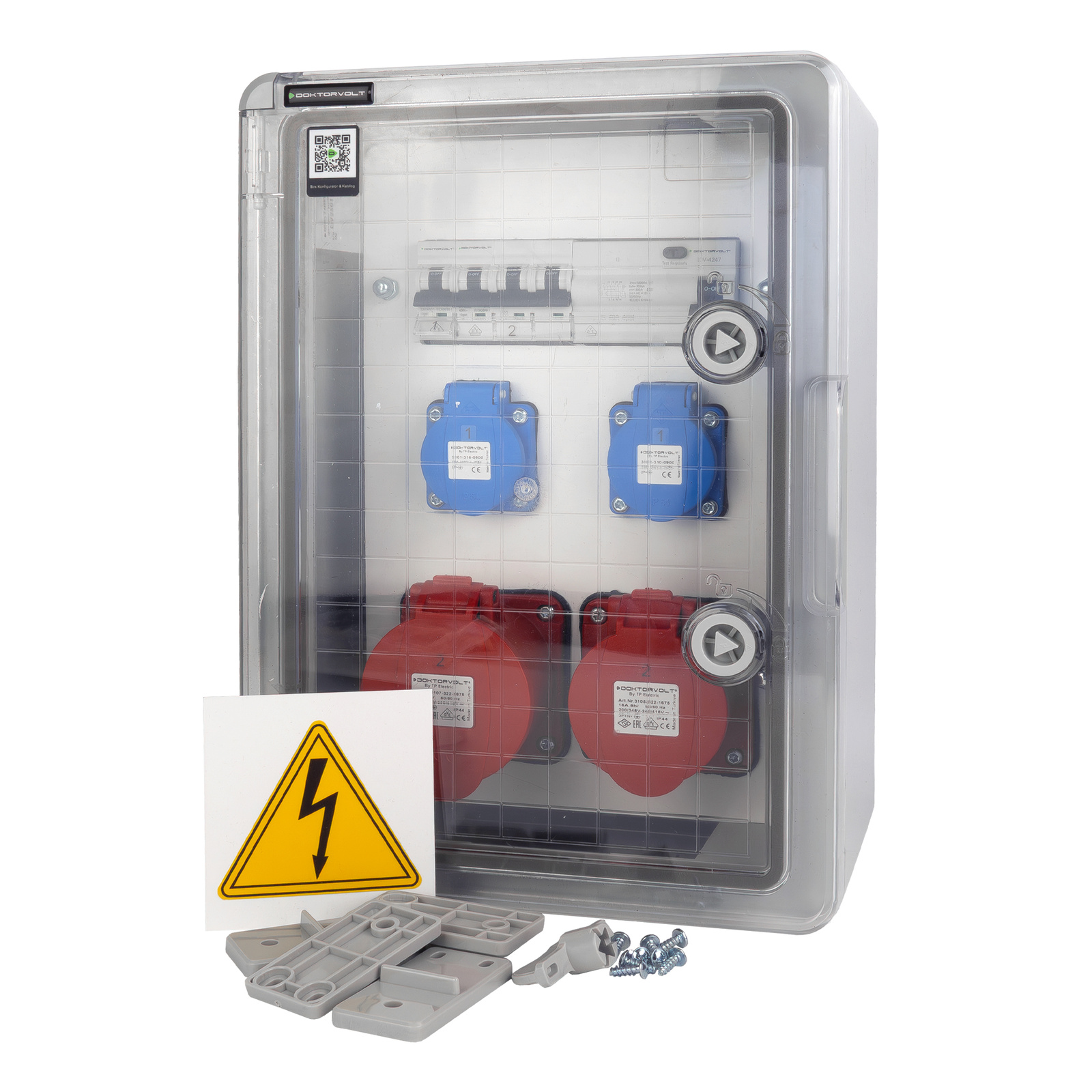

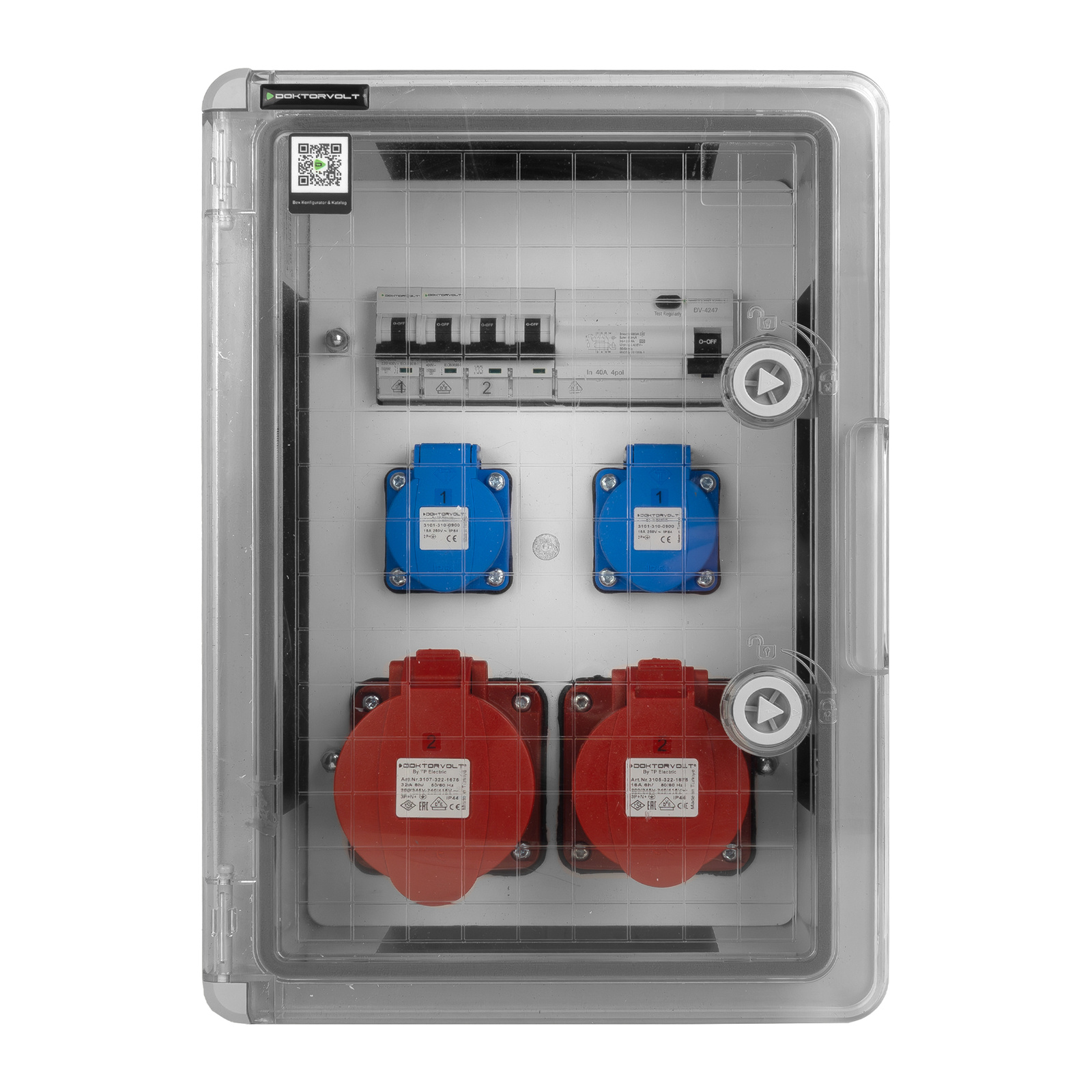

Distribution box 16A/32A CEE 2x230V construction site with a transparent-door enclosure and VDE safety features Doktorvolt DV-6777-D
A robust construction site distribution board with 2x230V and 2 CEE 400V sockets. Made from high-quality materials. Protected by overcurrent circuit breakers and a residual current device.
ABS SERIES | | EAN: 5905191016777
Technical specifications
| Weight | 10 kg |
|---|---|
| Fuses | MCB + RCD |
| Socket type | Type F (Schuko) |
| CEE voltage | 400V |
| CEE current rating | 32A |
| Enclosure material | Plastic |

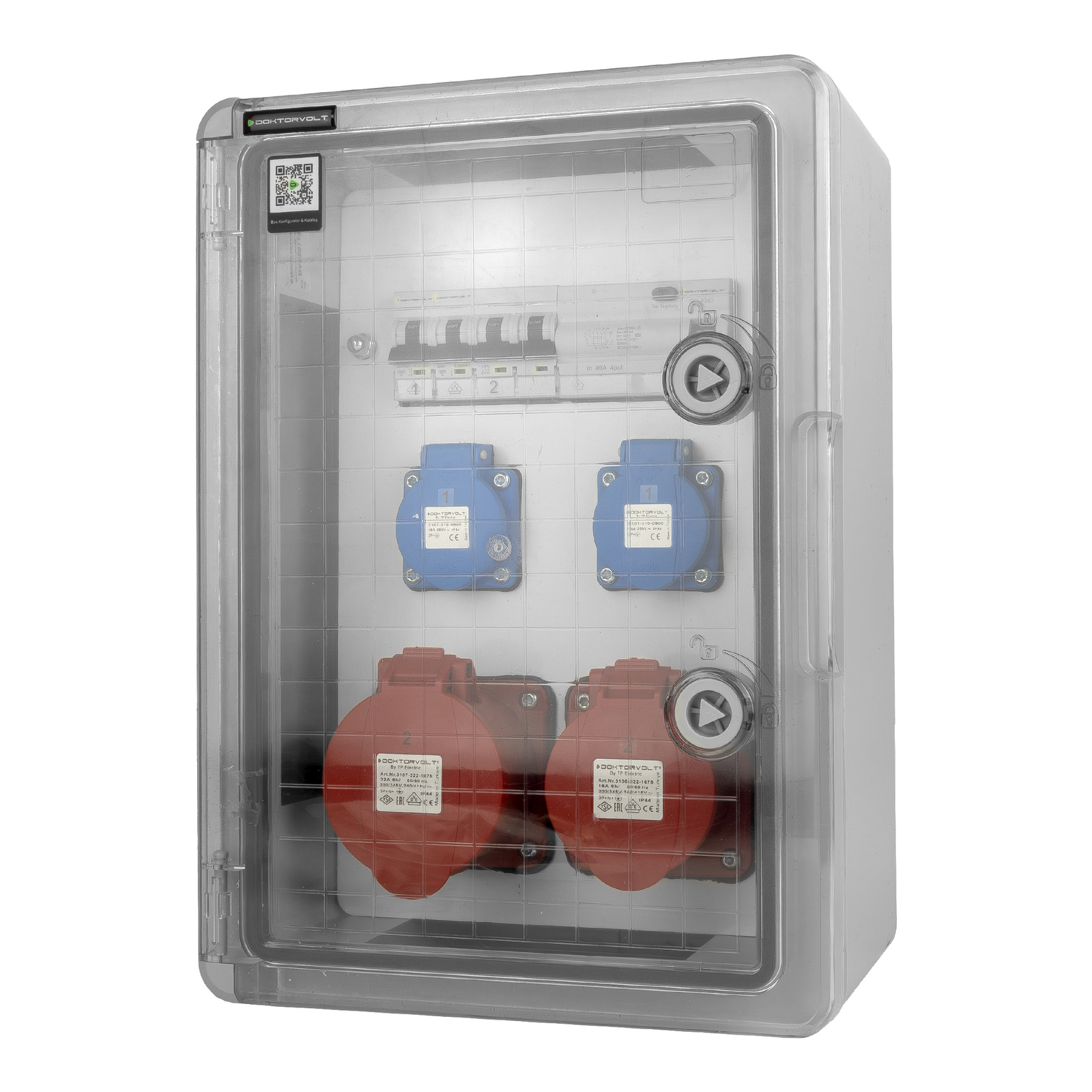

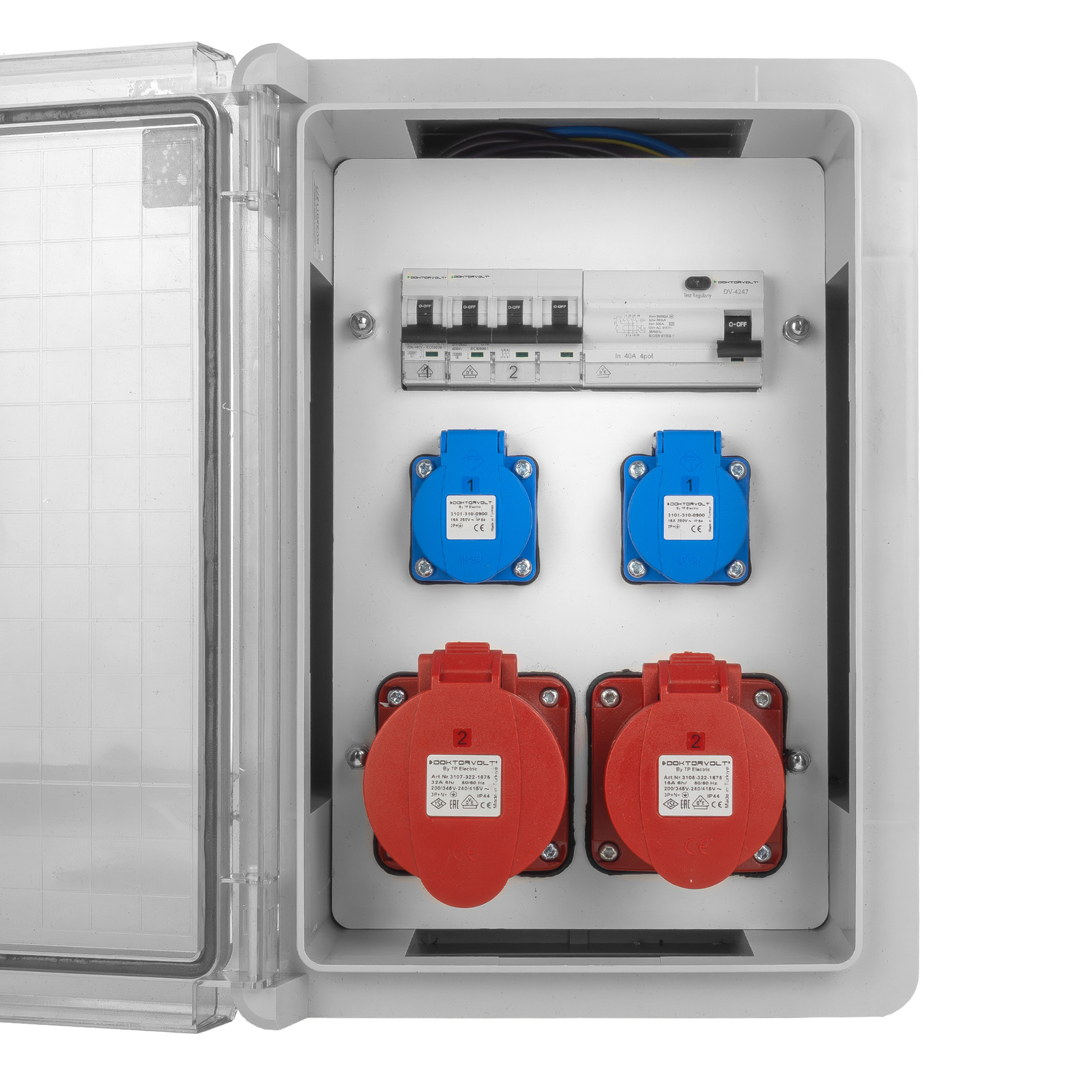

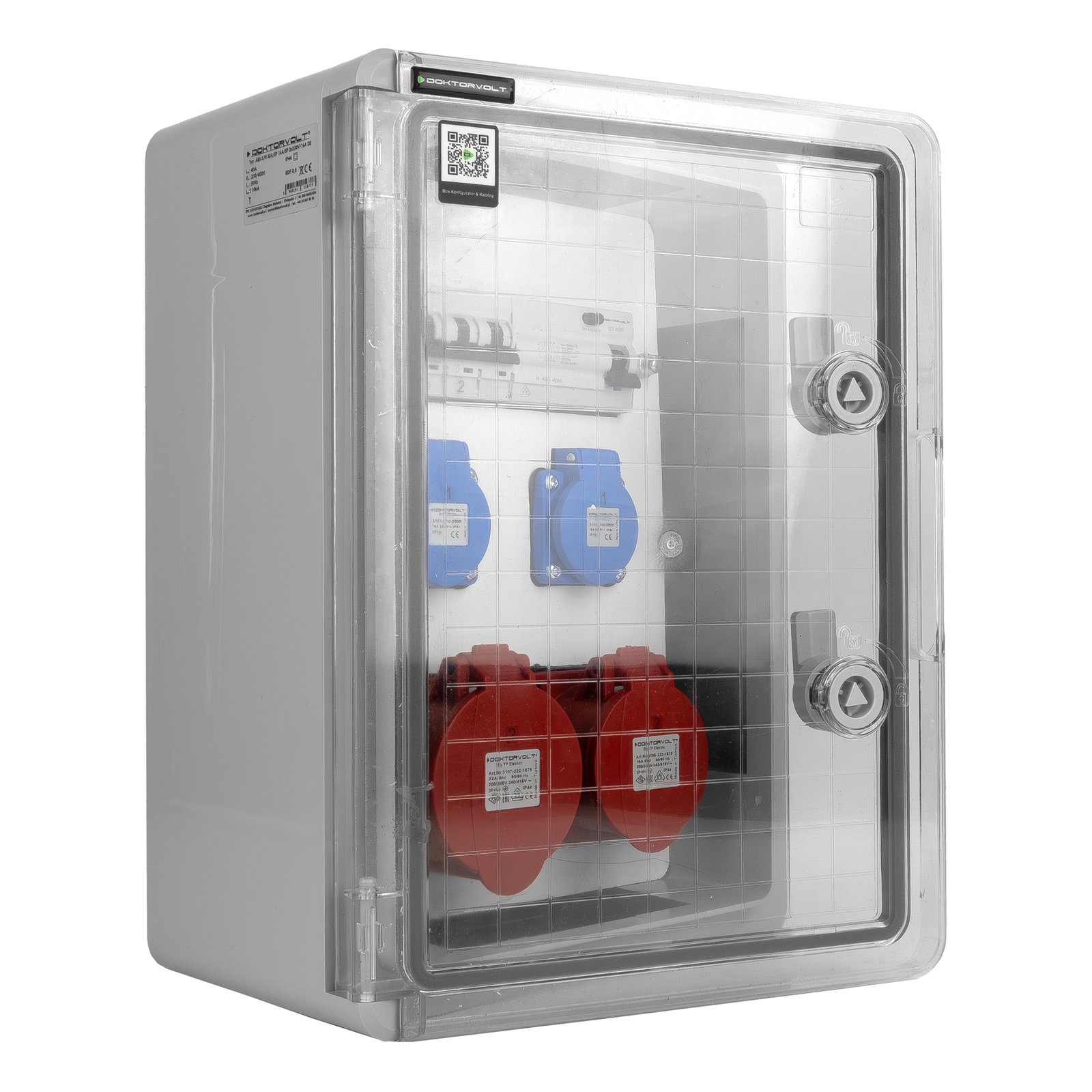

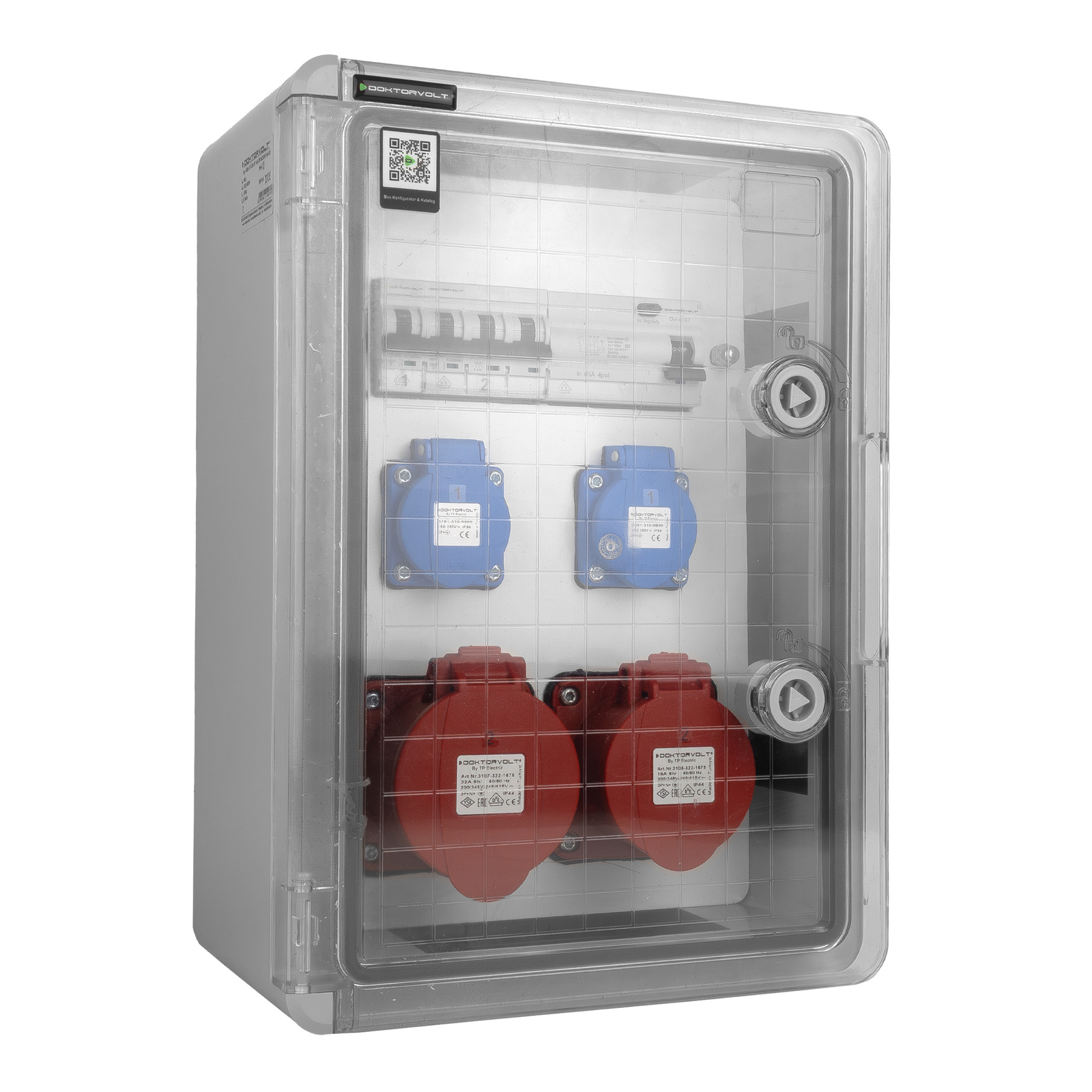

Electrical distribution board with 32A/16A CEE sockets, housing with transparent doors
A robust construction-site distribution board with 2x230V and 2 CEE 400V sockets. Made from high-quality materials. The distribution board is protected by overcurrent circuit breakers and a residual current device.
Multi-purpose sockets for full power control
User-friendliness combined with high build quality
Technical Specifications
General Information
Model: DV-6777-D
EAN: 5905191016777
Product series designation: ABS
Manufacturer: DOKTORVOLT
Sockets and Electrical Specifications
Sockets:

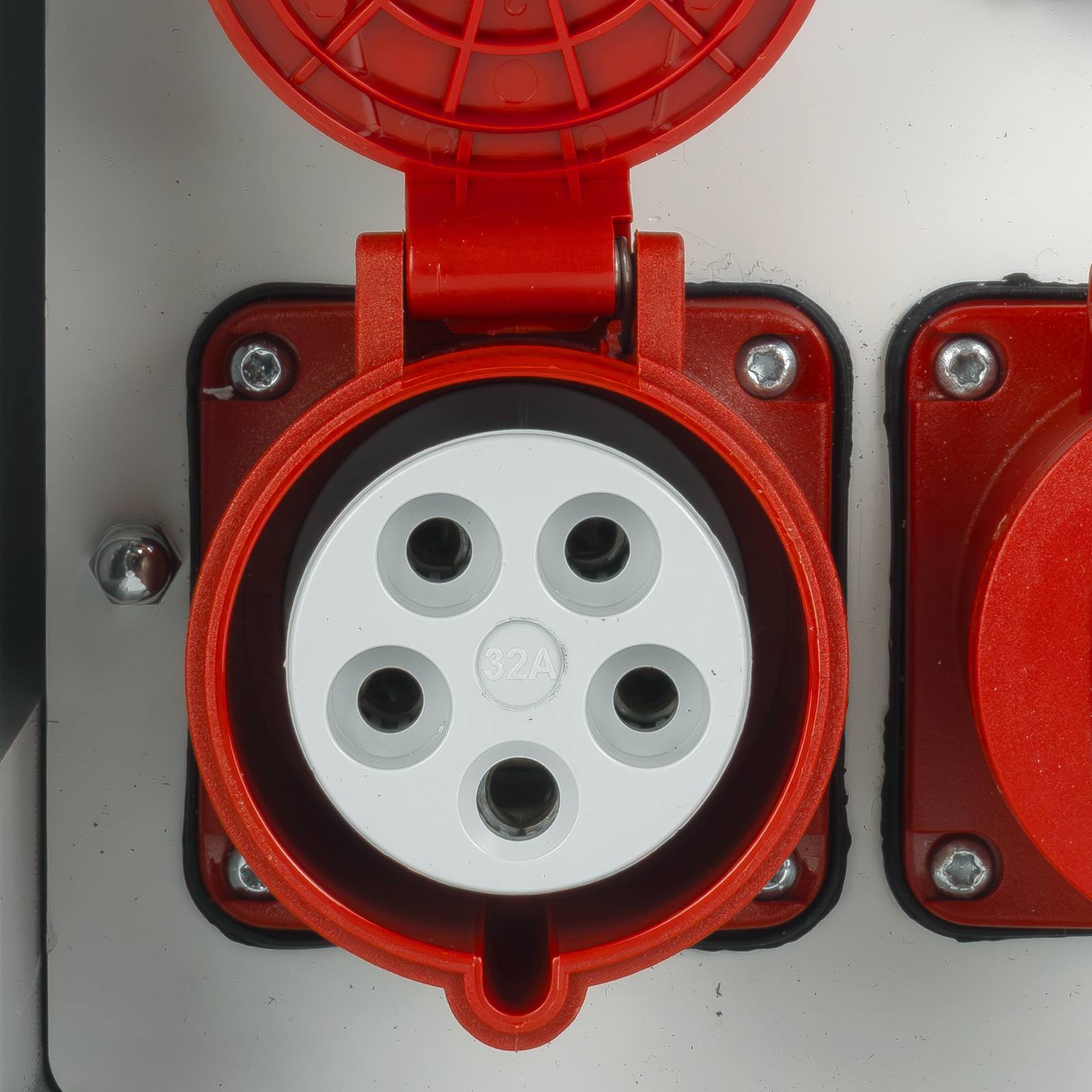

1× 400V / 32A 5P IP44 CEE

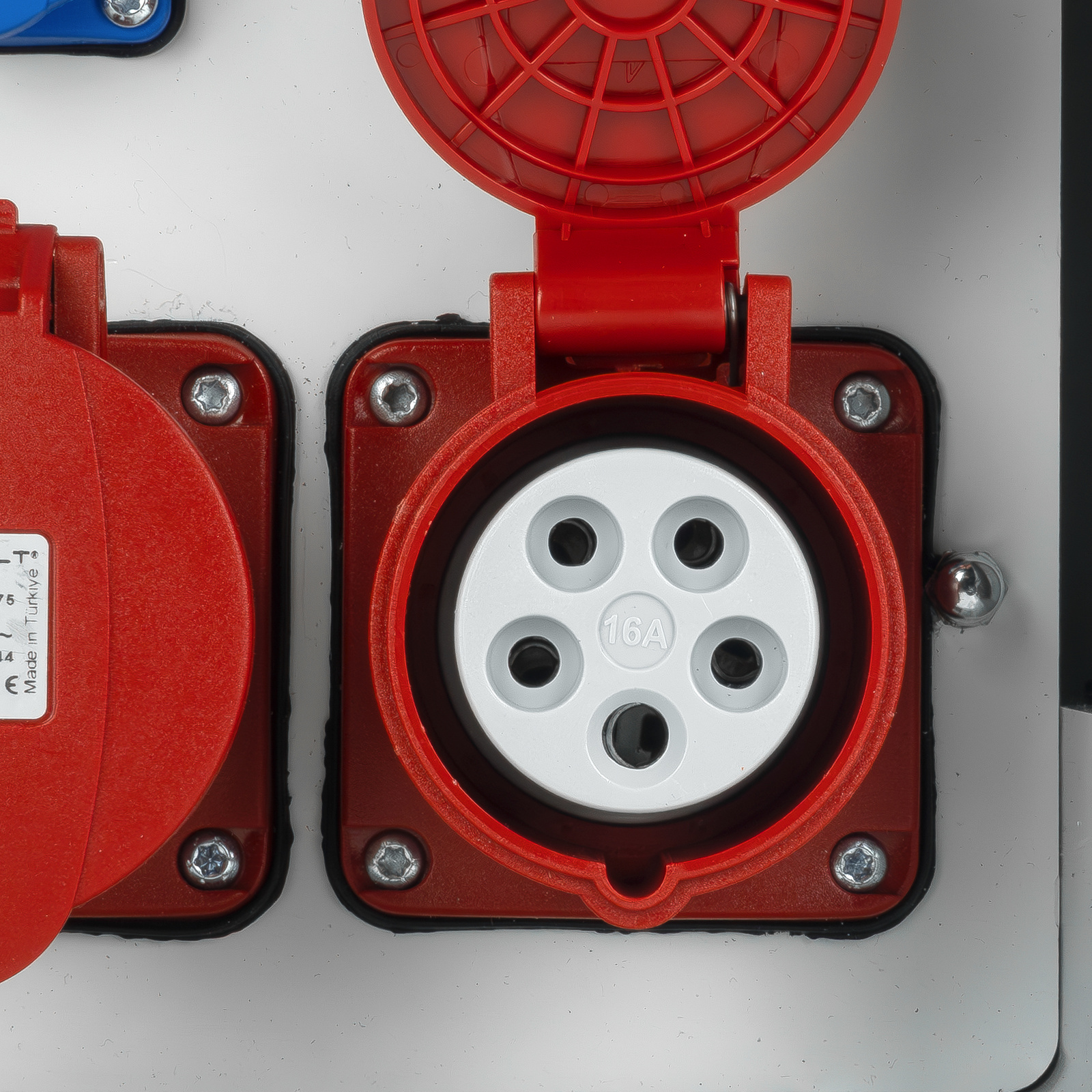

1× 400V / 16A 5P IP44 CEE

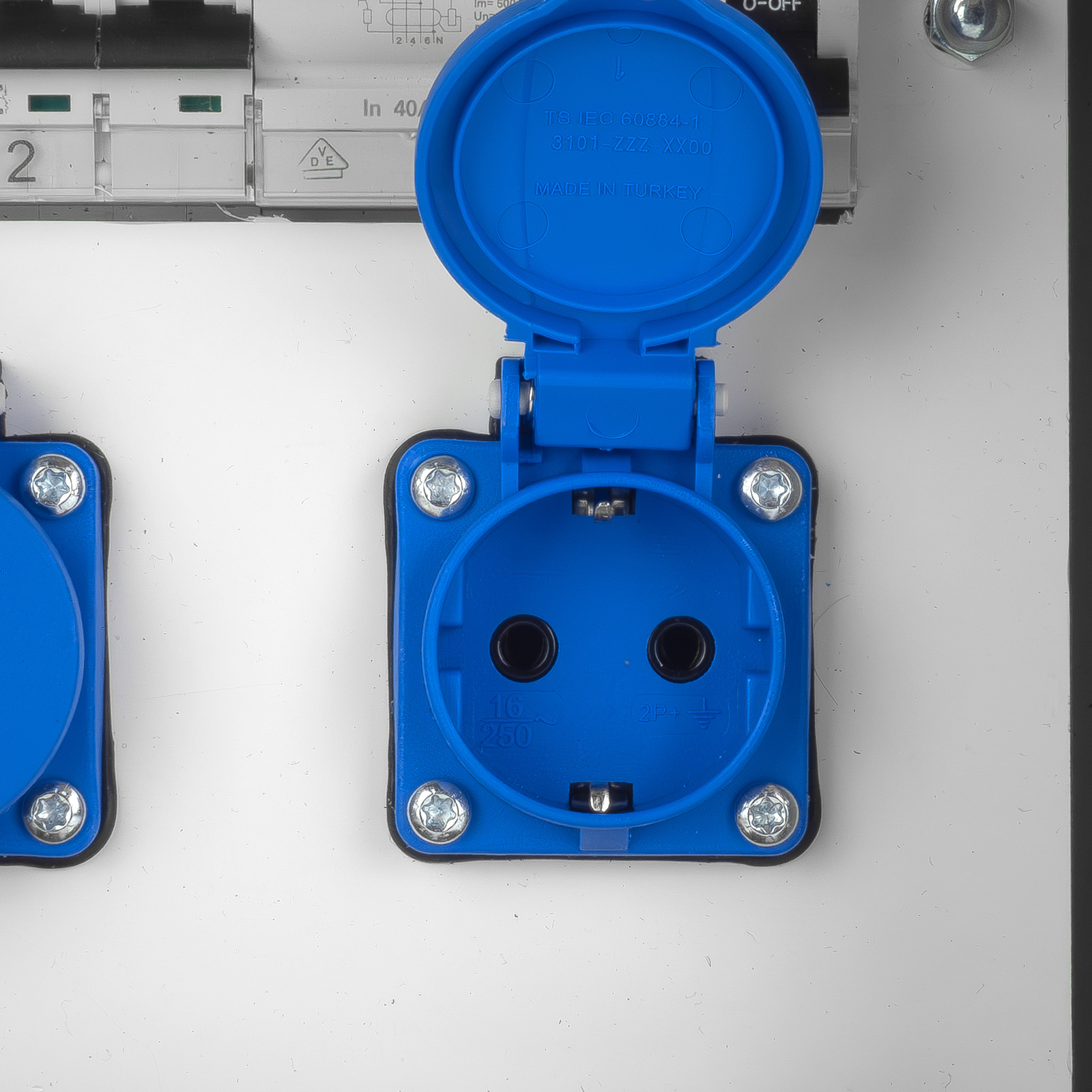

2× 230V/16A SCHUKO IP54
Protective equipment:
Residual current circuit breaker (RCCB) 1× 40A, 30mA, 4P, type A, 10kA, VDE
Miniature circuit breaker (MCB) C16A 1× 3P, 10kA, VDE
Circuit breaker (MCB) C16A 1× 1P, 10kA, VDE
Rated voltage: 230/400V AC
Rated frequency: 50/60 Hz
Rated current: 40A
Rated conventional short-circuit current: ≤10 kA
RDF: 0.8
Enclosure and Technical Specifications
Enclosure dimensions: 250×350×150 mm
Enclosure material: ABS
Enclosure colour: Grey, RAL 7035
Housing door: Transparent
Door opening angle: 180°

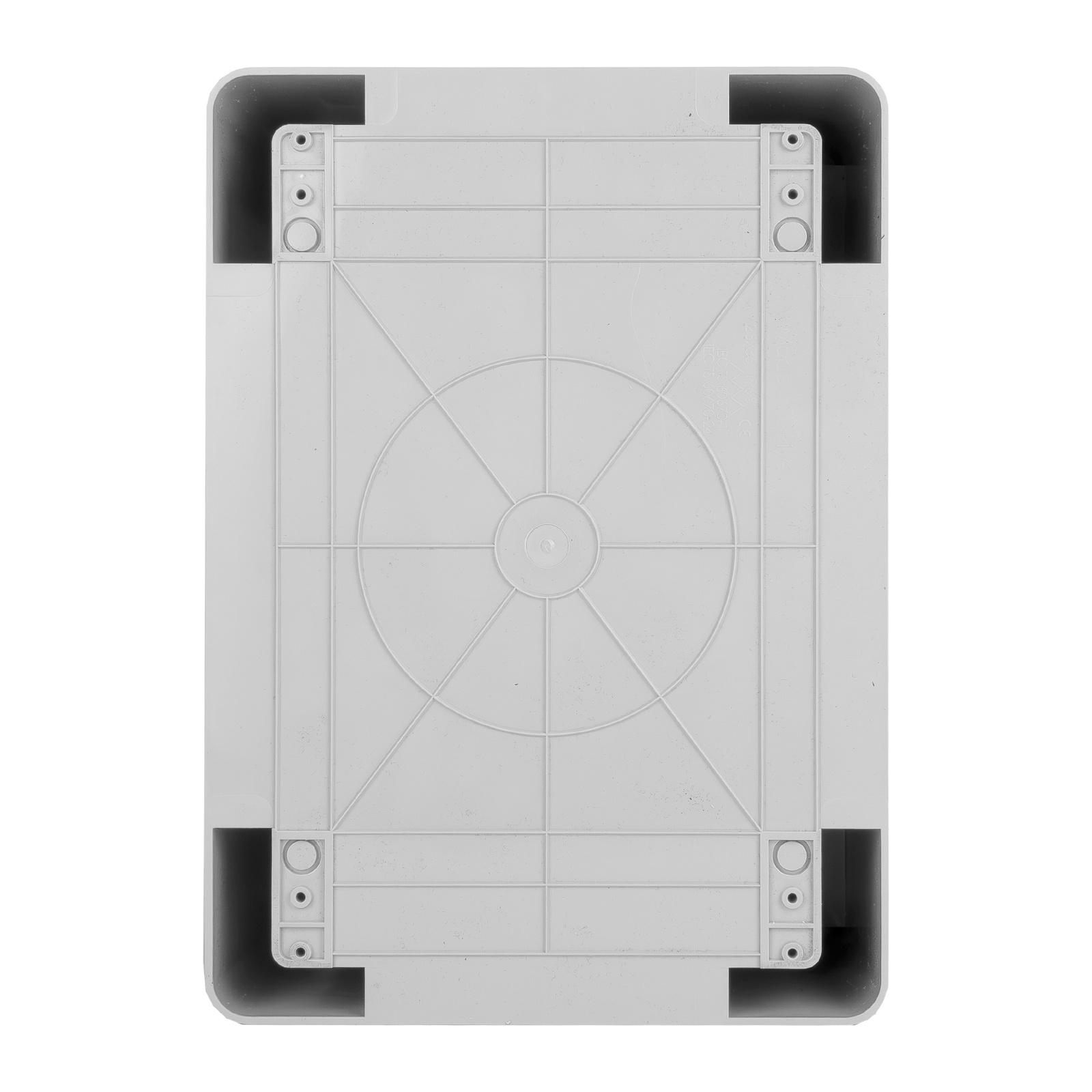

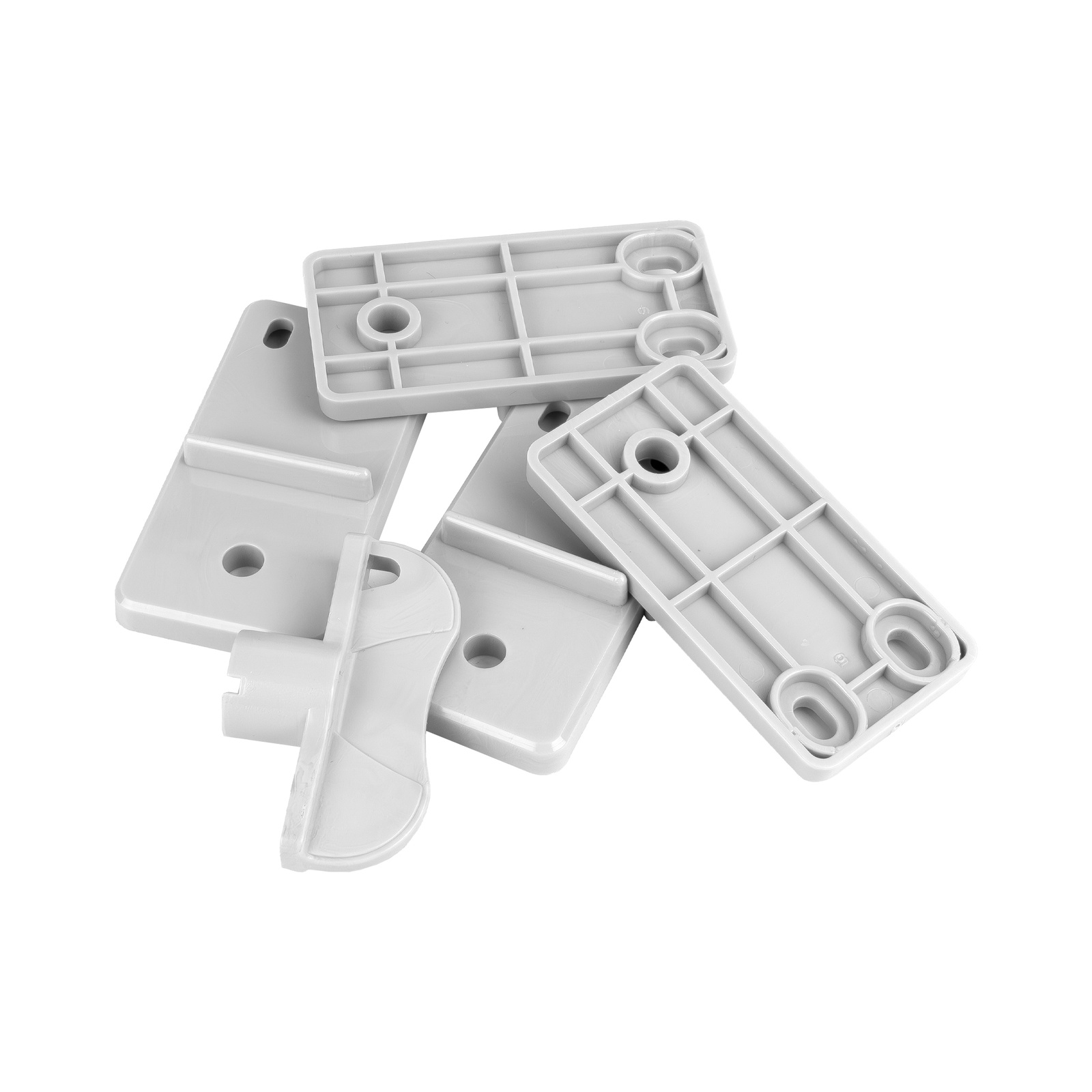

Mounting method: Wall-mounted
Mounting plate: PVC, white, 355×220×5mm
Mechanical impact resistance: IK10
Enclosure protection rating: IP65
UV resistance: Yes
Moisture resistance: Yes
Weather resistance: Yes
Acid and alkali resistance: Yes
Enclosure operating temperature: −40 to +80°C
Wiring and Standards

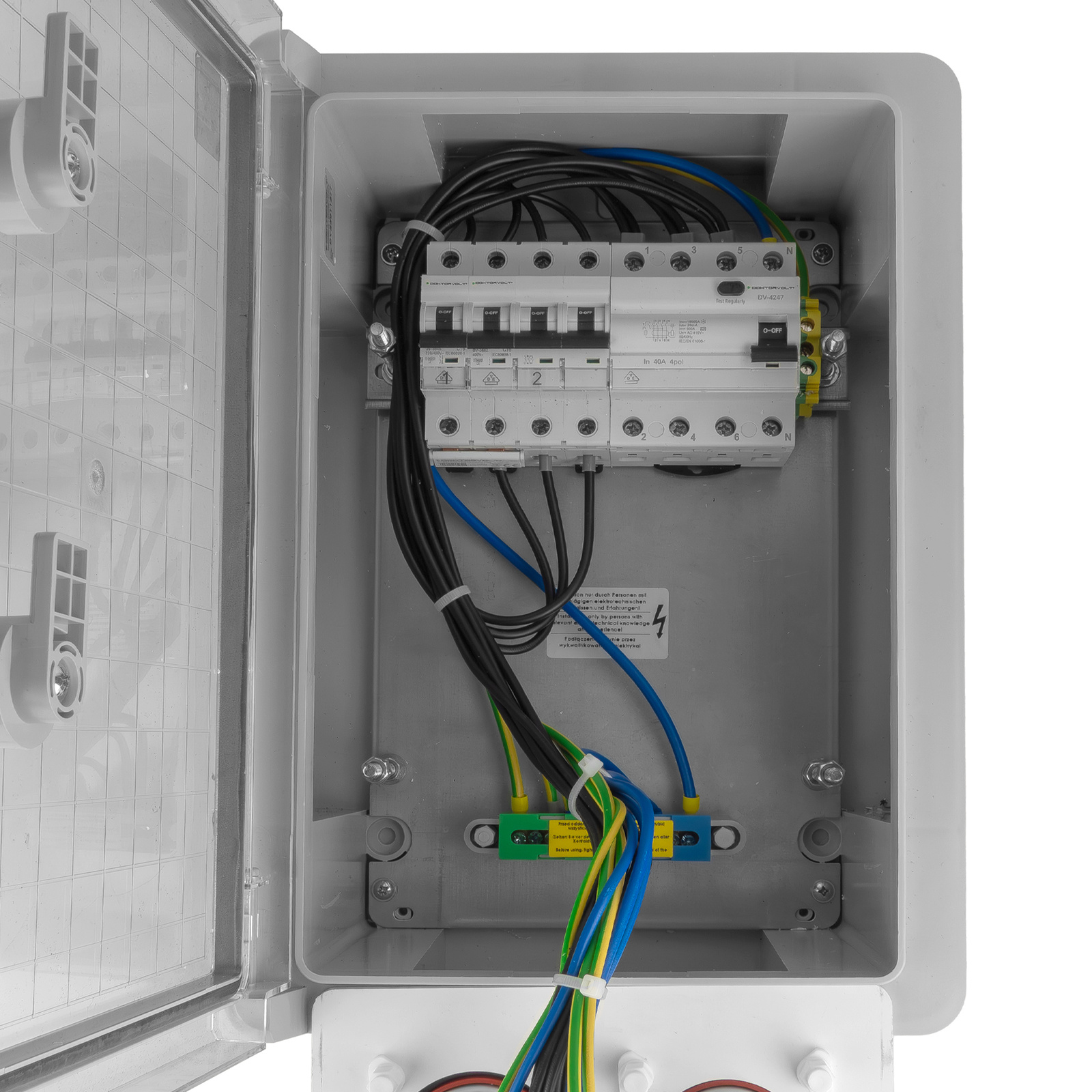

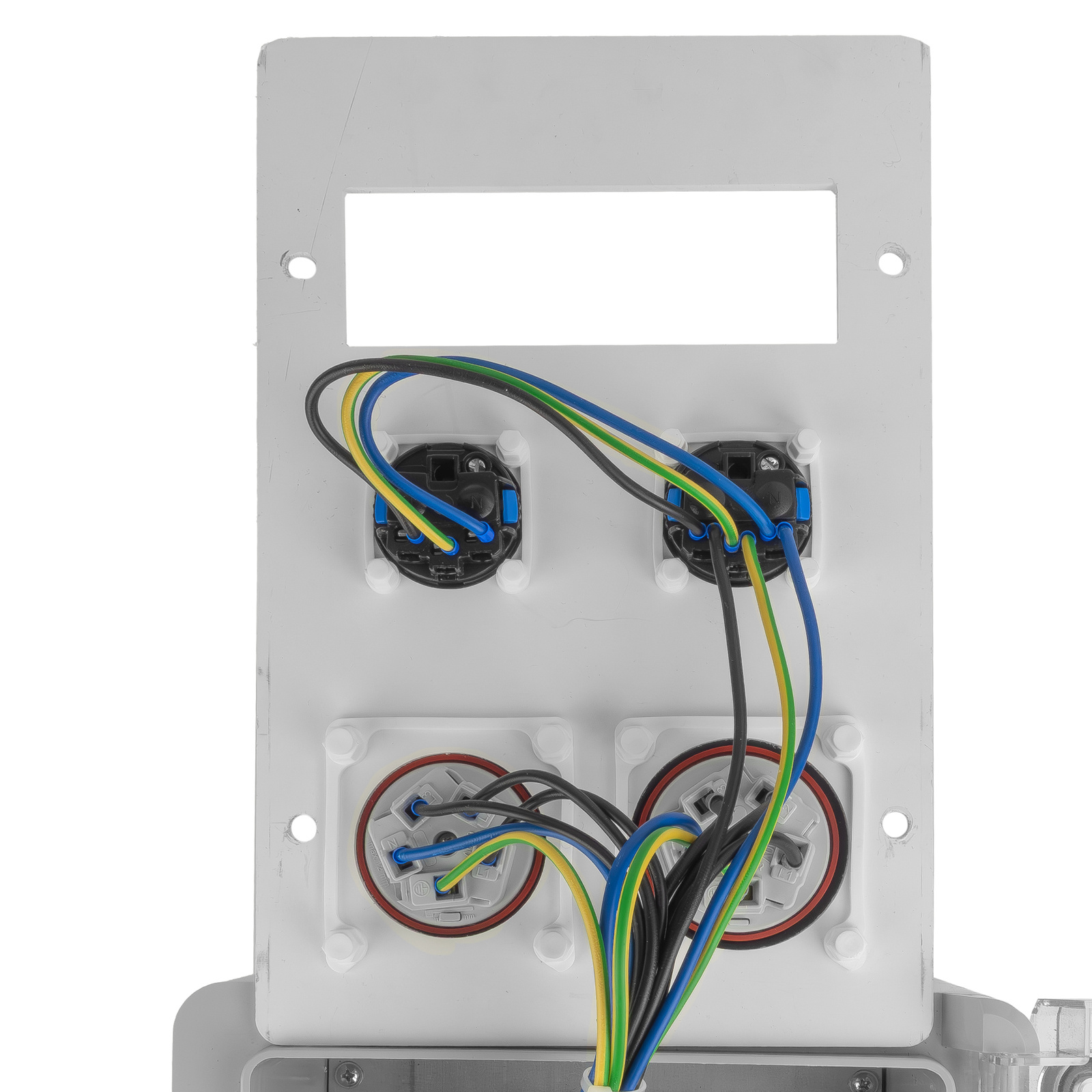

Internal switchboard wiring:
230V 16A socket circuits: H07V-K 3×2.5mm²
CEE socket circuit 400V 16A H07V-K 5×2.5mm²
400V 32A CEE socket circuit: H07V-K 5×4 mm²
Internal connections within the switchboard: H07V-K 6mm², blue / green-yellow
Markings: CE
Switchboard standards: PN-EN 61439-1, PN-EN 61439-3
Certification = a guarantee of quality:
IP rating = greater safety:
– is fully protected against the ingress of dust
– is protected against water jets from any direction
A trusted manufacturer:
Doktorvolt® was founded in 2013. This rapidly growing company has established itself on both the Polish and international markets. The company's headquarters are located in Malichów in the Opole Province, where it operates a modern production hall and warehouse. The company specialises in the manufacture of construction switchboards, distinguishing itself through quality and reliability. Each switchboard is constructed from high-quality components. The products comply with the safety standards and regulations in force within the European Union.
