JUN CEE 32A, 16A and 3 x 16A 230V Doktorvolt construction switchboard. IP44 enclosure, pre-wired, ideal for construction, industry and temporary installations. Reliable power supply in harsh conditions

JUN SERIES | DV-6849-F | EAN: 5907589336849

Technical specifications

Weight 5 kg
Enclosure material

Plastic
CEE voltage

400V
Socket type

Type E (with grounding pin)
CEE current rating

16A, 32A
CEE Number of poles (modules)

5P
Fuses

No protection

Construction power distribution unit 32A 16A CEE sockets 3x230V Type E sockets Doktorvolt

This construction distribution board is a practical and safe solution for both professional and DIY use. It is equipped with sockets featuring an earth pin and two CEE sockets. It is ideal for use in both a home garage and on a building site.

Ready-to-connect distribution board

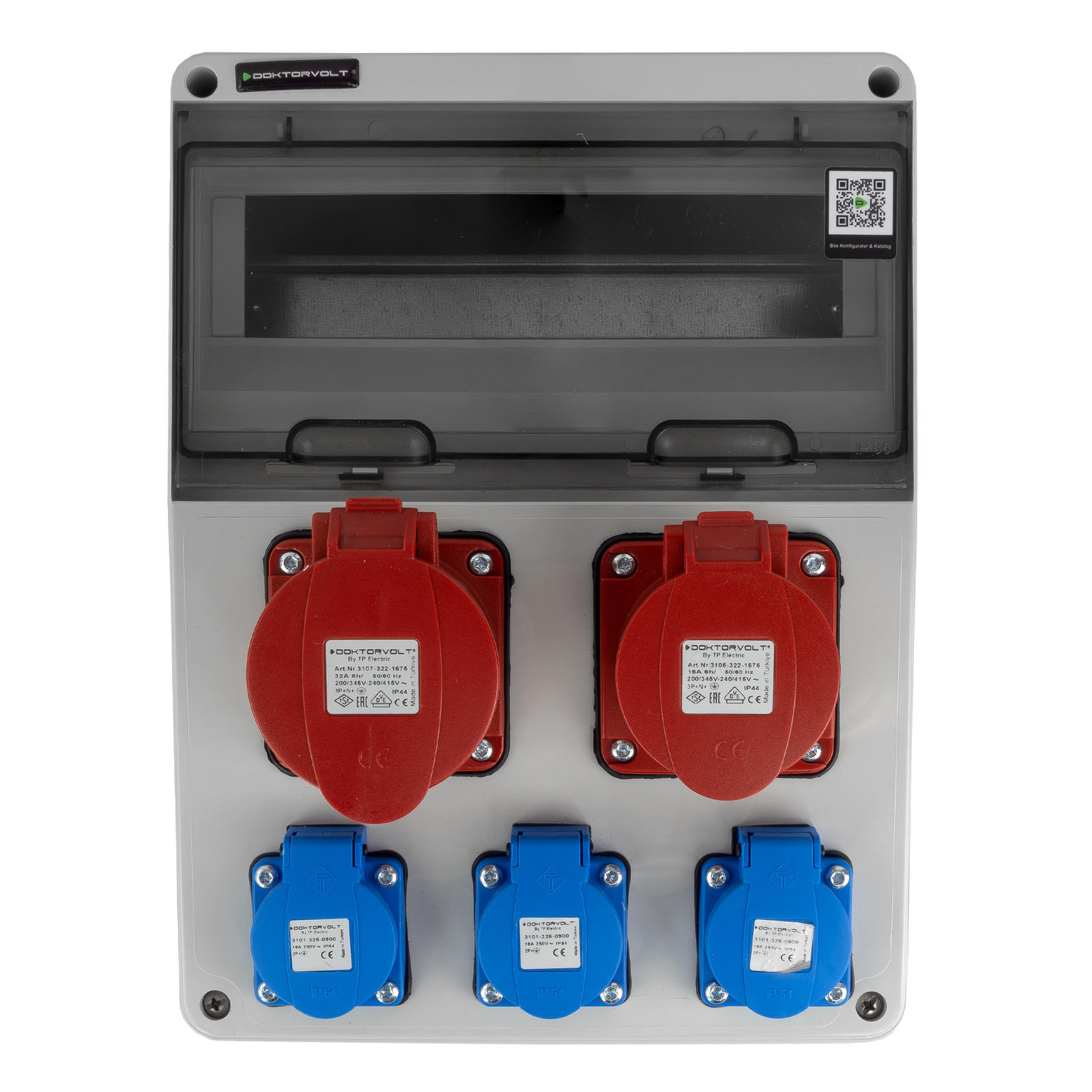

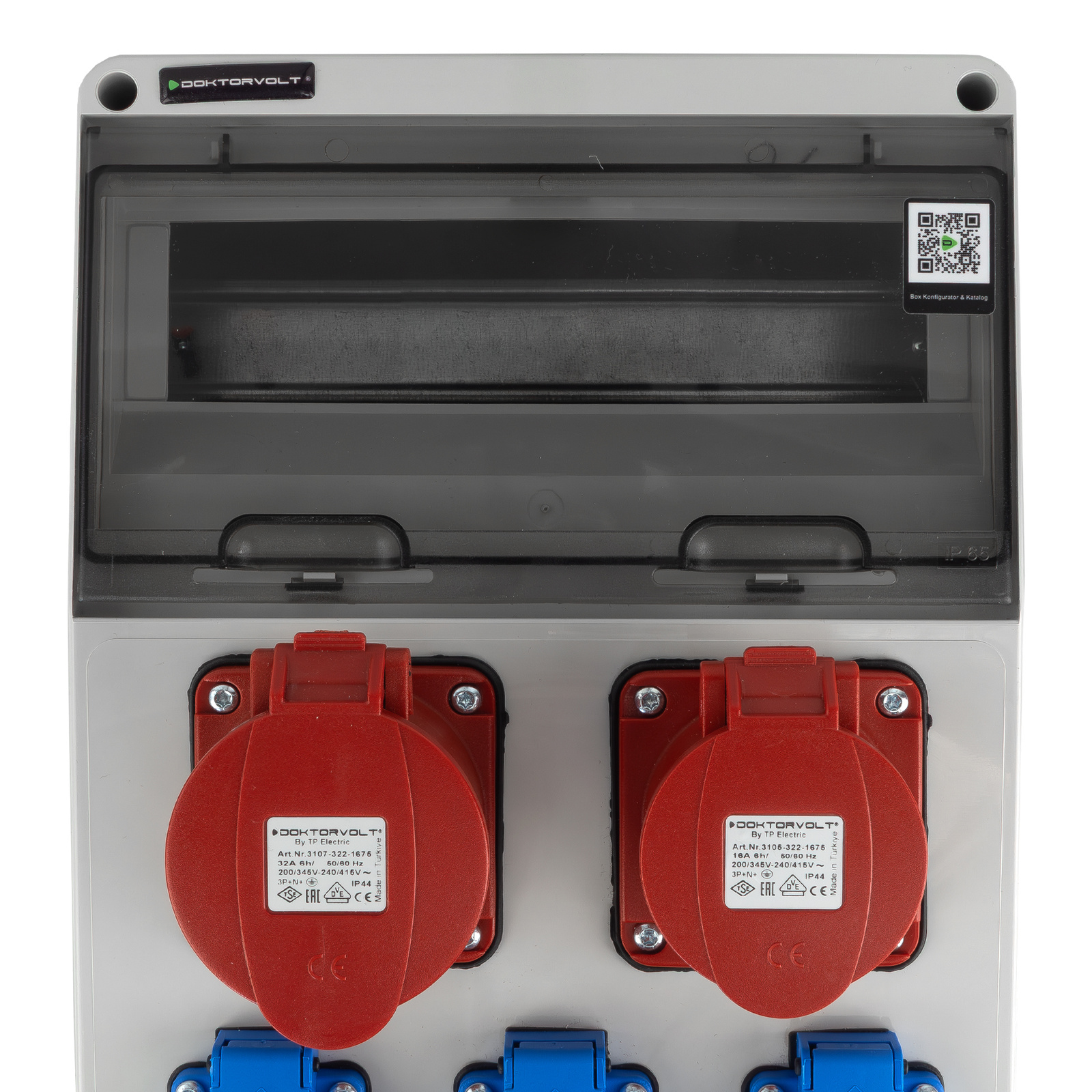

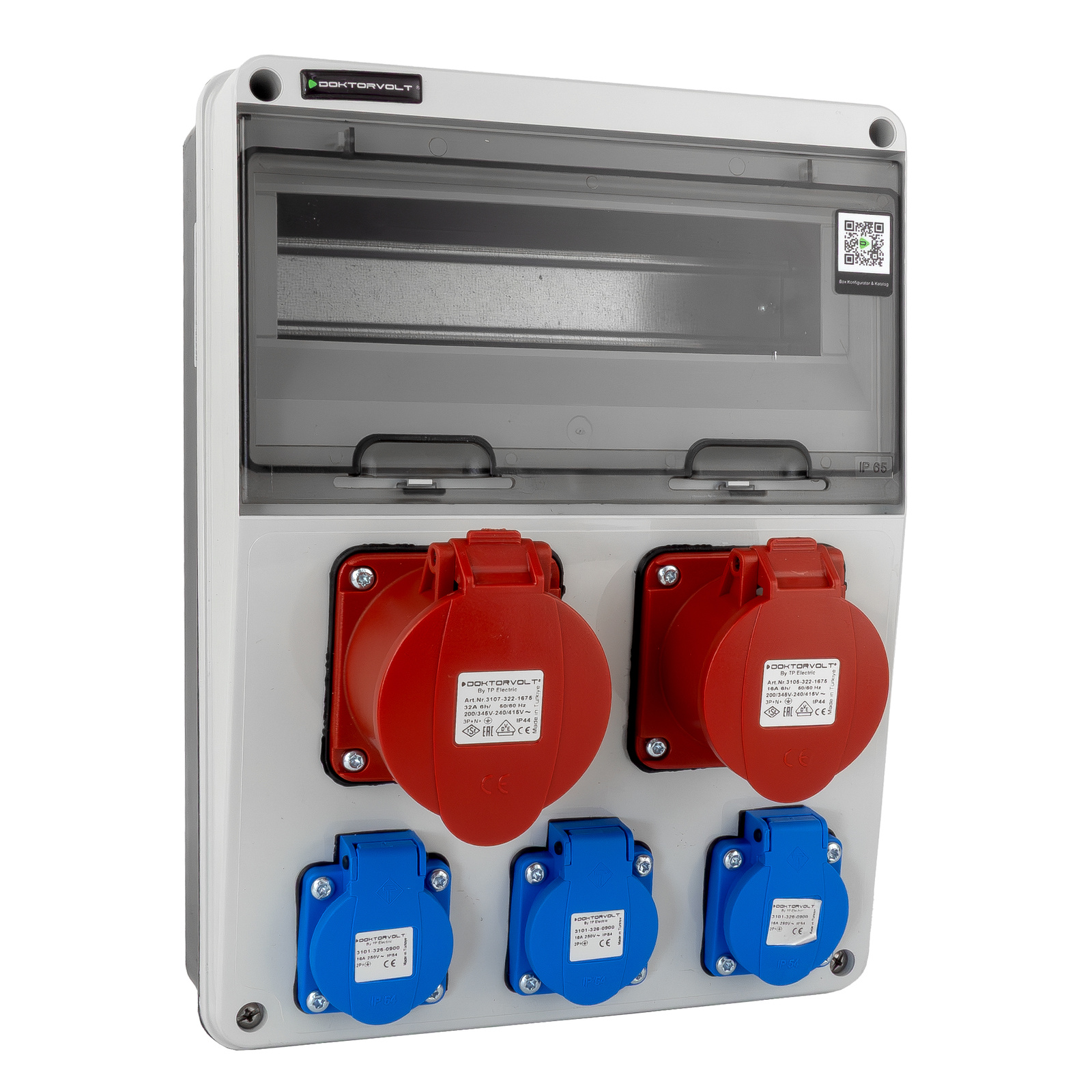

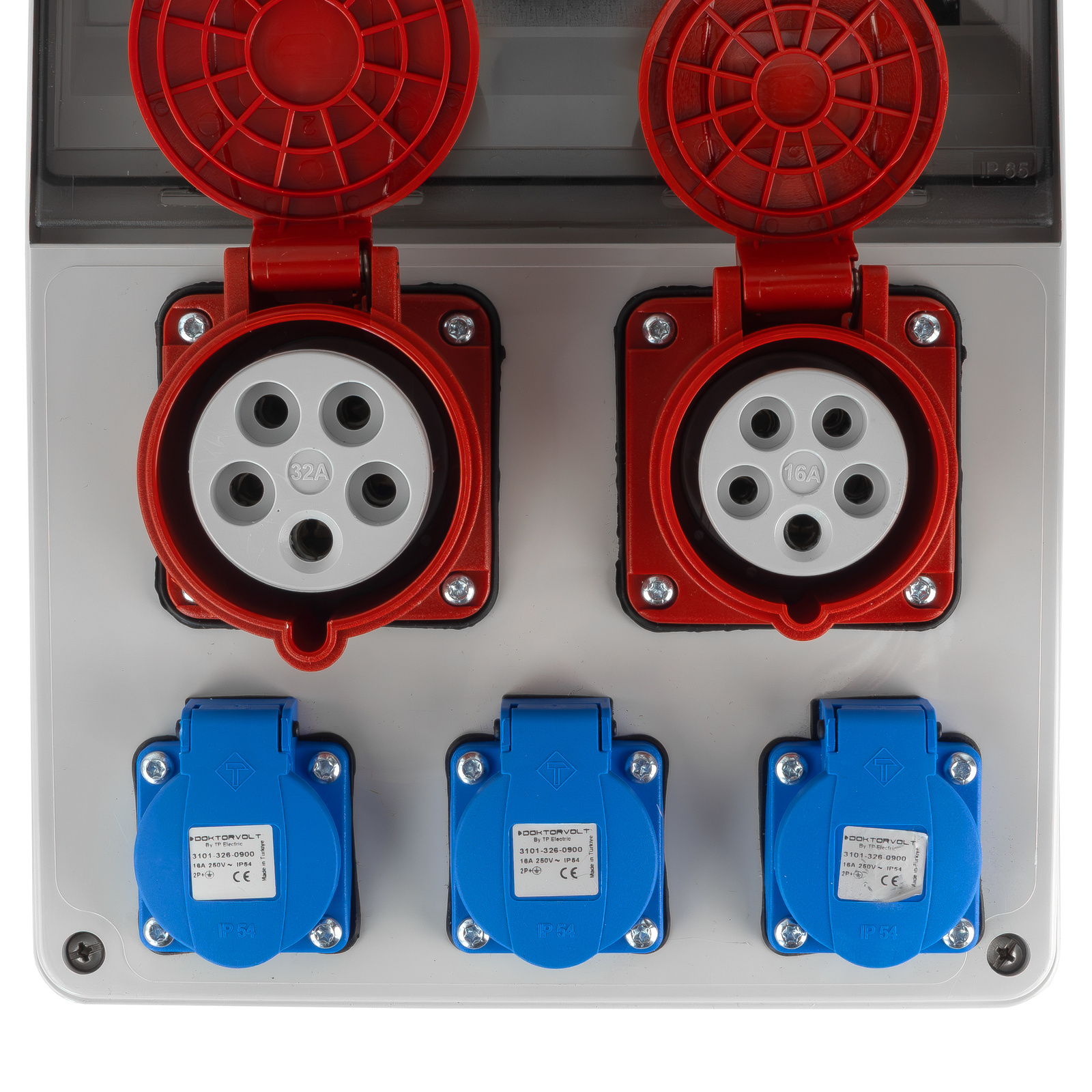

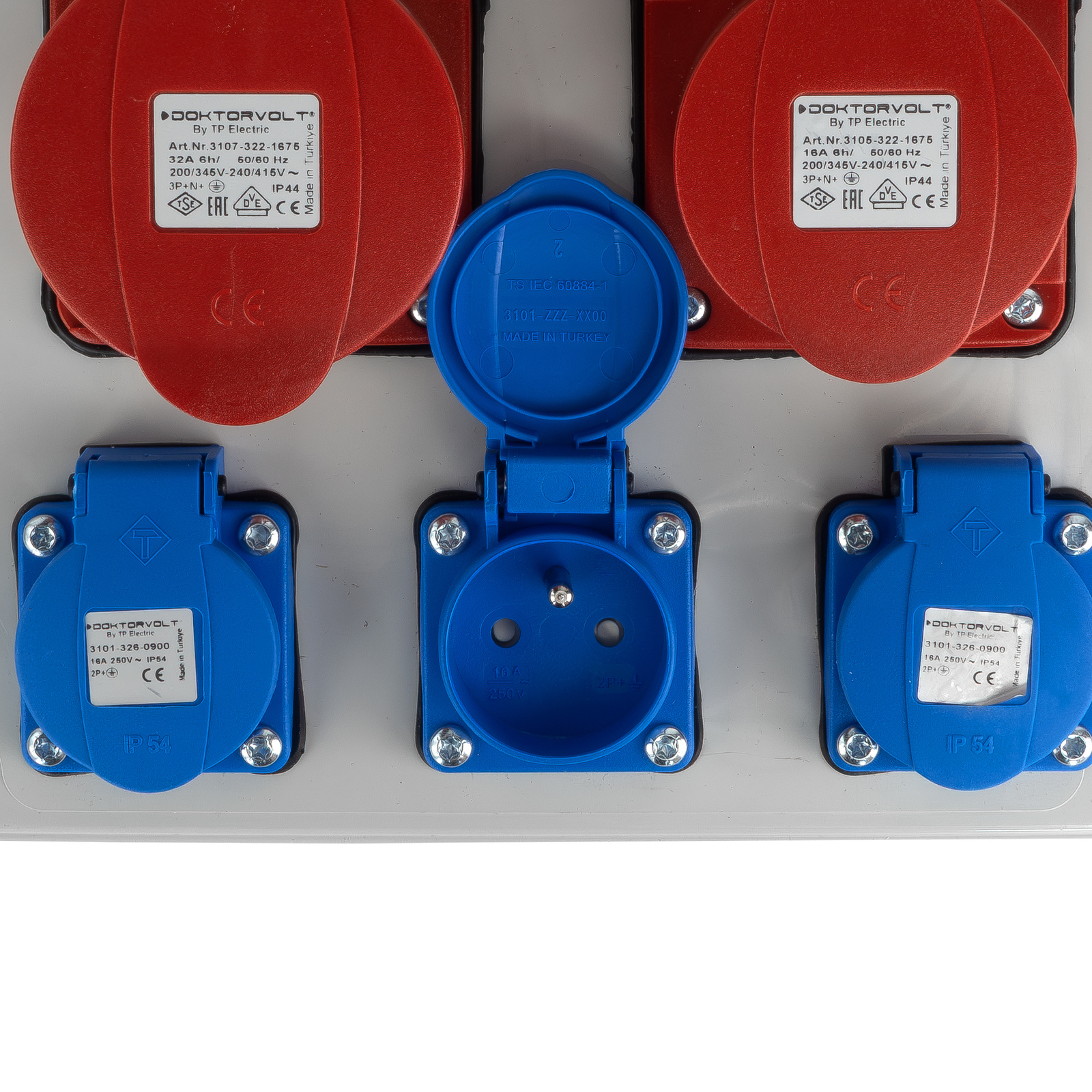

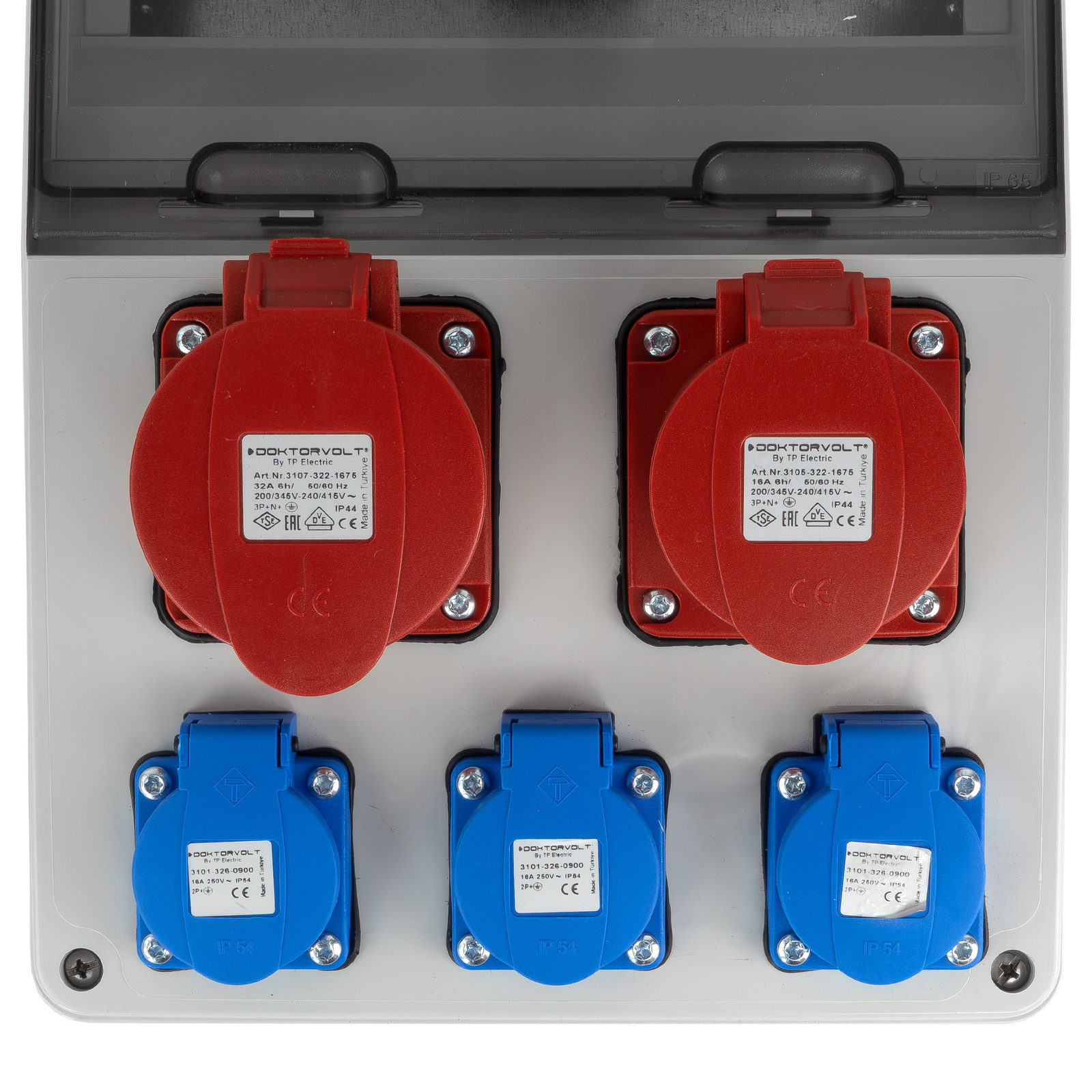

The construction distribution board is fitted with two CEE sockets, one 16A and one 32A. The set includes three 16A 230V sockets with earth pins. It is a compact and functional solution that ensures convenient connection of equipment.

Convenient operation of the distribution board

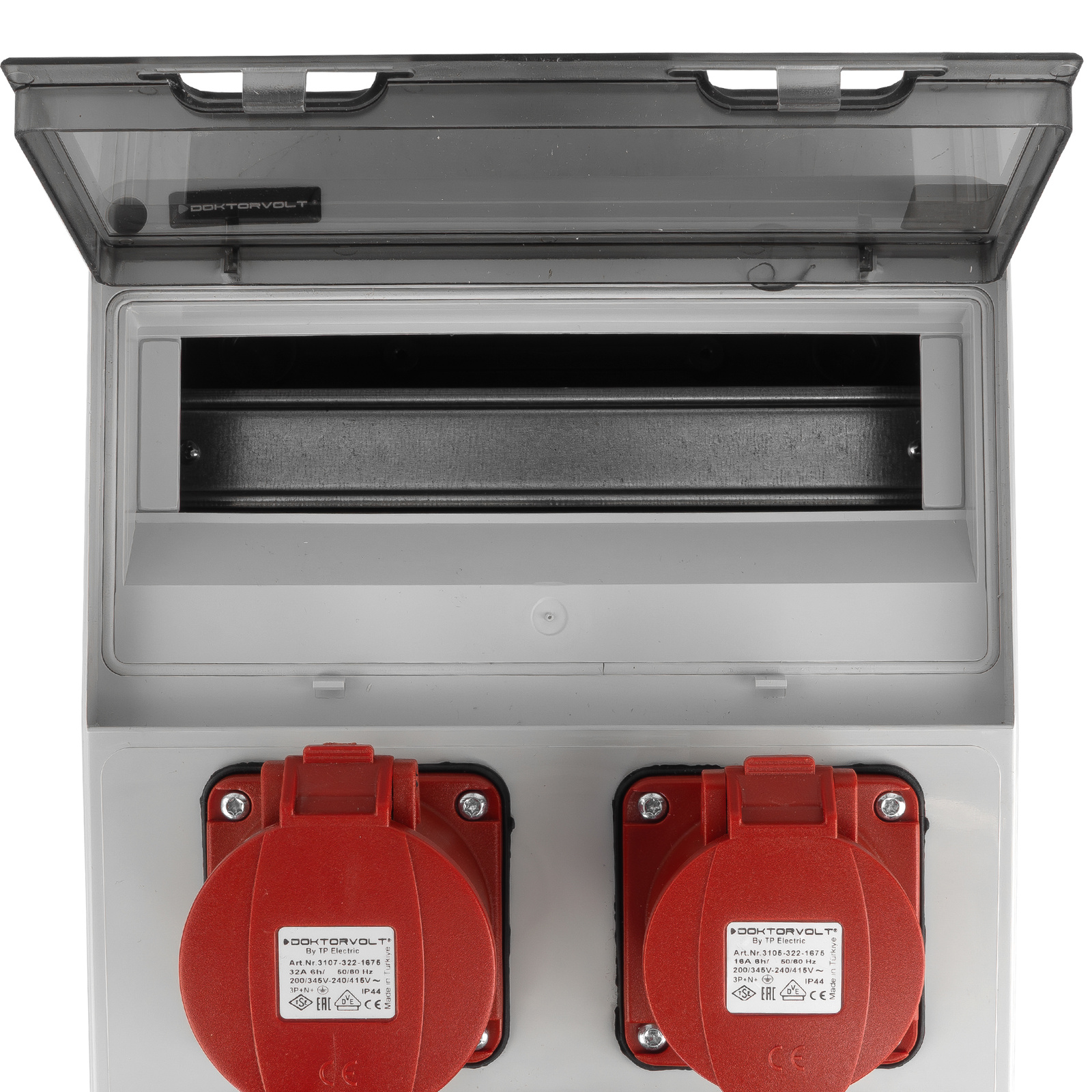

Thanks to its high-quality enclosure, the unit guarantees durability, watertightness and resistance to harsh outdoor conditions. The Erbetka is fitted with a 12-module inspection panel, facilitating maintenance and system upgrades.

Technical Specifications

General Information

Model: DV-6849-F

EAN: 5907589336849

Product series designation: JUN

Manufacturer: DOKTORVOLT

Obraz 1

Sockets and Electrical Specifications

Sockets:
3 x 230V 16A with earth pin, IP54, TPE
1 x 400V 16A 5-pin CEE IP44 TPE
1 x 400V 32A 5-pin CEE IP44 TPE

Rated voltage: 230/400V AC

Rated current: 32A

RDF: 0.7

Obraz 2

Housing and Technical Specifications

Housing dimensions (excluding sockets): 246x325x115mm

Housing material: ABS/PC

Colour of front/rear housing panels: Grey/black

Ambient temperature: -25 to +60 °C

Protection against ingress of foreign solid objects and water: IP44

UV resistance: Yes

Number of modules: 12

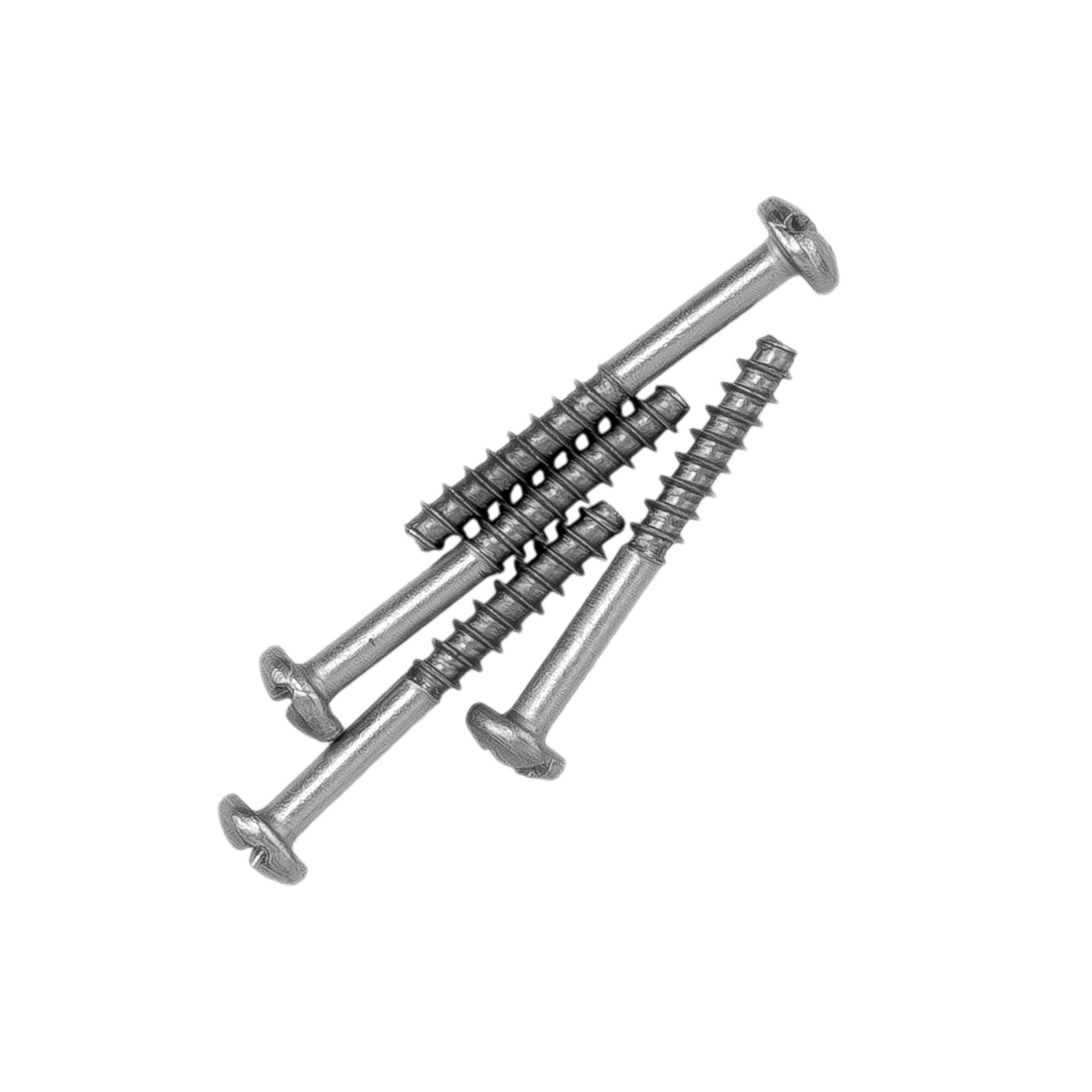

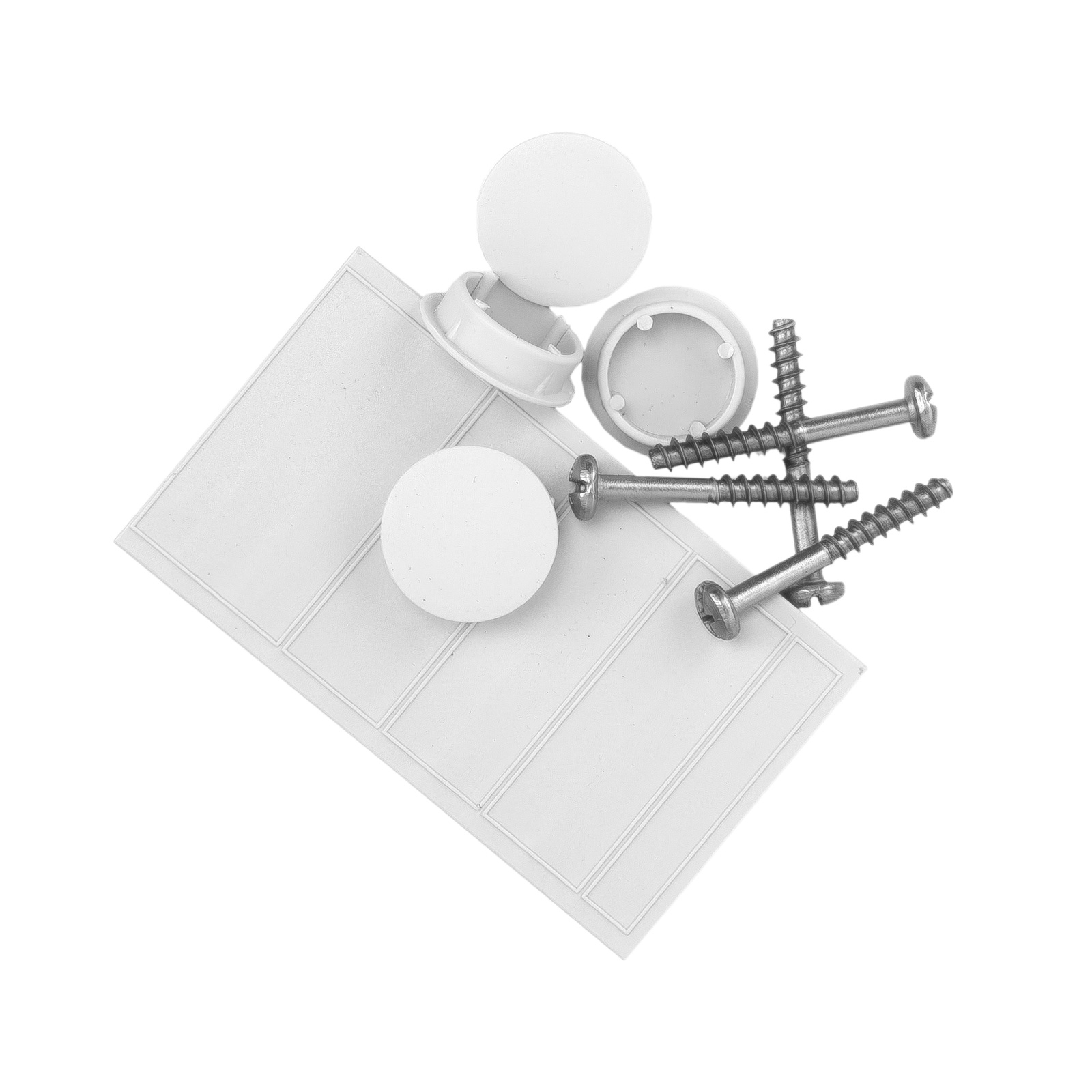

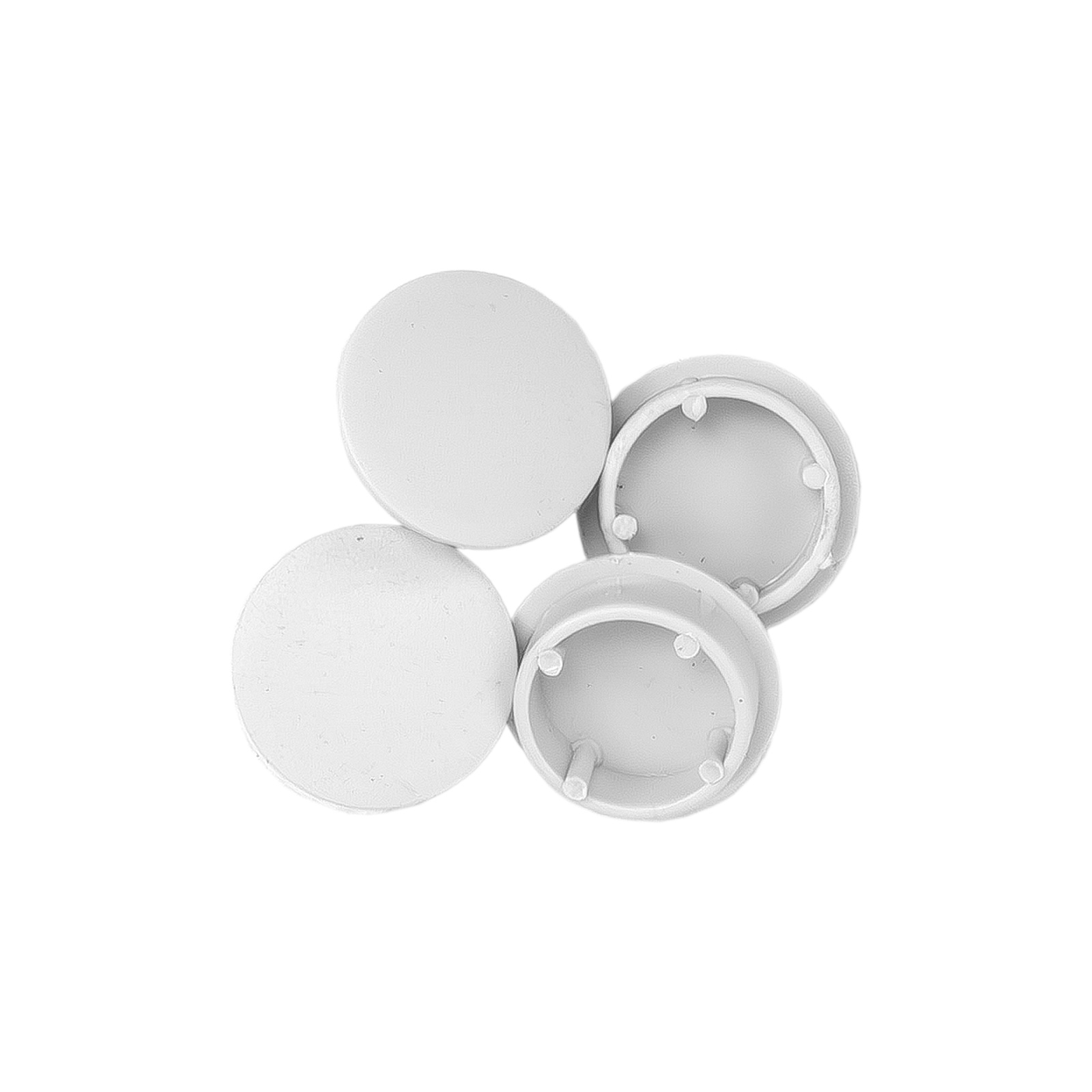

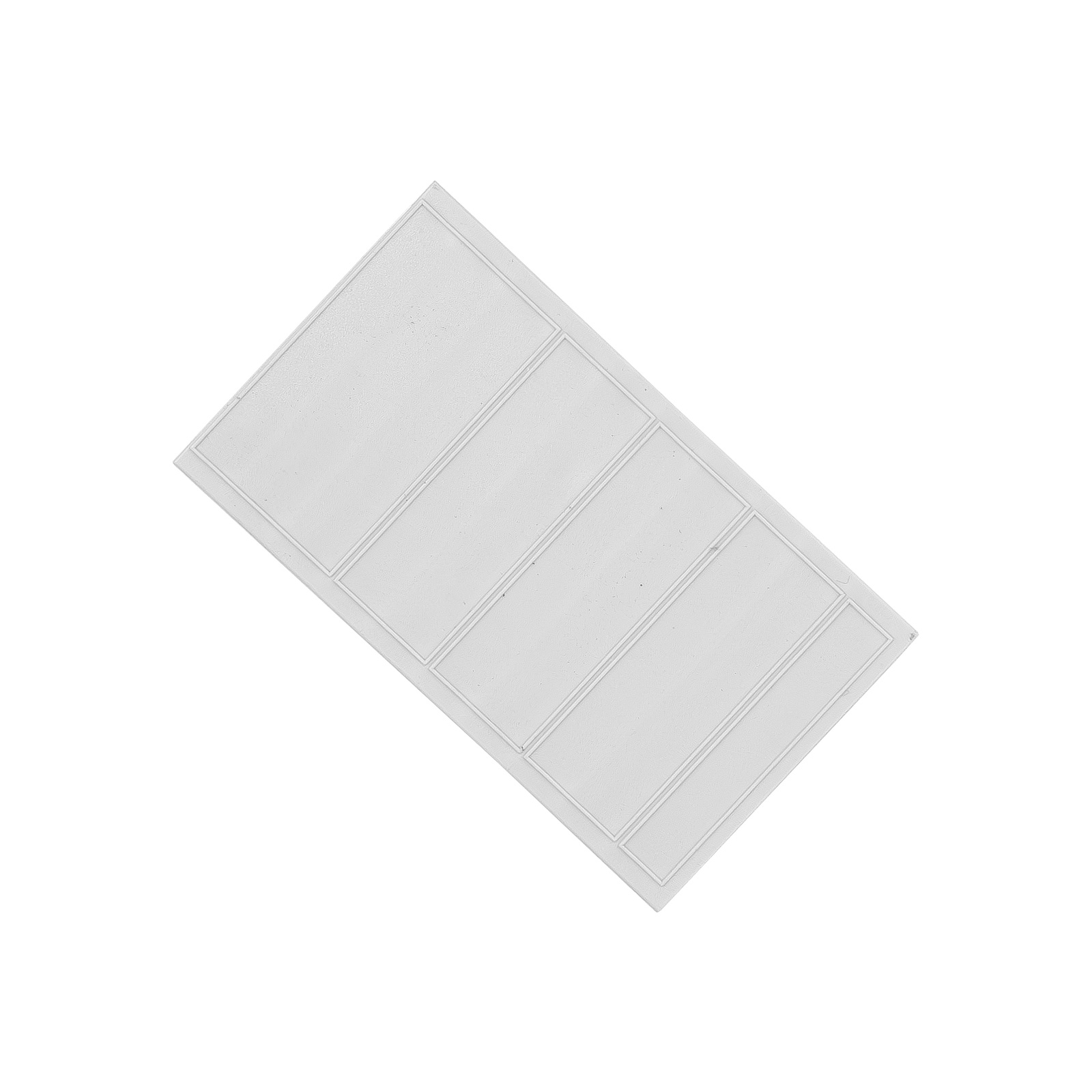

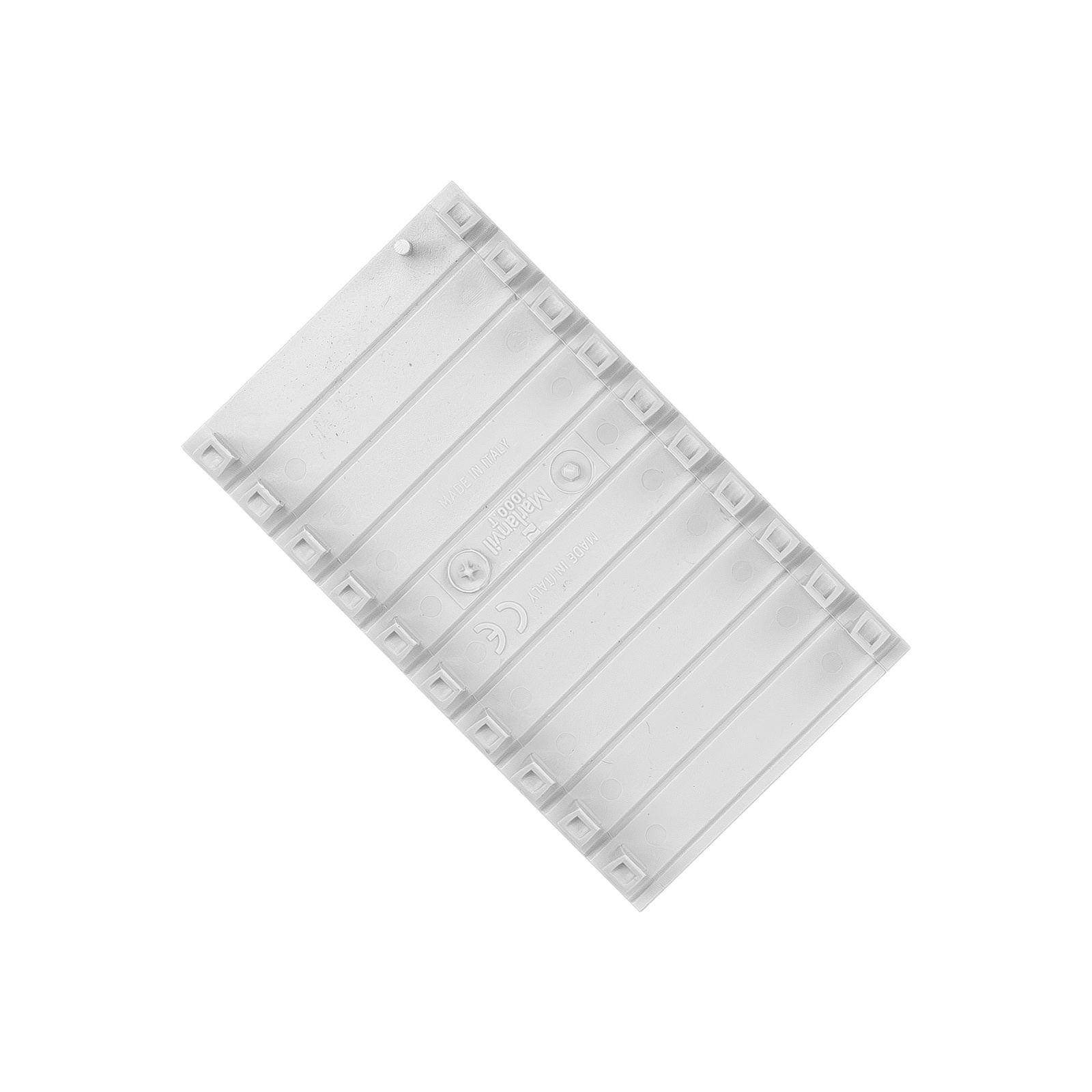

Accessories included in the set: Blind plugs, mounting pins, cover strip

Obraz 3

Wiring and Standards

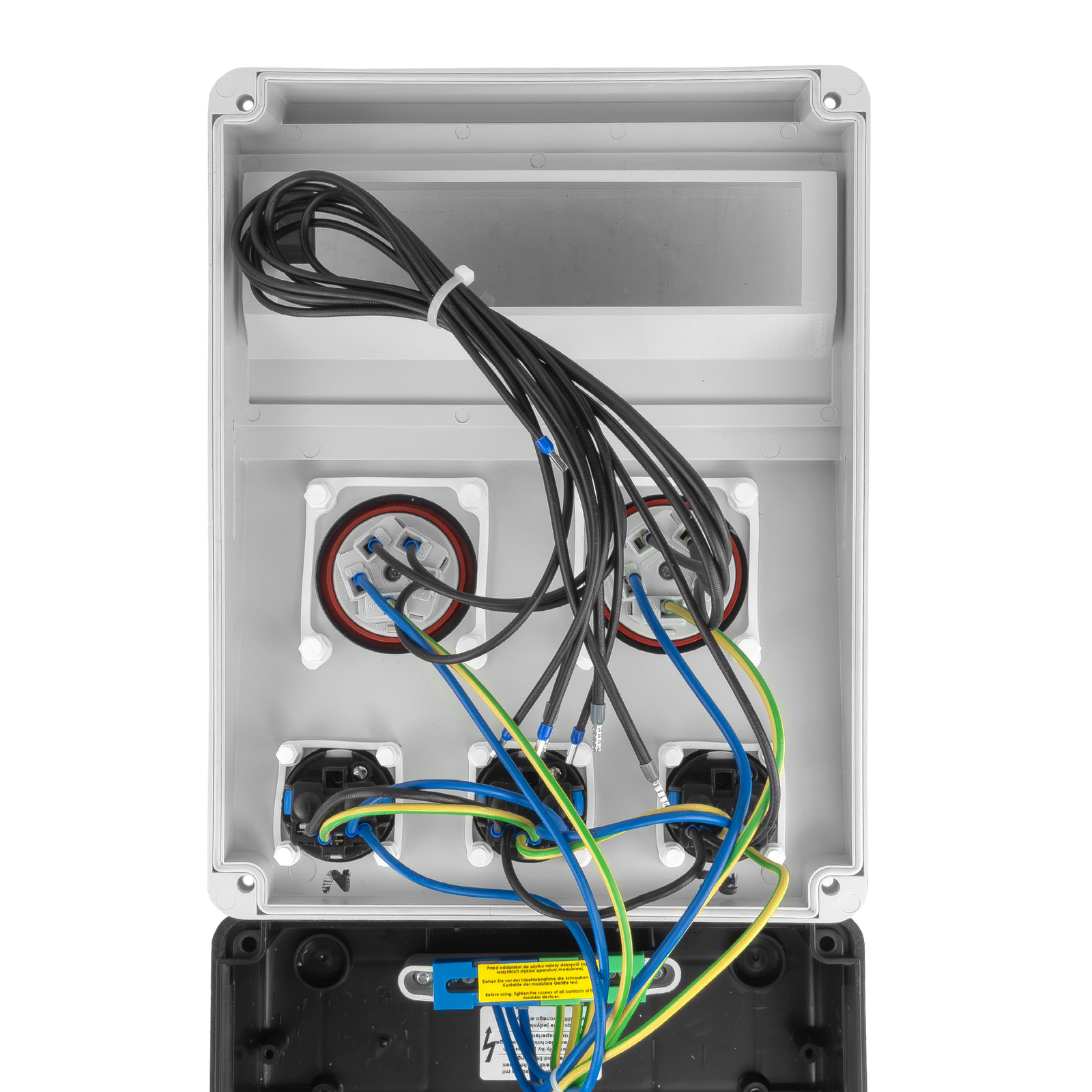

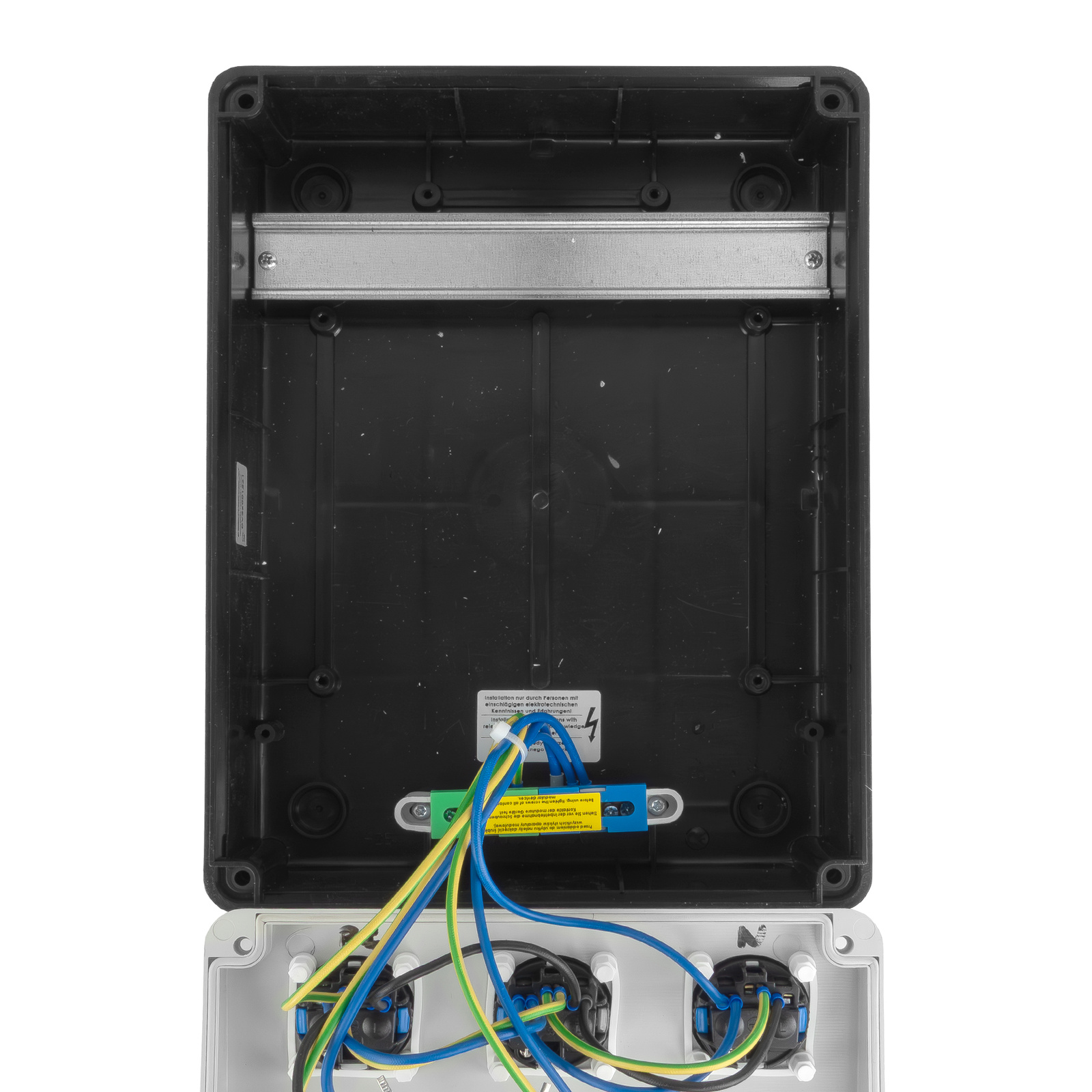

Internal switchboard cabling:
Protective conductors: H07V-K, 2.5 mm², 4 mm² yellow-green
Neutral cables: H07V-K, 2.5 mm², 4 mm² blue
Supply cables: H07V-K, 2.5 mm², 4 mm² black

Standards and certificates:
TÜV SÜD, ISO 9001:2015, CE, IEC 61439

Obraz 4

Certification = a guarantee of quality:

DOKTORVOLT products are routinely tested to ensure the highest quality. Once a product has passed these tests, it receives an individual certificate confirming that it has undergone quality control. The company uses a TÜV SÜD-certified system in its production process, which attests to its high quality.

IP rating = greater safety:

The IP rating is an international standard specifying the extent to which an item is resistant to potential hazards. It consists of two digits, which indicate the product’s dust resistance and water resistance. Knowing the IP rating allows you to use the product safely and with confidence. An IP44 rating tells us that the device:
– is protected against the ingress of objects larger than 1 mm
– is protected against water splashing from various directions

A trusted manufacturer:

Doktorvolt® was founded in 2013. This rapidly growing company has established itself on both the Polish and international markets. The company’s headquarters are located in Malichów in the Opole Voivodeship, where it operates a modern production hall and warehouse. The company specialises in the manufacture of construction switchboards, distinguishing itself through quality and reliability. Each switchboard is constructed from high-quality components. The products comply with the safety standards and regulations in force within the European Union.

Doktorvolt Logo


Construction power distribution unit 32A 16A CEE sockets 3x230V Type E sockets Doktorvolt

This construction distribution board is a practical and safe solution for both professional and DIY use. It is equipped with sockets featuring an earth pin and two CEE sockets. It is ideal for use in both a home garage and on a building site.

Ready-to-connect distribution board

The construction distribution board is fitted with two CEE sockets, one 16A and one 32A. The set includes three 16A 230V sockets with earth pins. It is a compact and functional solution that ensures convenient connection of equipment.

Convenient operation of the distribution board

Thanks to its high-quality enclosure, the unit guarantees durability, watertightness and resistance to harsh outdoor conditions. The Erbetka is fitted with a 12-module inspection panel, facilitating maintenance and system upgrades.

Technical Specifications

General Information

Model: DV-6849-F

EAN: 5907589336849

Product series designation: JUN

Manufacturer: DOKTORVOLT

Obraz 1

Sockets and Electrical Specifications

Sockets:
3 x 230V 16A with earth pin, IP54, TPE
1 x 400V 16A 5-pin CEE IP44 TPE
1 x 400V 32A 5-pin CEE IP44 TPE

Rated voltage: 230/400V AC

Rated current: 32A

RDF: 0.7

Obraz 2

Housing and Technical Specifications

Housing dimensions (excluding sockets): 246x325x115mm

Housing material: ABS/PC

Colour of front/rear housing panels: Grey/black

Ambient temperature: -25 to +60 °C

Protection against ingress of foreign solid objects and water: IP44

UV resistance: Yes

Number of modules: 12

Accessories included in the set: Blind plugs, mounting pins, cover strip

Obraz 3

Wiring and Standards

Internal switchboard cabling:
Protective conductors: H07V-K, 2.5 mm², 4 mm² yellow-green
Neutral cables: H07V-K, 2.5 mm², 4 mm² blue
Supply cables: H07V-K, 2.5 mm², 4 mm² black

Standards and certificates:
TÜV SÜD, ISO 9001:2015, CE, IEC 61439

Obraz 4

Certification = a guarantee of quality:

DOKTORVOLT products are routinely tested to ensure the highest quality. Once a product has passed these tests, it receives an individual certificate confirming that it has undergone quality control. The company uses a TÜV SÜD-certified system in its production process, which attests to its high quality.

IP rating = greater safety:

The IP rating is an international standard specifying the extent to which an item is resistant to potential hazards. It consists of two digits, which indicate the product’s dust resistance and water resistance. Knowing the IP rating allows you to use the product safely and with confidence. An IP44 rating tells us that the device:
– is protected against the ingress of objects larger than 1 mm
– is protected against water splashing from various directions

A trusted manufacturer:

Doktorvolt® was founded in 2013. This rapidly growing company has established itself on both the Polish and international markets. The company’s headquarters are located in Malichów in the Opole Voivodeship, where it operates a modern production hall and warehouse. The company specialises in the manufacture of construction switchboards, distinguishing itself through quality and reliability. Each switchboard is constructed from high-quality components. The products comply with the safety standards and regulations in force within the European Union.

Doktorvolt Logo
