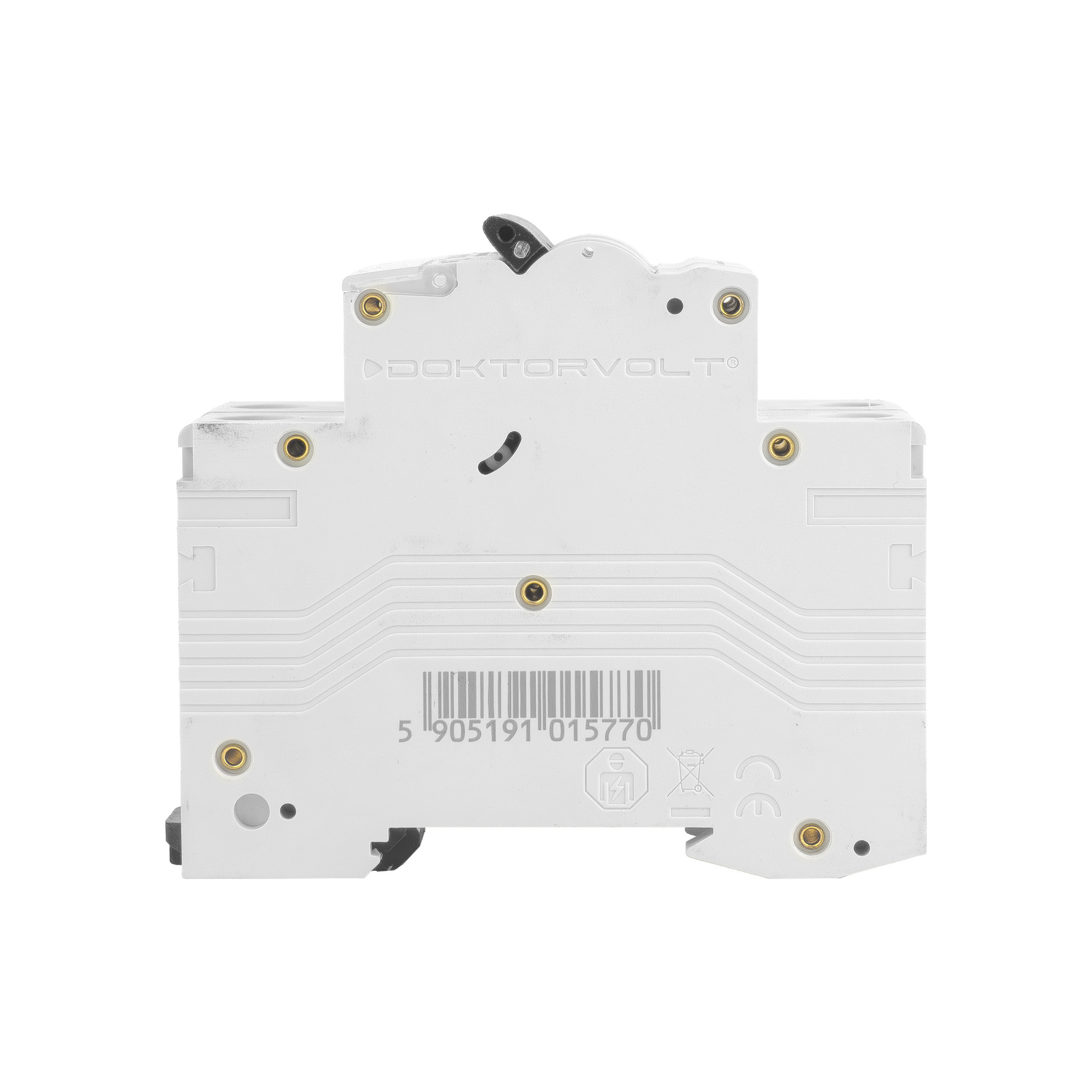

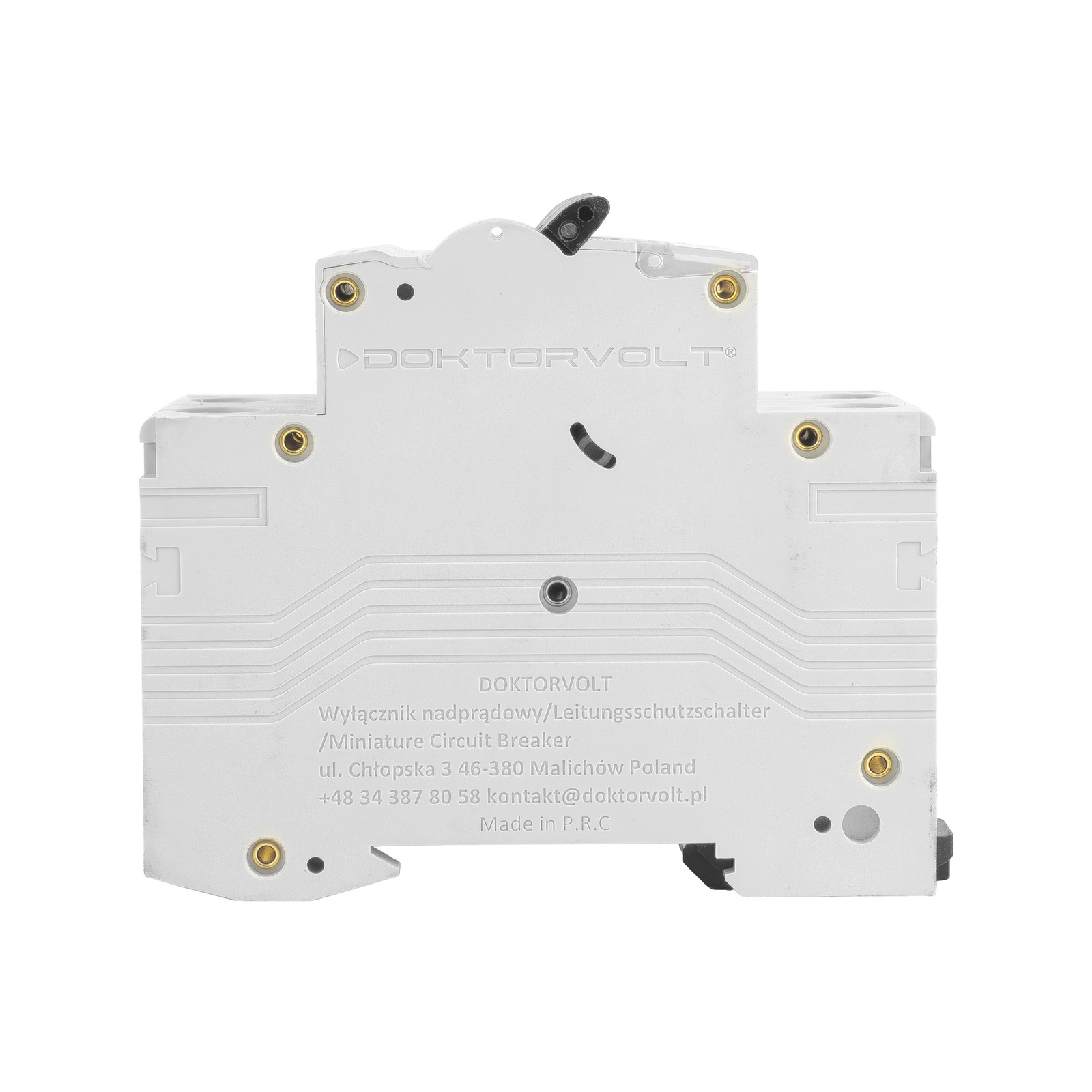

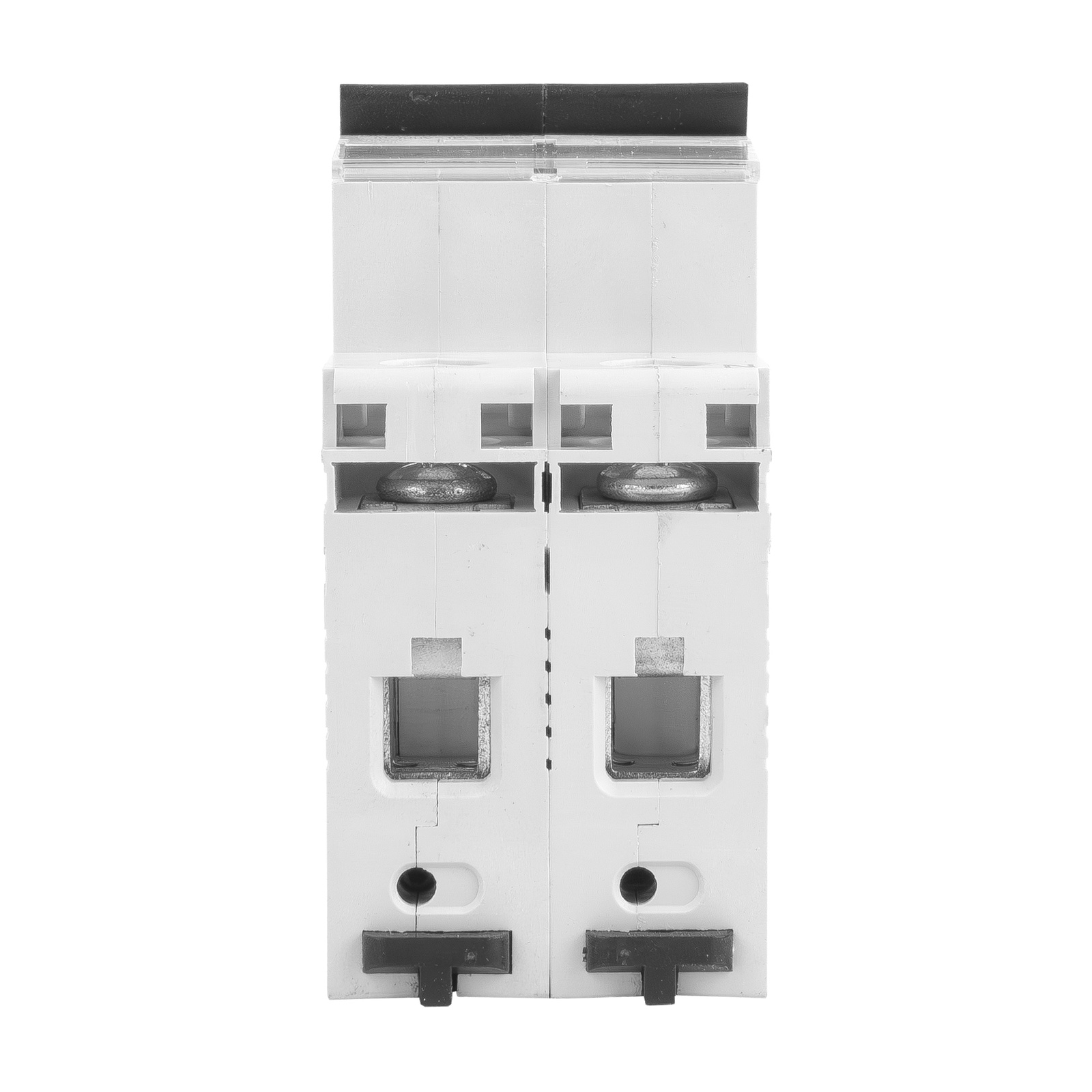

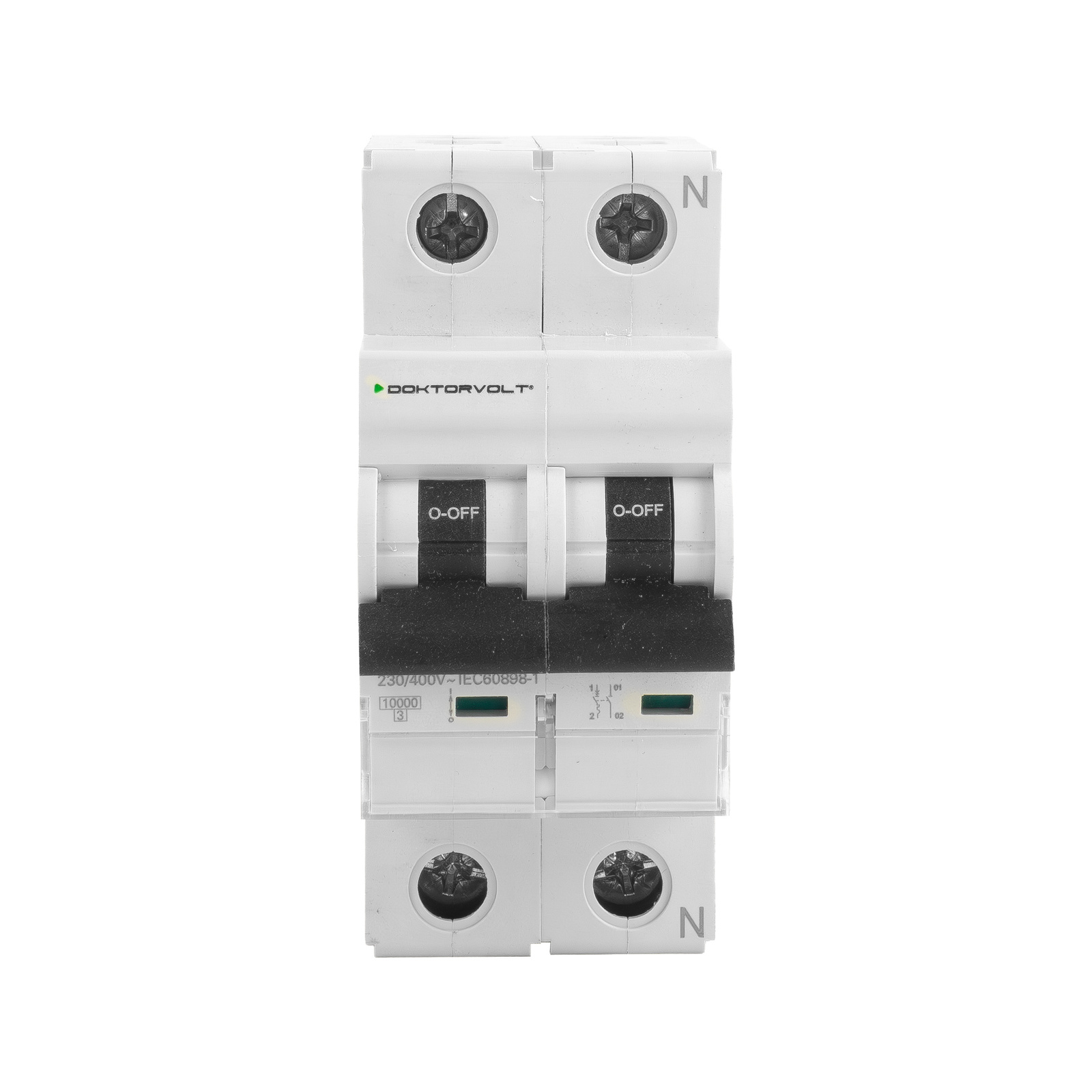

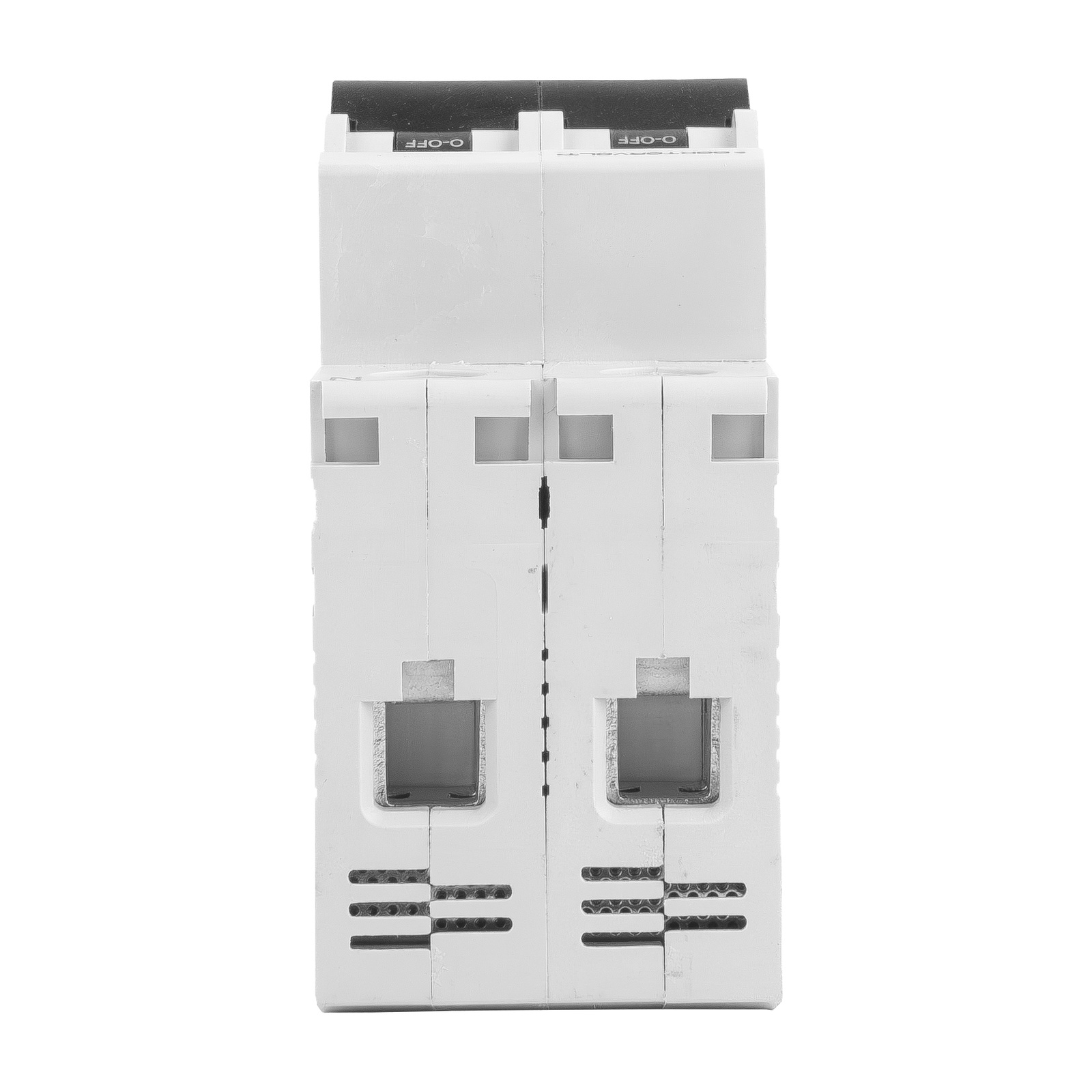

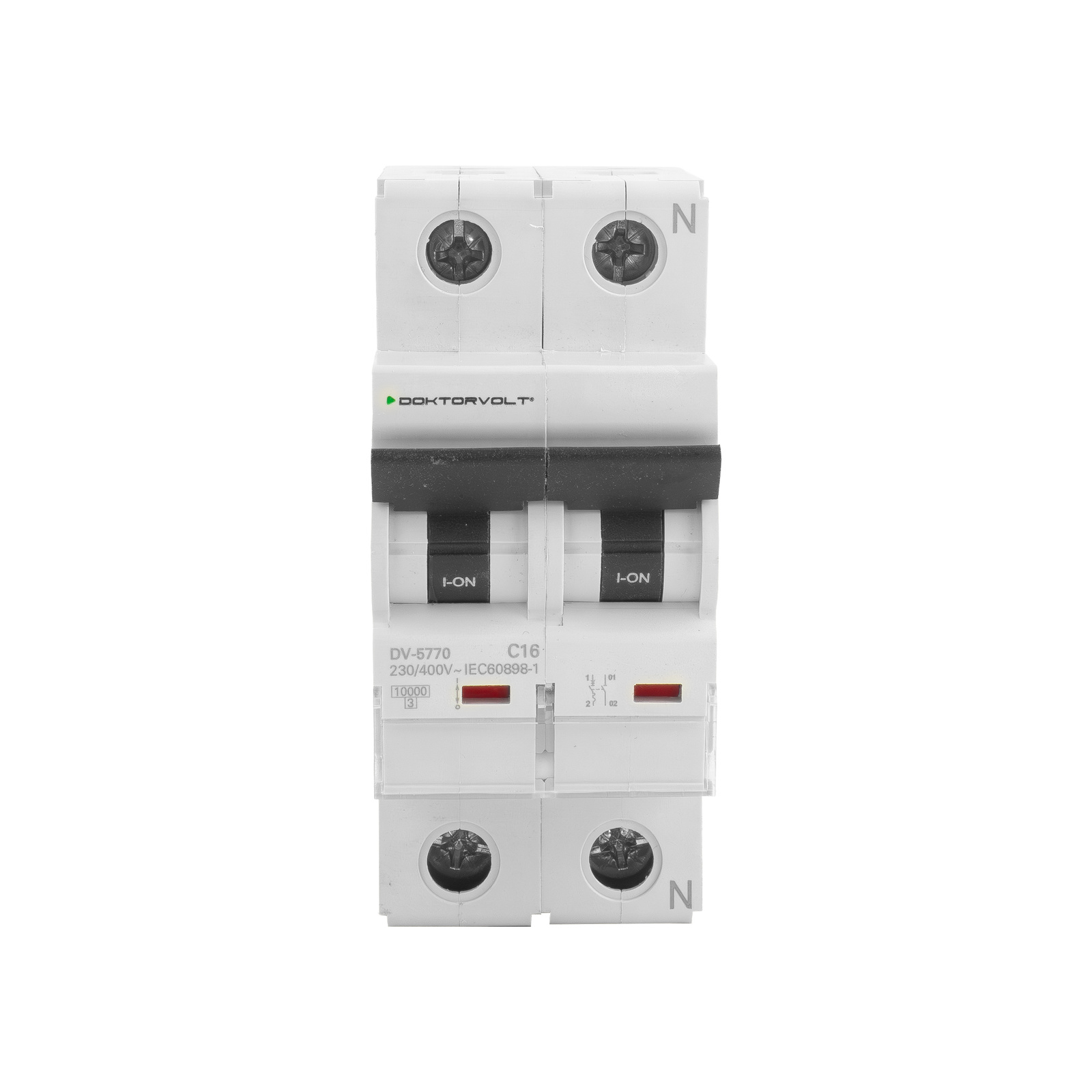

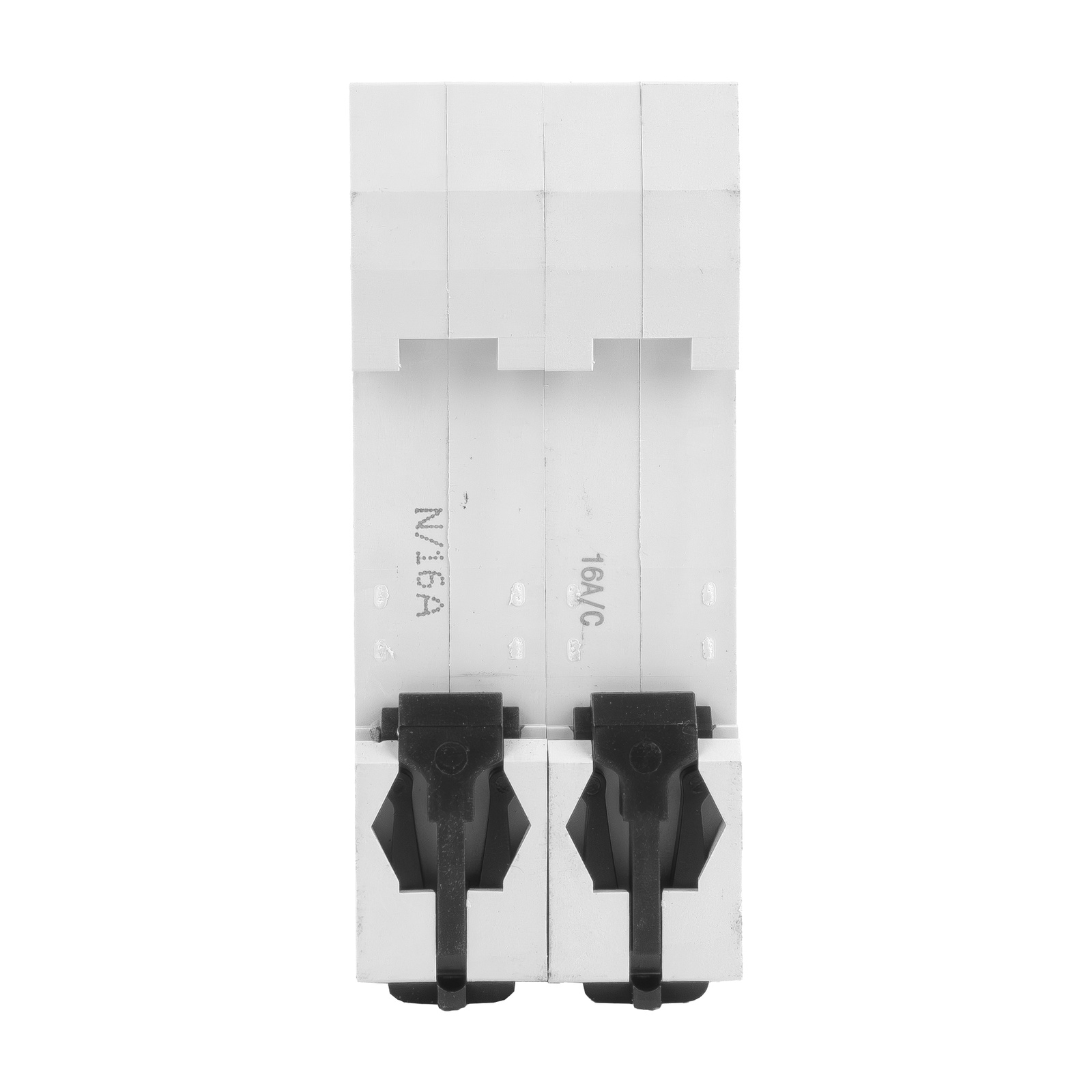

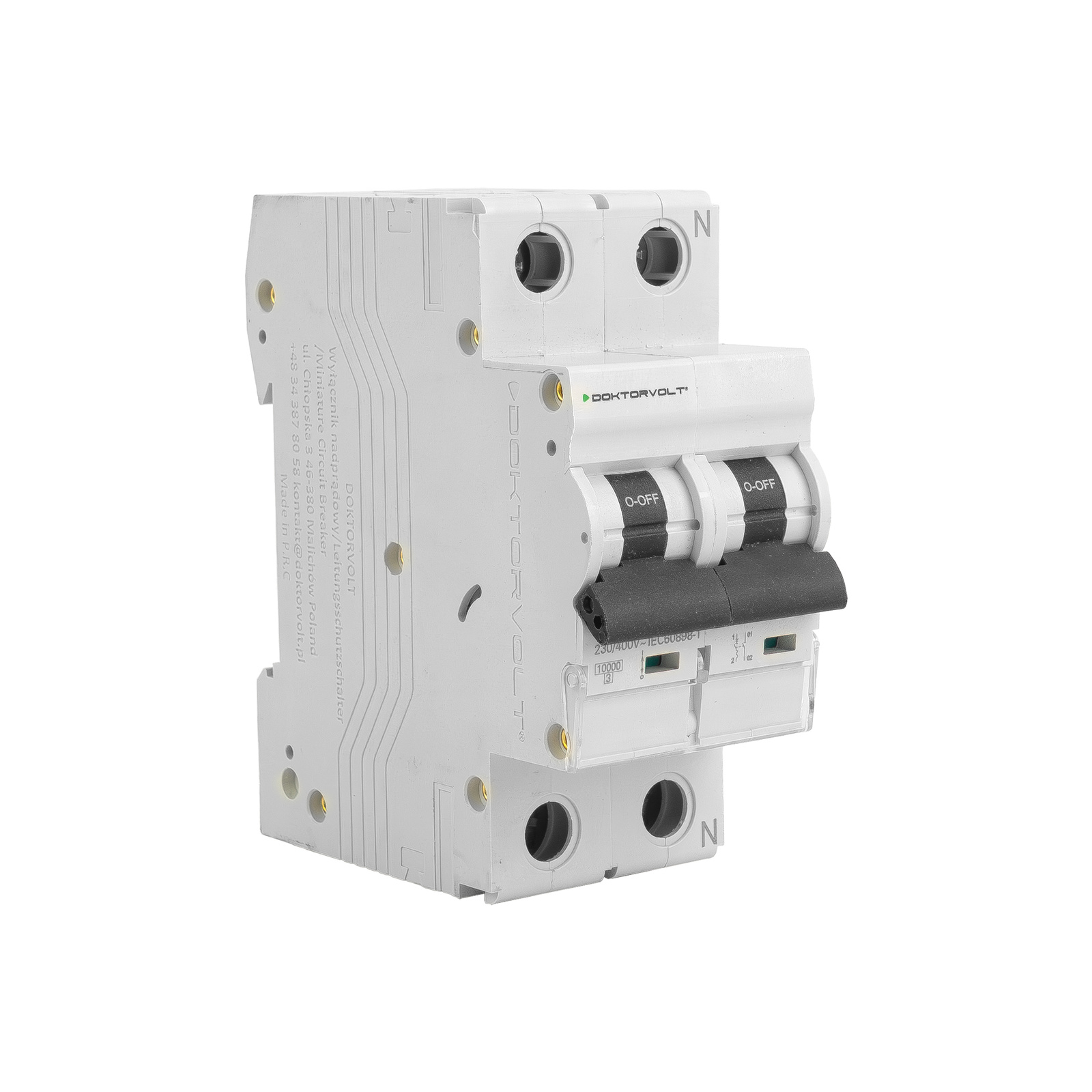

10kA 2-pole 16A C16 miniature circuit breaker (MCB) Doktorvolt DV-5770
An overcurrent circuit breaker ensures safety and protects the installation against short circuits and overloads. Made from high-quality materials, it responds to current surges, guaranteeing reliability. Rated up to 10kA.
MINIATURE CIRCUIT BREAKERS 10kA | | EAN: 5905191015770
Technical specifications
MCB 10kA 2P 16A C16 Doktorvolt DV-5770
This circuit breaker is manufactured from the highest quality materials to ensure user safety. Its function is to detect sudden current surges, typical of short circuits, and to trip automatically.
High-quality construction
The DV-5770 circuit breaker, with a rated current of 16A and a voltage of 230V, provides effective protection for electrical installations in industry and the construction sector. The C-type rating means it is designed to protect circuits with higher inrush currents, such as motors, transformers or LED lighting, where delayed tripping in the event of an overload is required. It is equipped with a labelling option, which can be placed under a plastic flap, facilitating identification. Short-circuit current withstand capacity is 10kA.
Technical Specifications
Rated conditional short-circuit current: 10 kA
Rated current: 16 A
Number of poles: 2P
Rated voltage: 230 V
Operating temperature range: -25 to +40
Protection rating: IP20
Installation: 35mm DIN rail
Characteristic: C
Frequency: 50/60 Hz
