RCCB residual current circuit breaker, 10kA, 4-pole, 40A, 30mA, Type A, Doktorvolt DV-5824
A 10kA residual current device (RCD) by Doktorvolt. Made from the highest quality materials. Provides protection against the effects of short circuits.
RESIDUAL CURRENT CIRCUIT BREAKERS TYPE A | | EAN: 5905191015824
Technical specifications
| Weight | 0,218 kg |
|---|
Doktorvolt RCCB Residual Current Circuit Breaker 10kA 4P 40A 30mA
This residual current circuit breaker is manufactured from the highest quality materials to ensure user safety. Its function is to detect any difference in current between the phase and neutral conductors.
High-quality construction

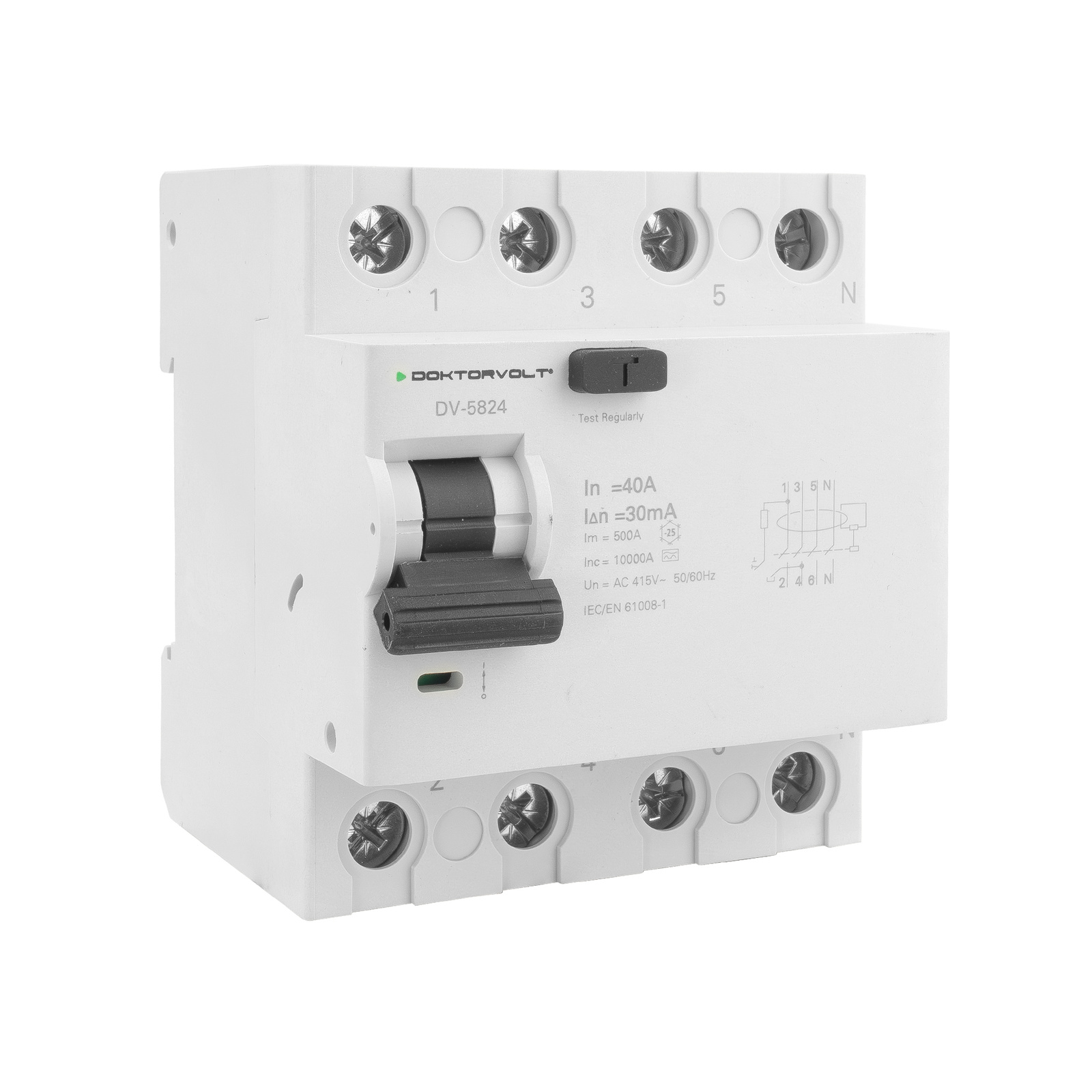

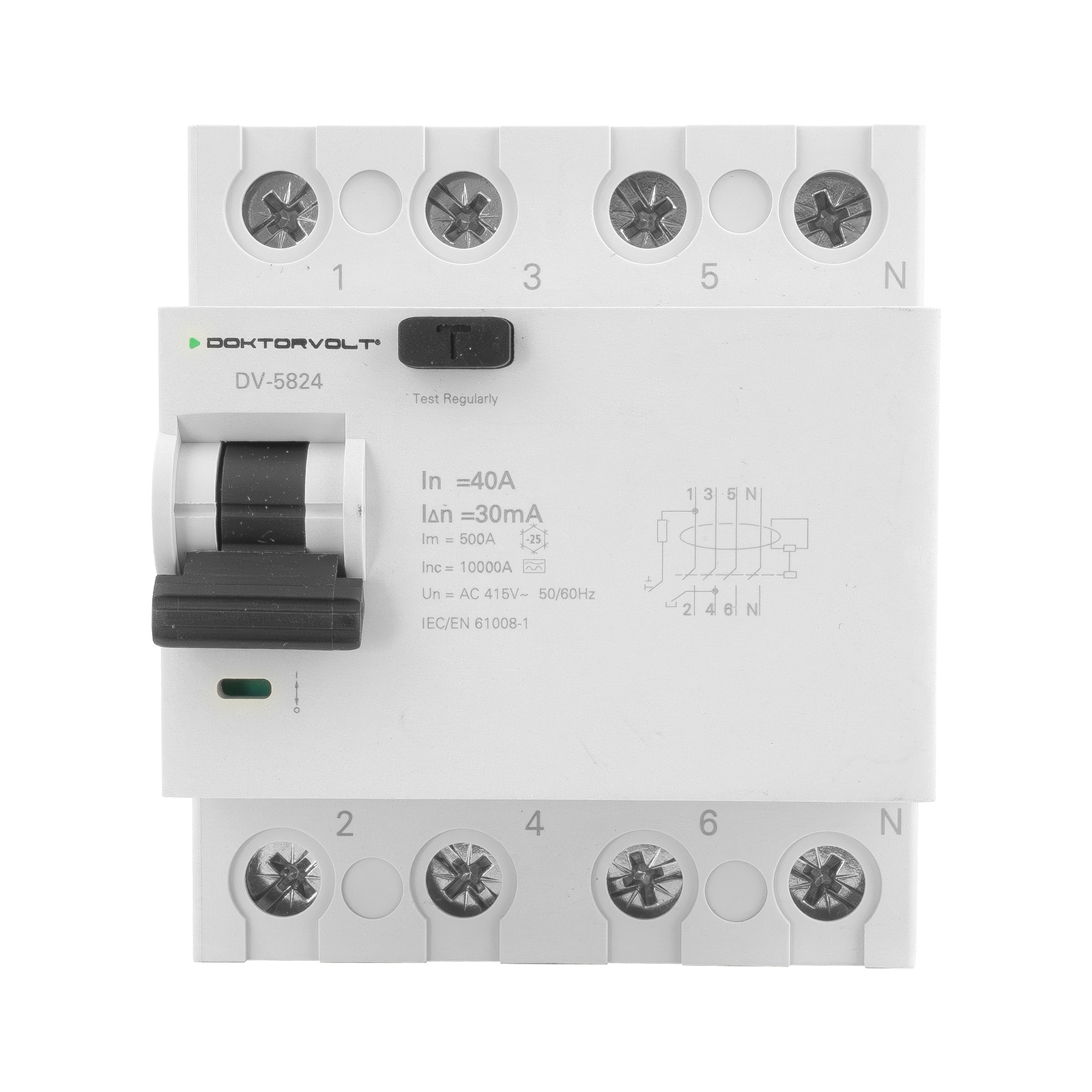

The DV-5824 residual current circuit breaker, with operating characteristic A and a rated current of 40A, provides effective protection for electrical installations in industry and the construction sector. Equipped with a Test button located on the top of the circuit breaker, it allows for quick and convenient functional testing. It features a labelling option, with a label that can be placed under a plastic flap for easier identification.
Technical Specifications
Model: DV-5824
EAN: 5905191015824
Rated conditional short-circuit current: 10kA
Rated current: 40A
Rated residual current: 30 mA
Type: A
Number of poles: 4P
Rated voltage: 415 V
Operating temperature range: -25 °C to +40 °C
Installation: 35 mm DIN rail
Frequency: 50/60 Hz
Terminals: Up to 35 mm²
Protection rating: IP20
Withstand voltage Uimp: 4 kV
Electrical endurance: 4,000 operations
Mechanical endurance: 6,000 operations
