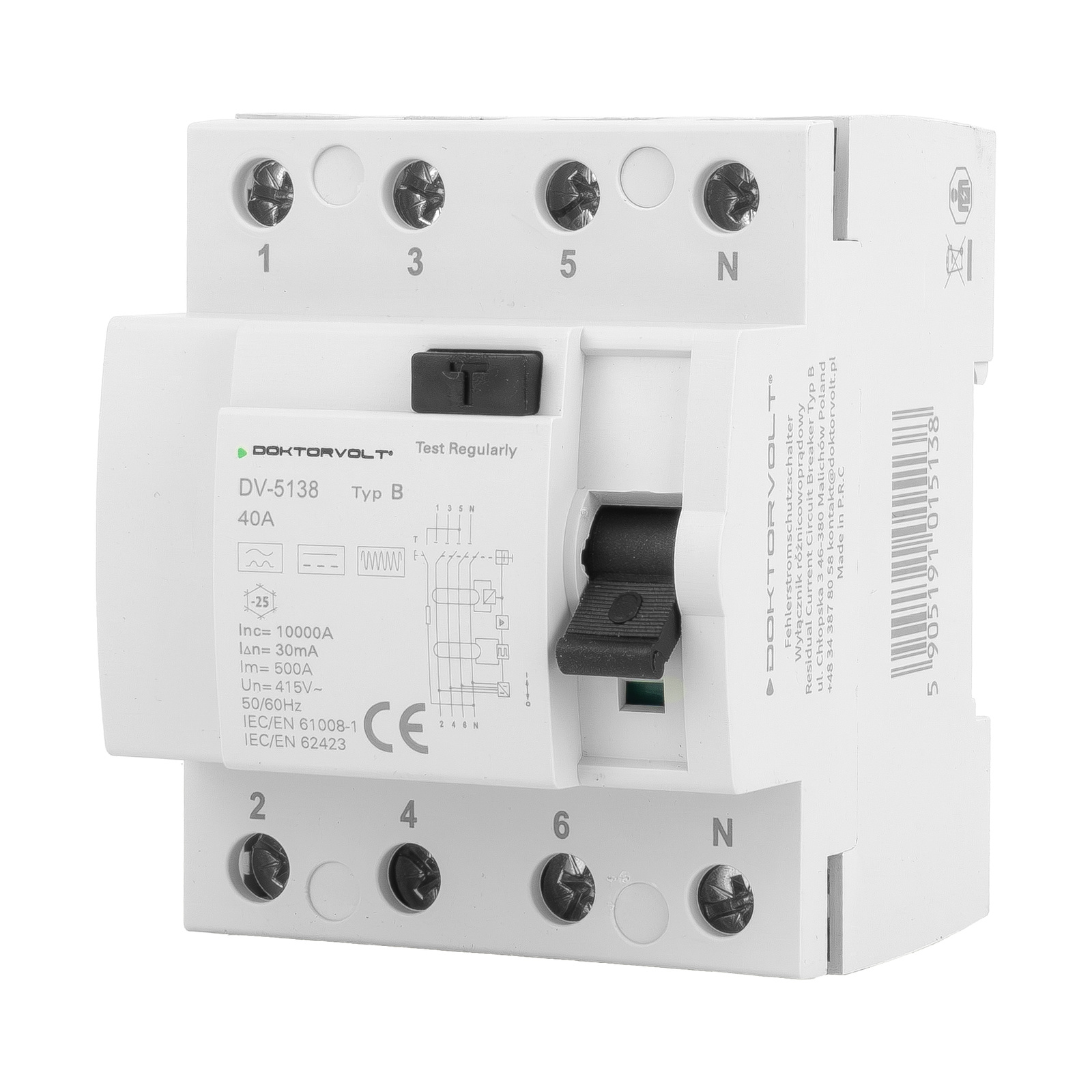

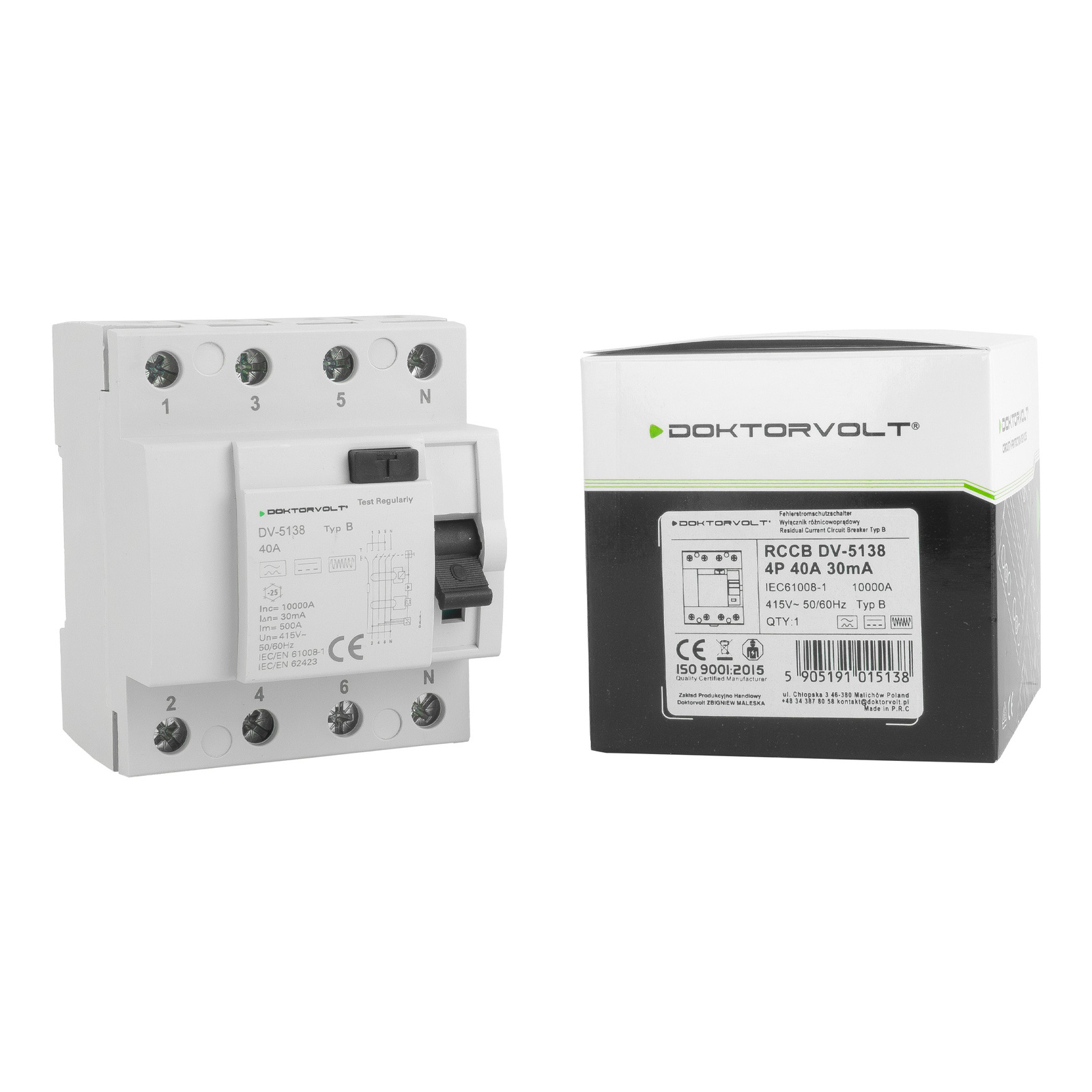

Residual current device (RCD) for the E-Auto Type B Wallbox, 40A, 30mA, 4P, IP20, Doktorvolt

⭐⭐⭐⭐⭐

➡️ Advantages of the residual current device:

✔️ converts direct current to alternating current,

✔️ suitable for all installations where residual currents, direct currents and smoothed currents may be present,

✔️ to protect people from electric shock in the event of direct or indirect contact,

✔️ minimises the effects of equipment damage and other undesirable events.

➡️ Technical information:

✔️ DIN rail mounting,

✔️ Type B,

✔️ protection class – IP20,

✔️ maximum cross-section of connection cables – 25 mm²,

✔️ residual current – 30 mA,

✔️ rated current – 40 A,

✔️ rated voltage – 400/415 V,

✔️ operating frequency – 50/60 Hz,

✔️ Rated breaking capacity and breaking capacity – 1000 A,

✔️ number of modules – 4.

➡️ Applications for the residual current circuit breaker:

⏺ car, boat, camper van:

✔️ charging,

✔️ power supply,

⏺ electronics:

✔️ electrical wiring,

✔️ socket,

✔️ conveyor lines,

⏺ healthcare :

✔️ safety .

type	B
number of modules	4
Rated current	40 A
Rated voltage	400/415 V
operating frequency	50/60 Hz
residual current – In	30 mA (0.03 A)
Rated breaking capacity and breaking capacity– IΔm	1000 A
short-circuit withstand voltage – Inc	10 kA
Protection class	IP20
Storage temperature	-30°C / +70°C
operating temperature	-30° C / +50° C
Maximum cross-section of connection cables	25 mm²
dimensions	70.5 x 81 x 66 mm (illustration below the table)
Standards	IEC/EN 61008-1 IEC/EN 62423
manufacturer	Doktorvolt
Model	DV-5576
EAN	5907589335576
