1 September 2026

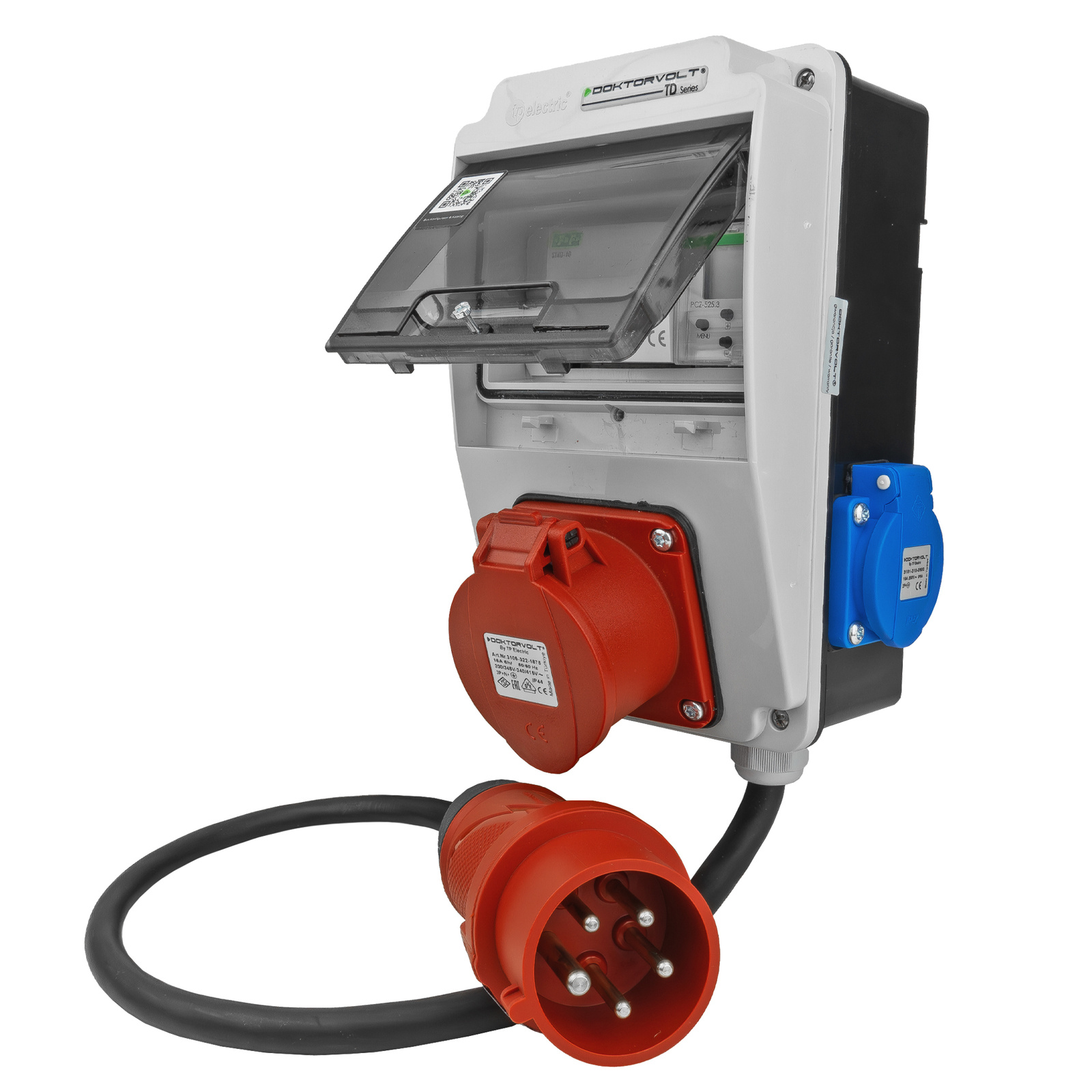

At first glance, the Doktorvolt DV-5329-D distribution box looks like a compact construction site power distribution unit: two 230 V Schuko sockets, one 400 V CEE socket, and a cable fitted with a 16 A CEE plug.
But this model offers something more – an astronomical timer and a contactor.
This means the DV-5329-D can do more than just distribute power. It can also automatically control a selected load, such as lighting
What does this mean in practice?
Imagine lighting for a construction site, company premises, a site facility or the area around a building.
In summer, the lights are needed much later than in winter. With a standard timer set to a fixed time, you have to remember to adjust the settings as the seasons change.

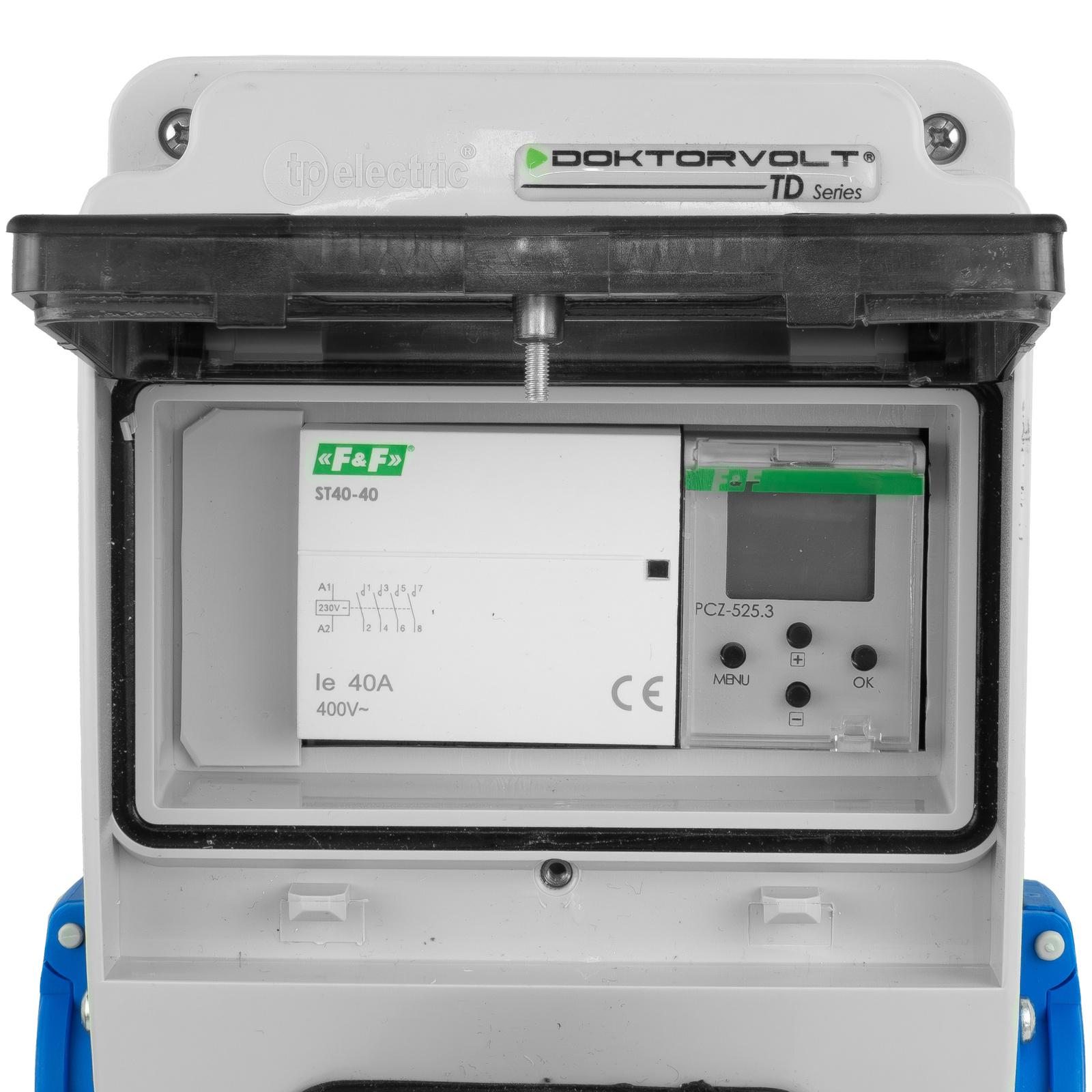

In the DV-5329-D, this is handled by the astronomical timer. It operates according to sunrise and sunset times, allowing the switching times to adjust automatically throughout the year.
You can also set a night-time break if the lighting does not need to remain on all night.
It is simply a convenient solution wherever the installation is meant to operate automatically, without the need for constant manual adjustment.
The distribution box includes:

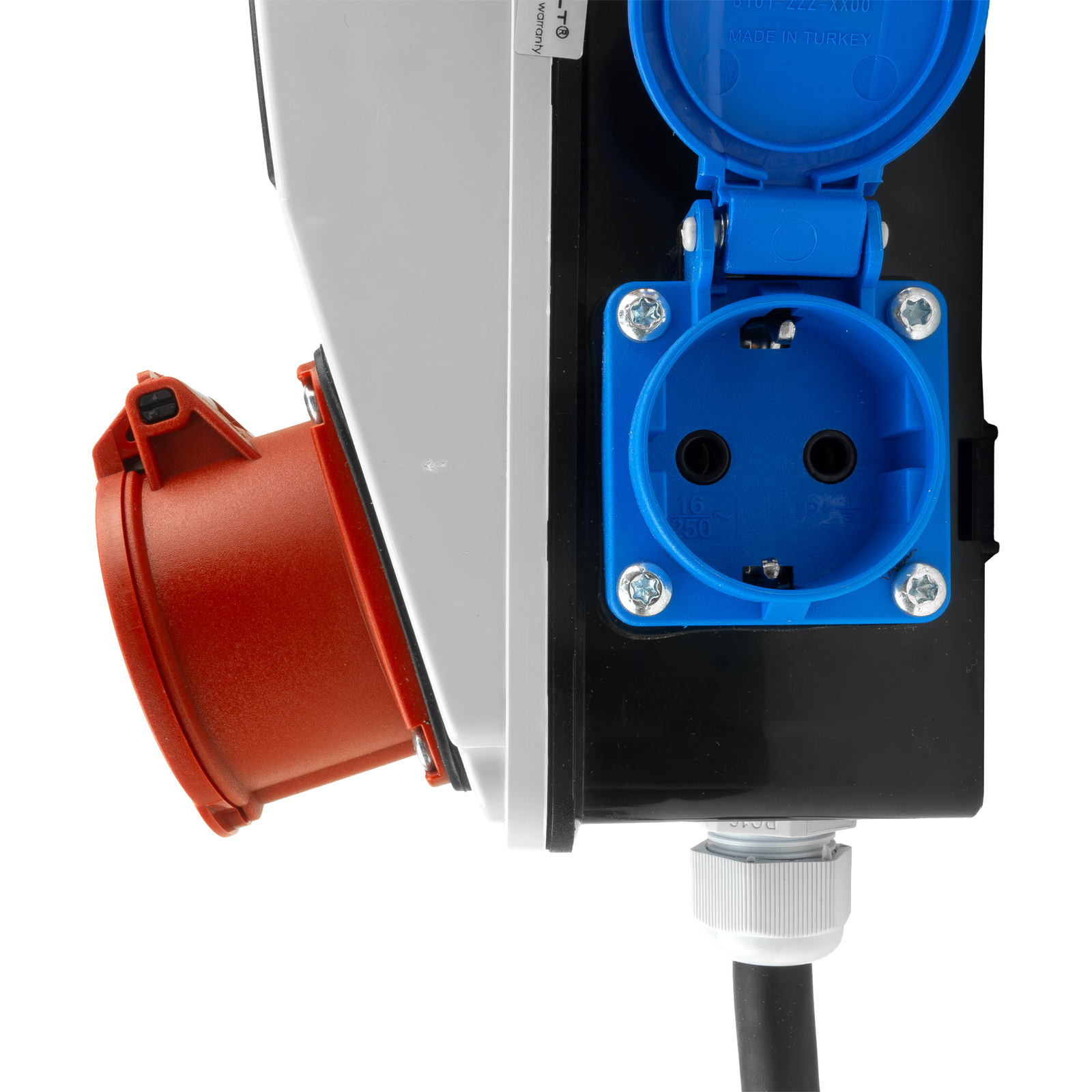

- 2 × 230 V Schuko sockets, 16 A,

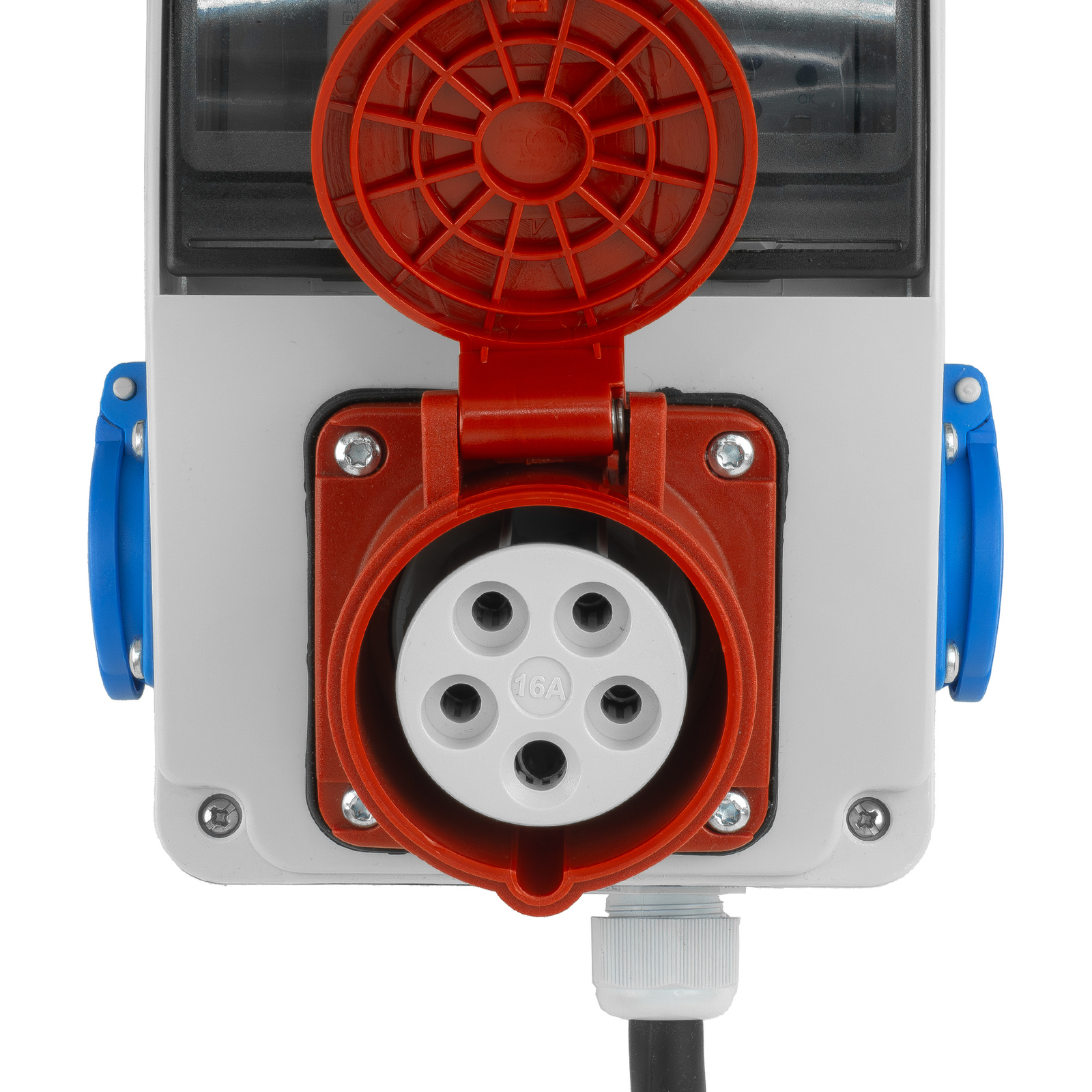

- 1 × CEE 400 V socket, 16 A,
- 70 cm cable with a CEE 400 V 16 A/5P plug,
- astronomical timer,
- modular contactor,

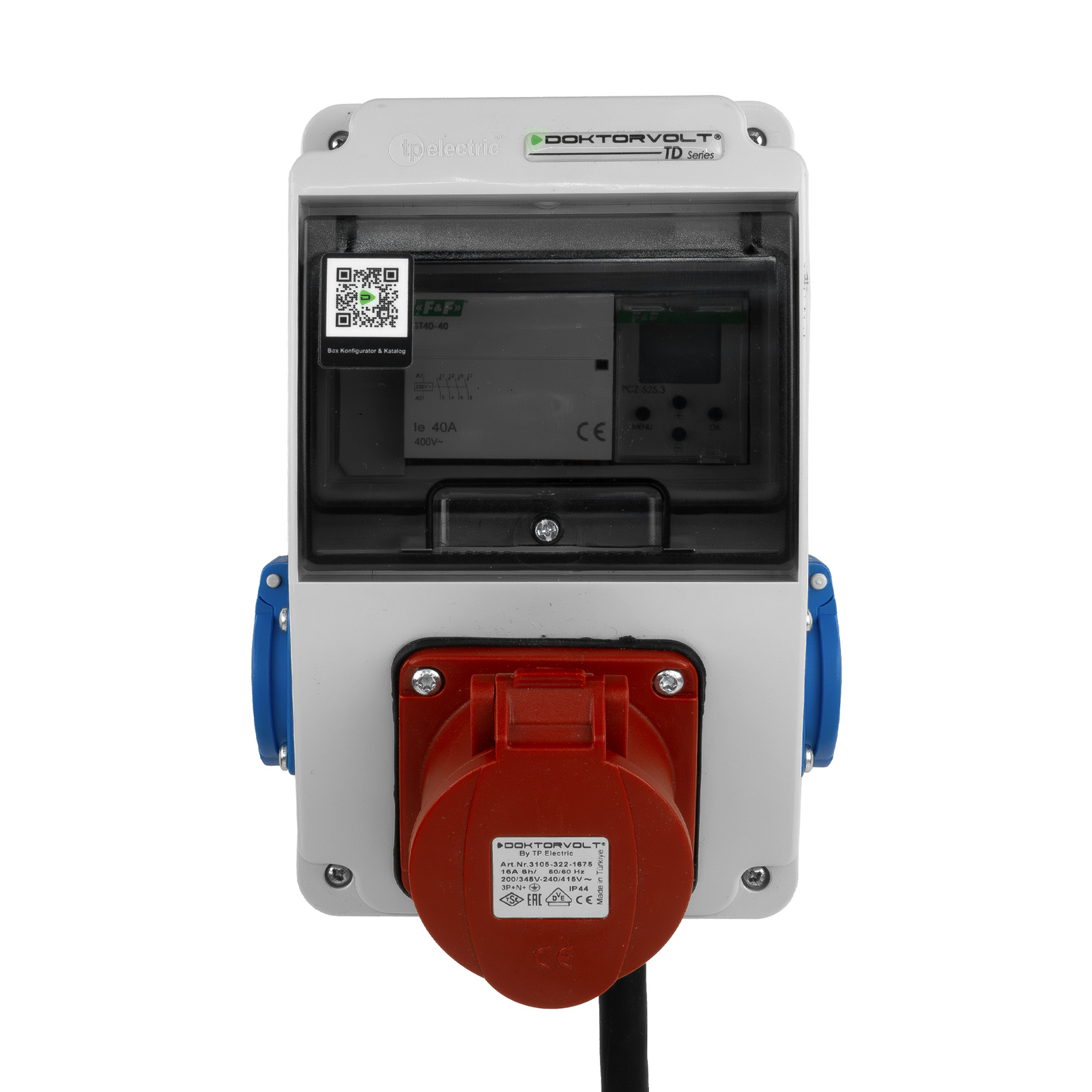

- inspection window for 6 modules.
The timer can be configured using an Android smartphone and NFC communication. Simply hold the phone close to the device to enter or change the settings more easily.
Where does this type of distribution box make sense?
The DV-5329-D construction site distribution box is worth considering wherever, in addition to access to power sockets, you also need automatic control of a device depending on the time of day.
The most obvious application is outdoor lighting – for example on a construction site, company premises, around a building or in a technical service area.
If you only need a distribution box with several sockets, a simpler model may be sufficient. The main advantage here is that the control components are already integrated into the same enclosure as the power distribution point.
What about outdoor use?
The DV-5329-D enclosure has an IP44 protection rating, meaning it is protected against solid objects larger than 1 mm and against splashing water.
The distribution box is also resistant to UV radiation and, according to the specification, can operate in temperatures ranging from -25°C to +50°C.
It is worth noting, however, that this model comes without built-in electrical protection devices. The appropriate circuit protection therefore needs to be provided by the installation to which the distribution box is connected.
Compact size, practical capabilities
The DV-5329-D distribution box is a good example of how a distribution box can be more than just a “box with sockets”.
In one compact enclosure, it provides access to 230 V and 400 V power together with the ability to automatically control devices such as lighting according to sunrise and sunset times.
If this is exactly the function you need, the astronomical timer is not just an extra feature. It is the component that can save you from having to manage the installation manually every day.
