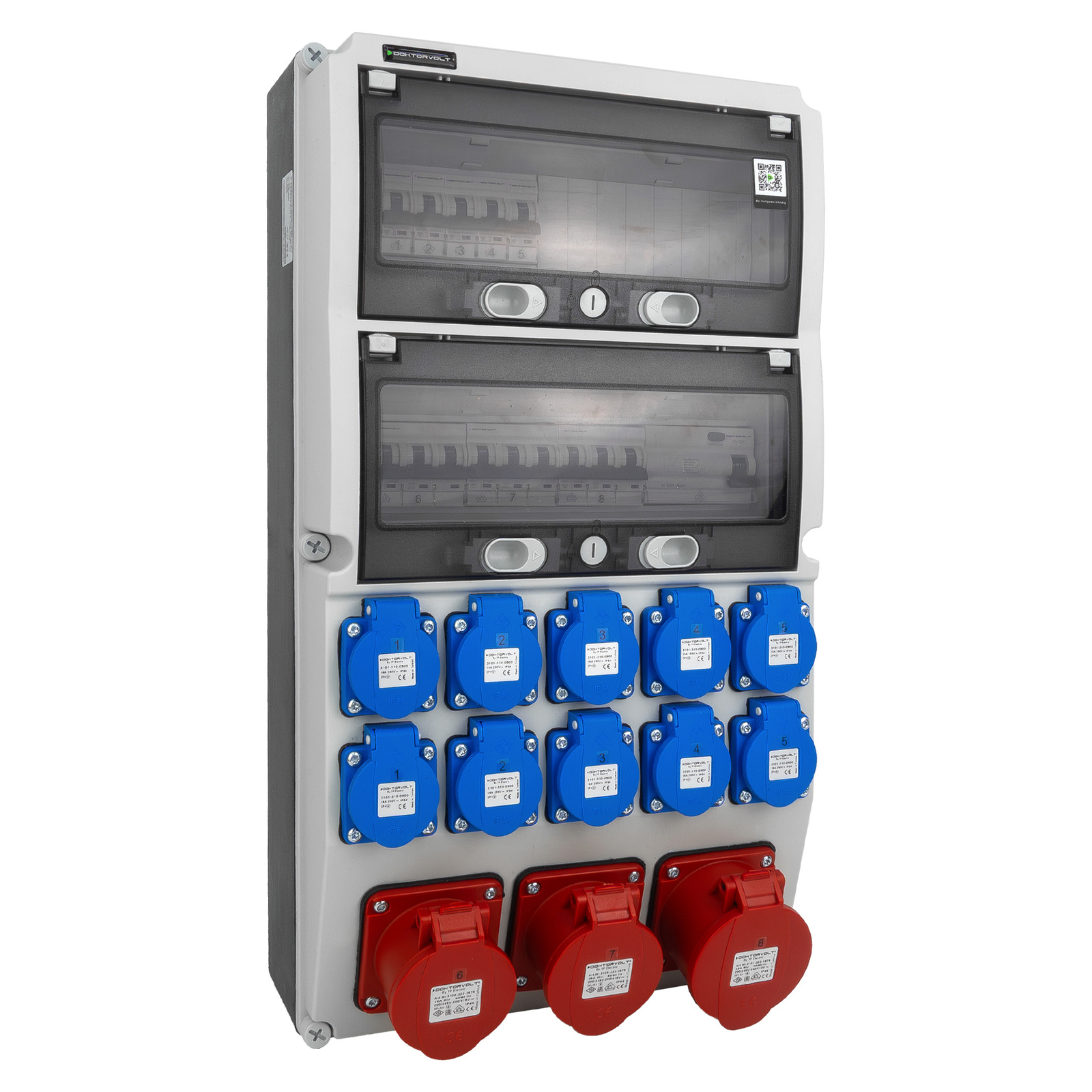

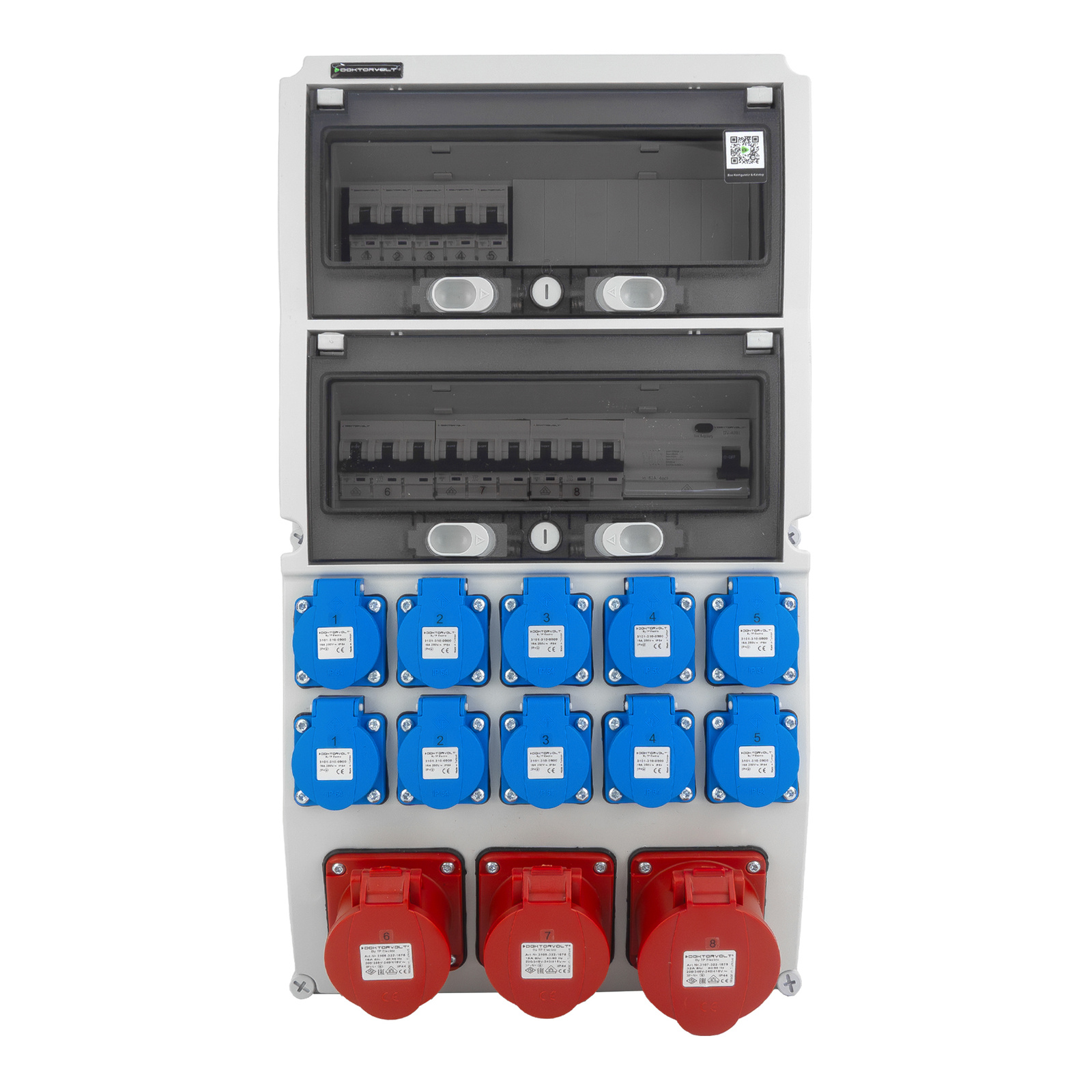

eXT 10x230V 16A construction switchboard, CEE 16A and 32A sockets, Doktorvolt DV-7064-D overcurrent and residual current protection

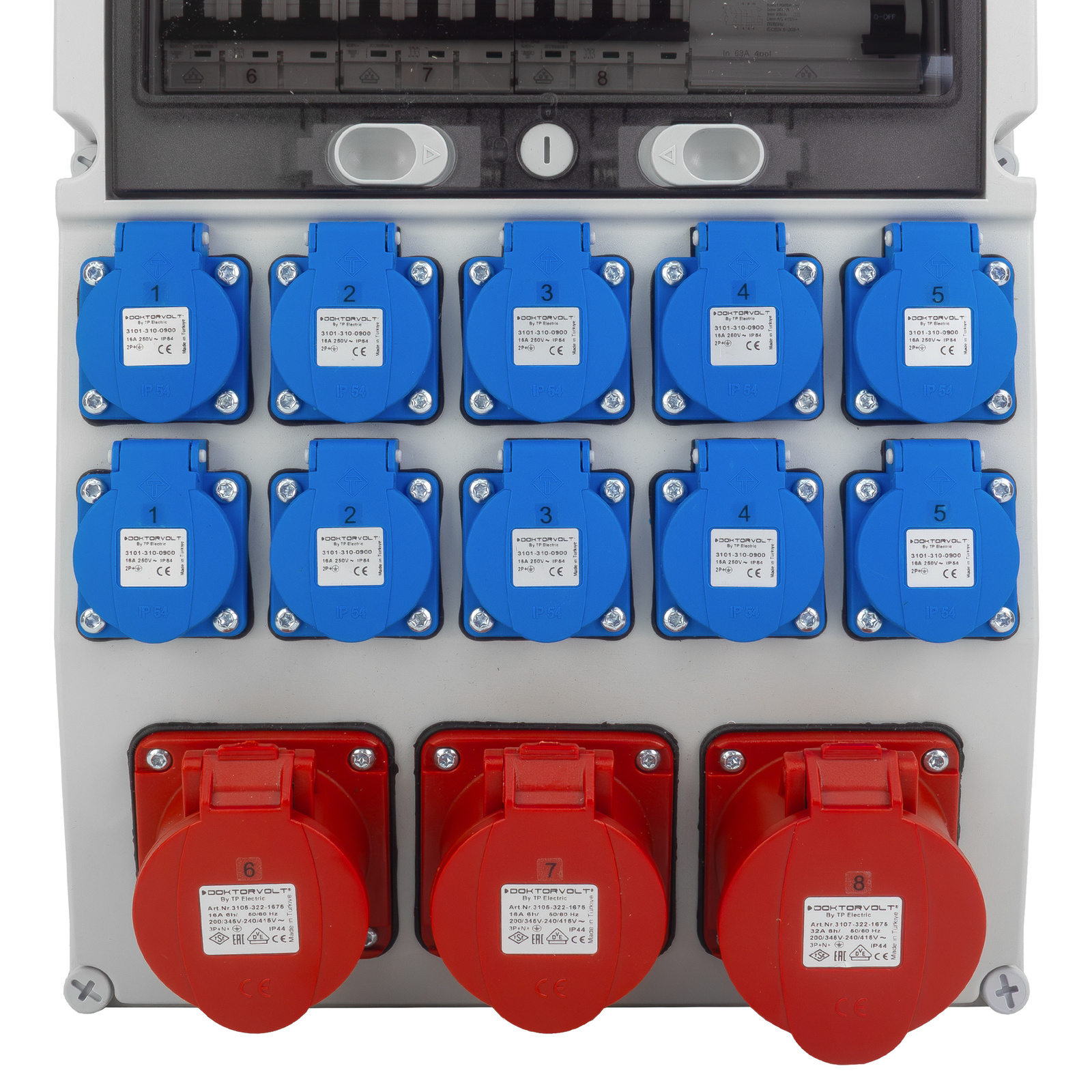

A robust construction switchboard made from high-quality materials. Fitted with overcurrent and residual current protection. It has two inspection hatches. Equipped with 10 230V, 16A sockets, 2 CEE 400V, 16A sockets and one CEE 400V, 32A socket.
eXT SERIES | | EAN: 5905191017064
Technical specifications
| Weight | 8 kg |
|---|---|
| Enclosure material | Plastic |
EXT series construction switchboard fitted with a large number of 230V Doktorvolt sockets
A robust construction distribution board made from high-quality materials. Fitted with overcurrent and residual current protection. The unit is fitted with 10 230V 16A sockets.
Versatility in a compact distribution board
User-friendliness combined with high-quality workmanship
Technical Specifications
General Information
Model: DV-7064-D
EAN: 5905191017064
Product series designation: EXT
Manufacturer: DOKTORVOLT
Sockets: protective equipment
Sockets:

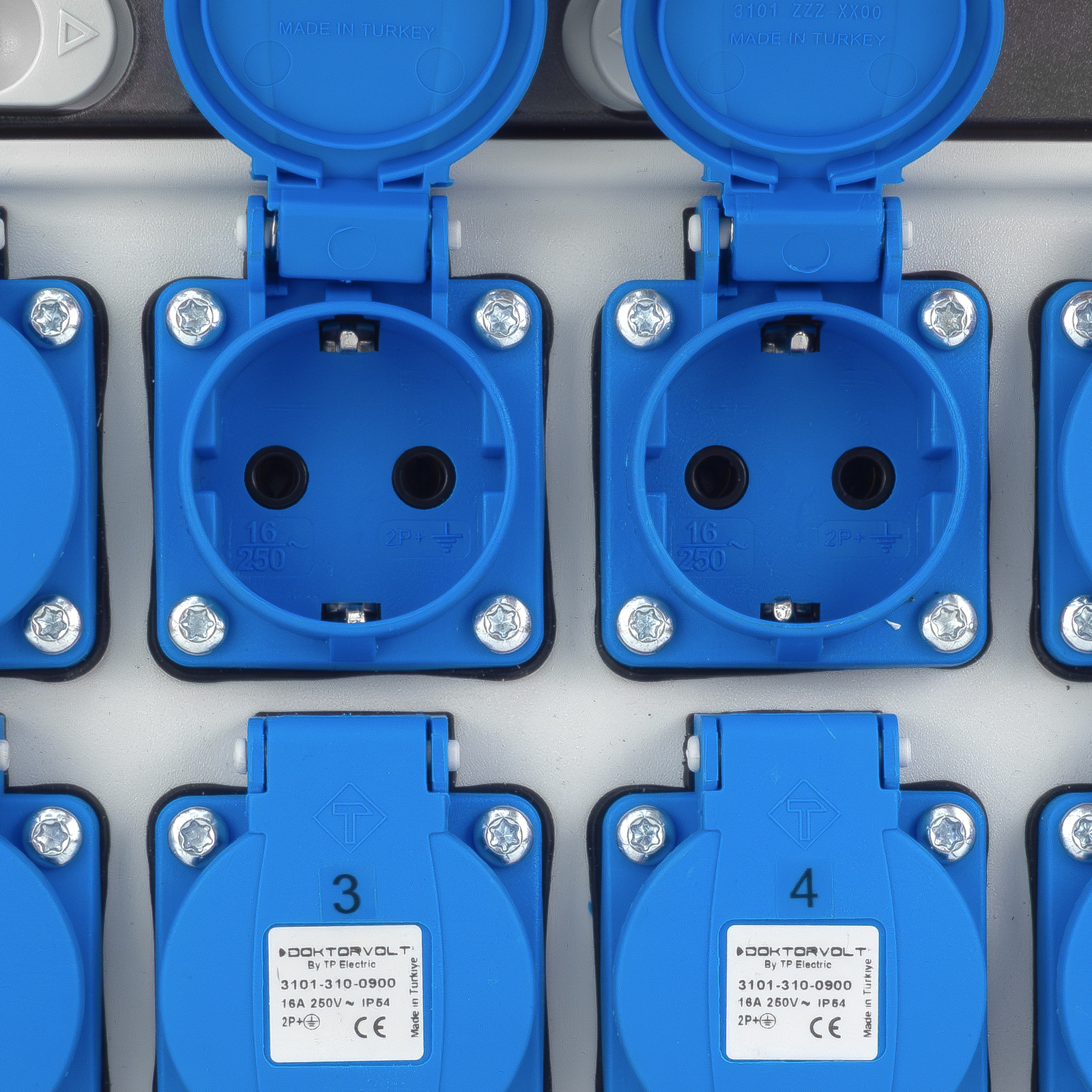

10x 230V, 16A IP54, 1P+N+PE SCHUKO

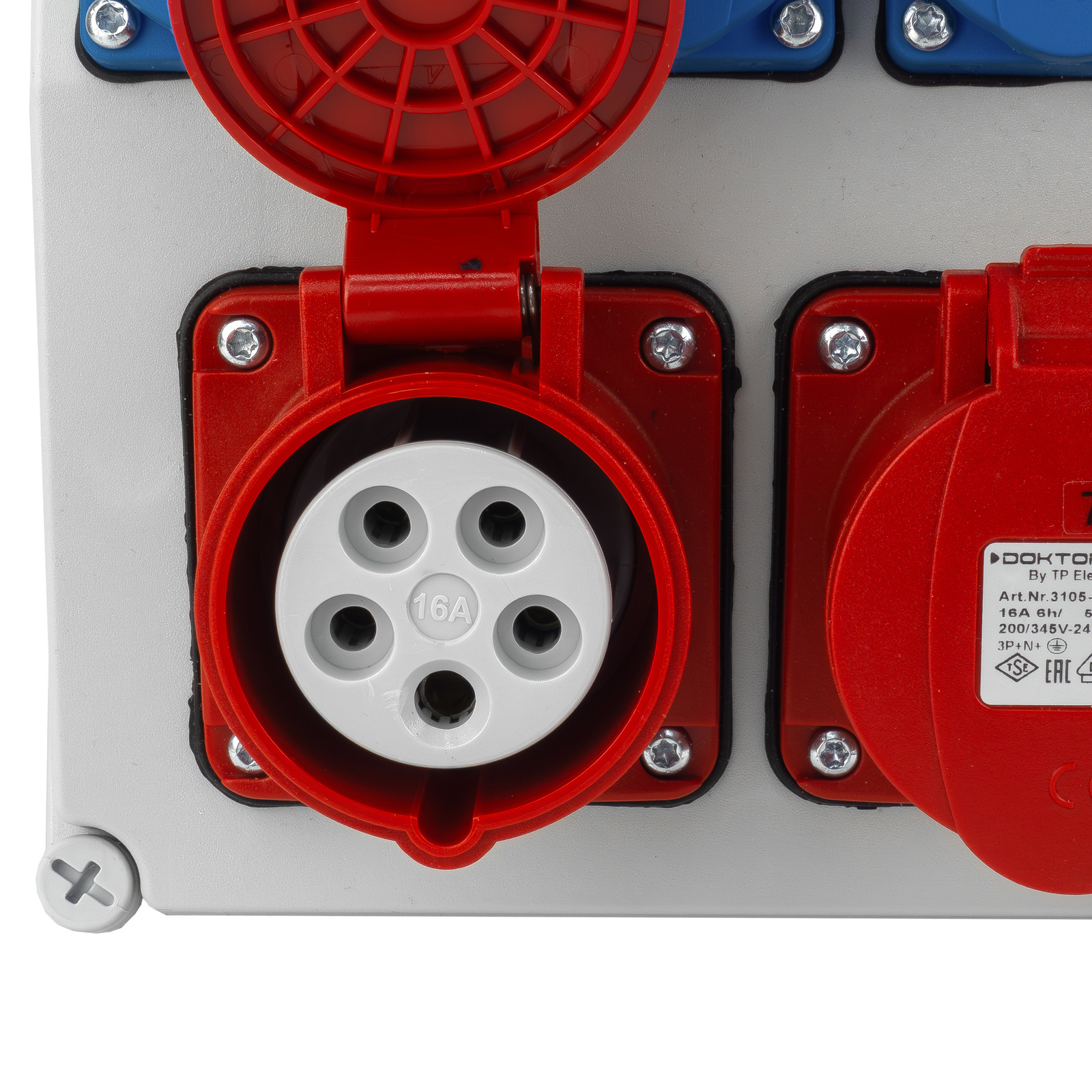

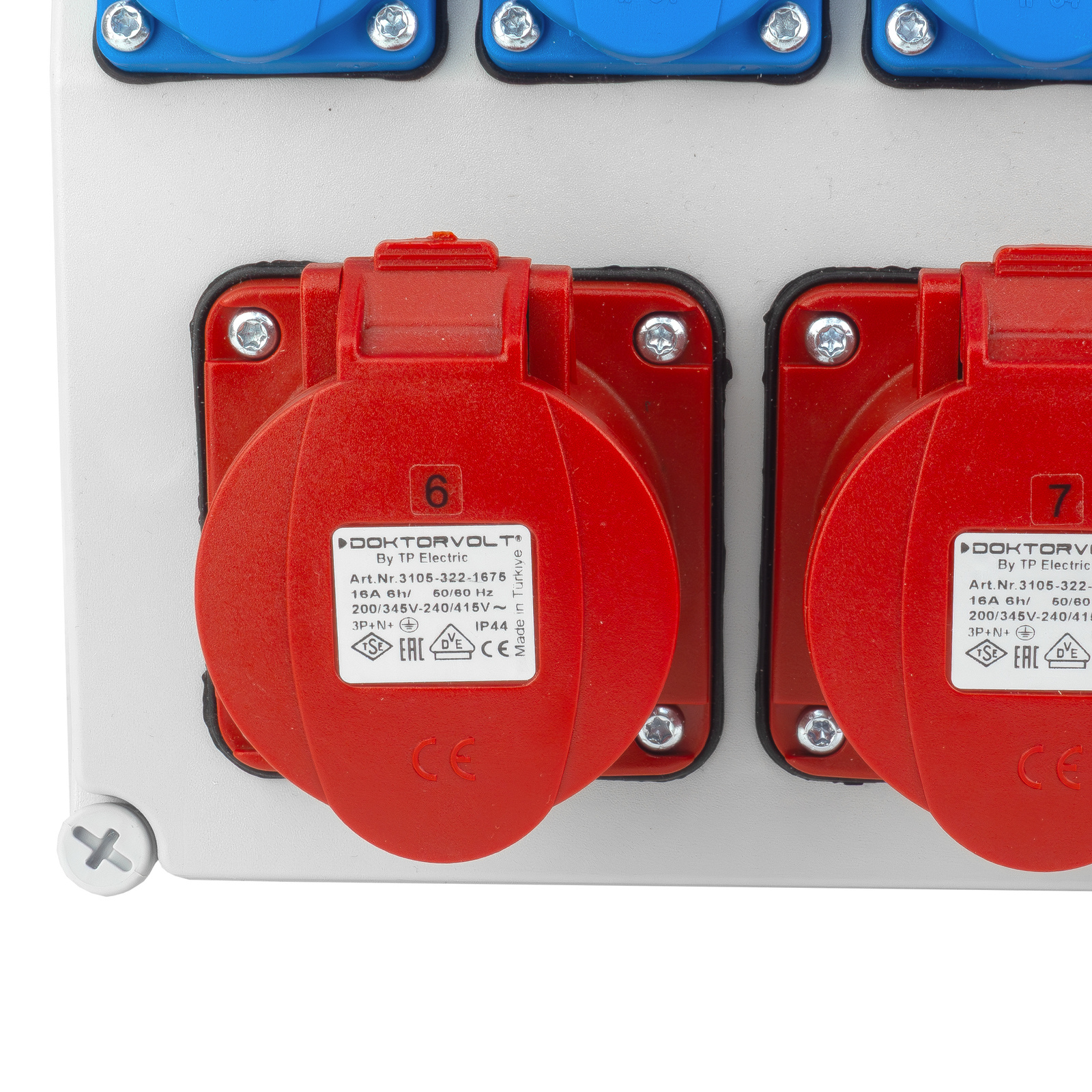

2x CEE 400V, 16A IP44, 3P+N+PE, 6h

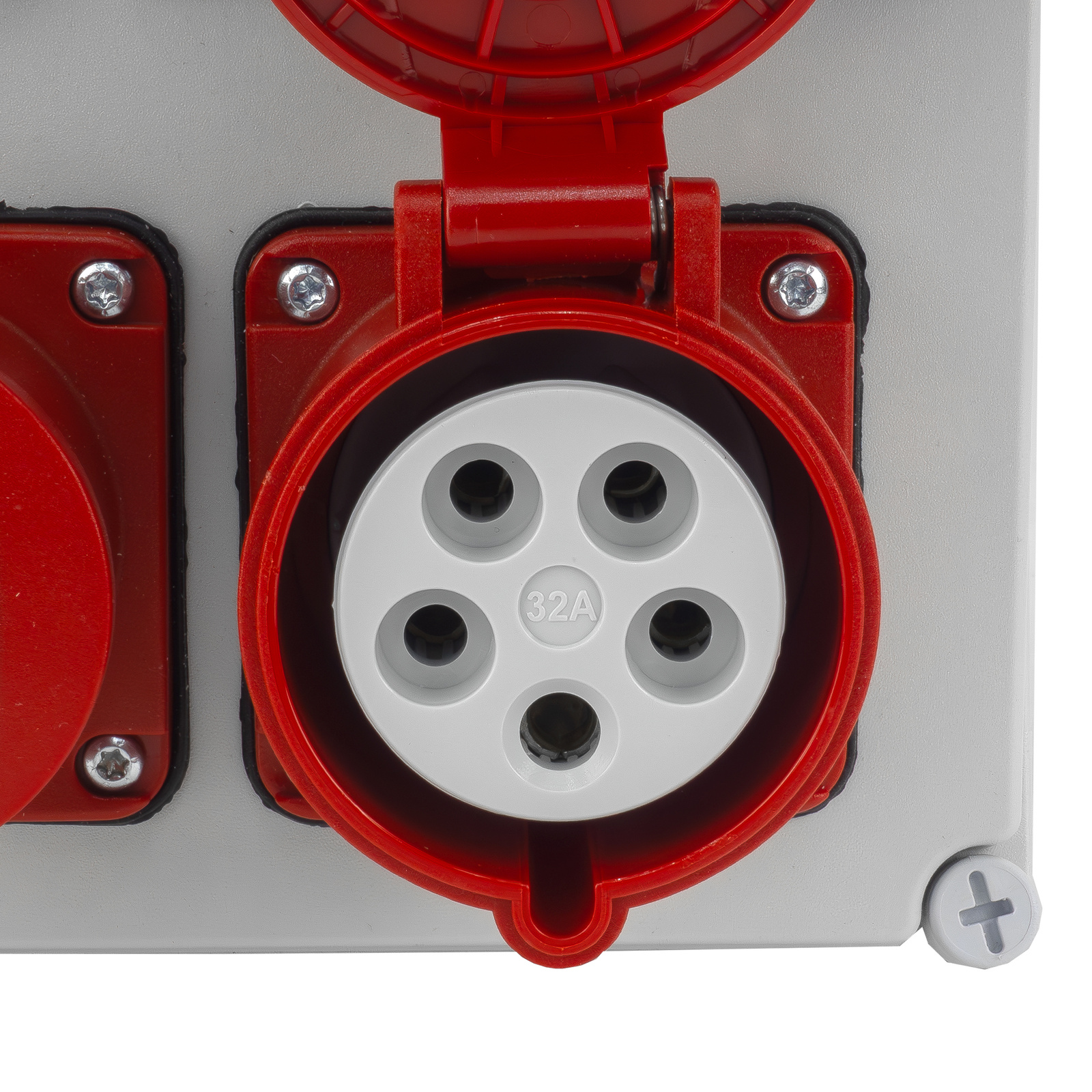

1x CEE 400V, 32A IP44, 3P+N+PE, 6h

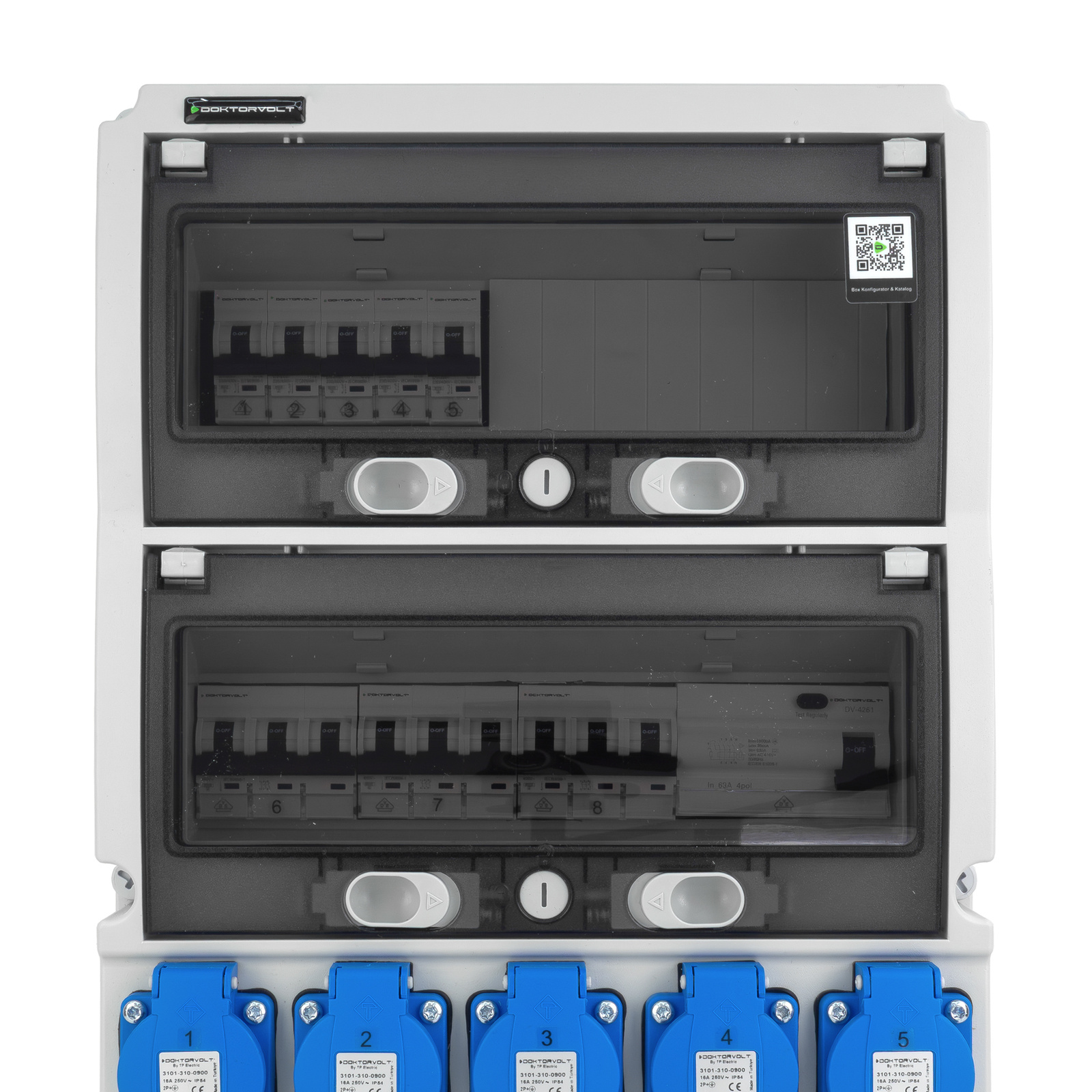

DOKTORVOLT protection equipment:
Residual current circuit breaker (RCCB) 1x 63A 30mA Type A 3P+N 6kA
Overcurrent circuit breaker (MCB) 1x C 32A 3P 6kA
Overcurrent circuit breaker (MCB) 2x C 16A 3P 6kA
Overcurrent circuit breaker (MCB) 5x C 16A 1P 6kA
Rated voltage: 230V/400V
Rated frequency: 50 Hz
Rated current: 63A
Rated conventional short-circuit current: ≤ 6 kA
RDF: 0.5
Enclosure and Technical Data
Design type: Stationary

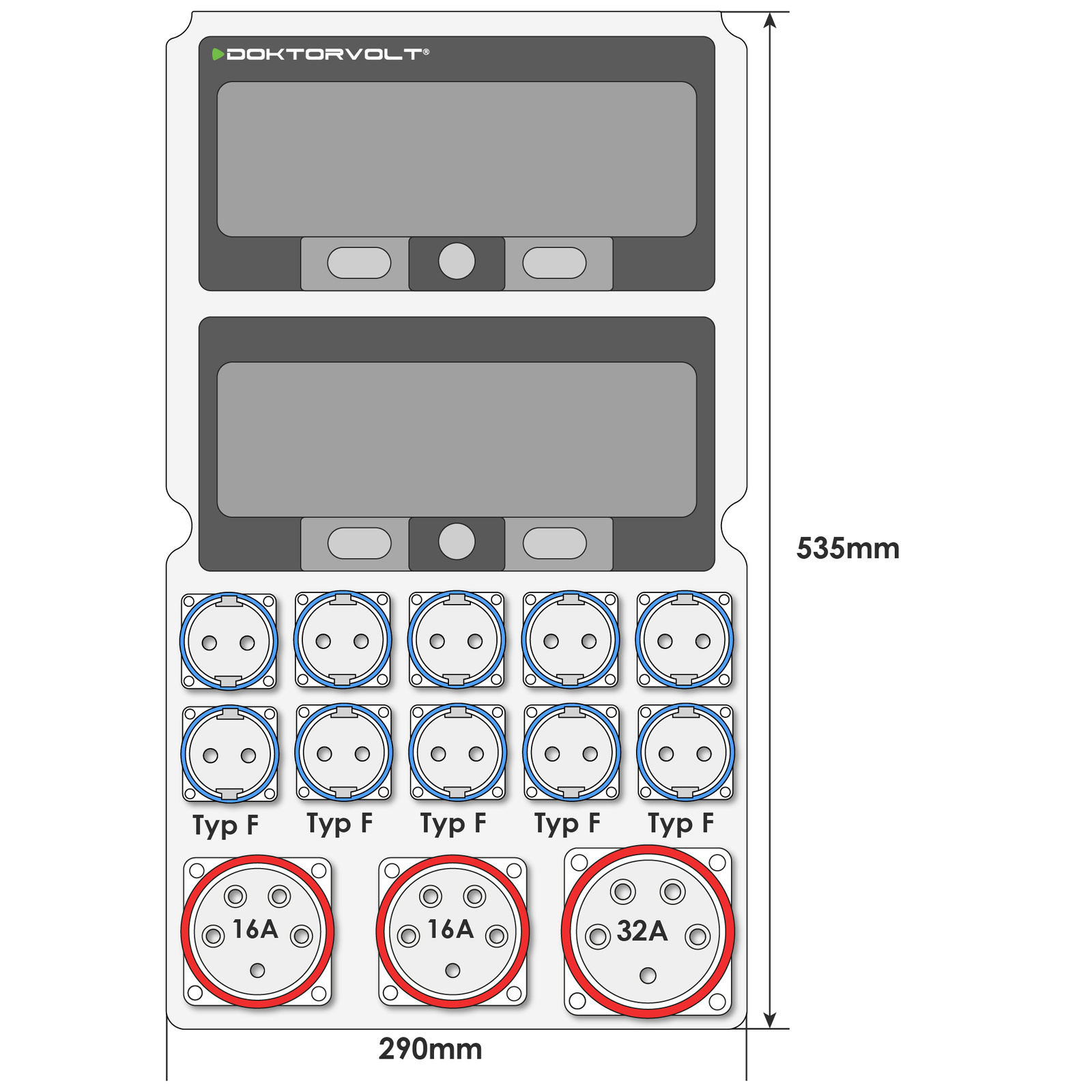

Enclosure dimensions: 300x540x147 mm
Enclosure material: ABS
Halogen-free plastic: No
Front/rear panel colour: Grey/black
Number of modules: 2×13
Enclosure protection rating: IP66
Protection rating of the complete switchboard: IP44
Installation temperature: -25 ~ +50 °C
Wiring and Standards
Cable gland: PG21
Mounting pins: Yes, 4 pcs

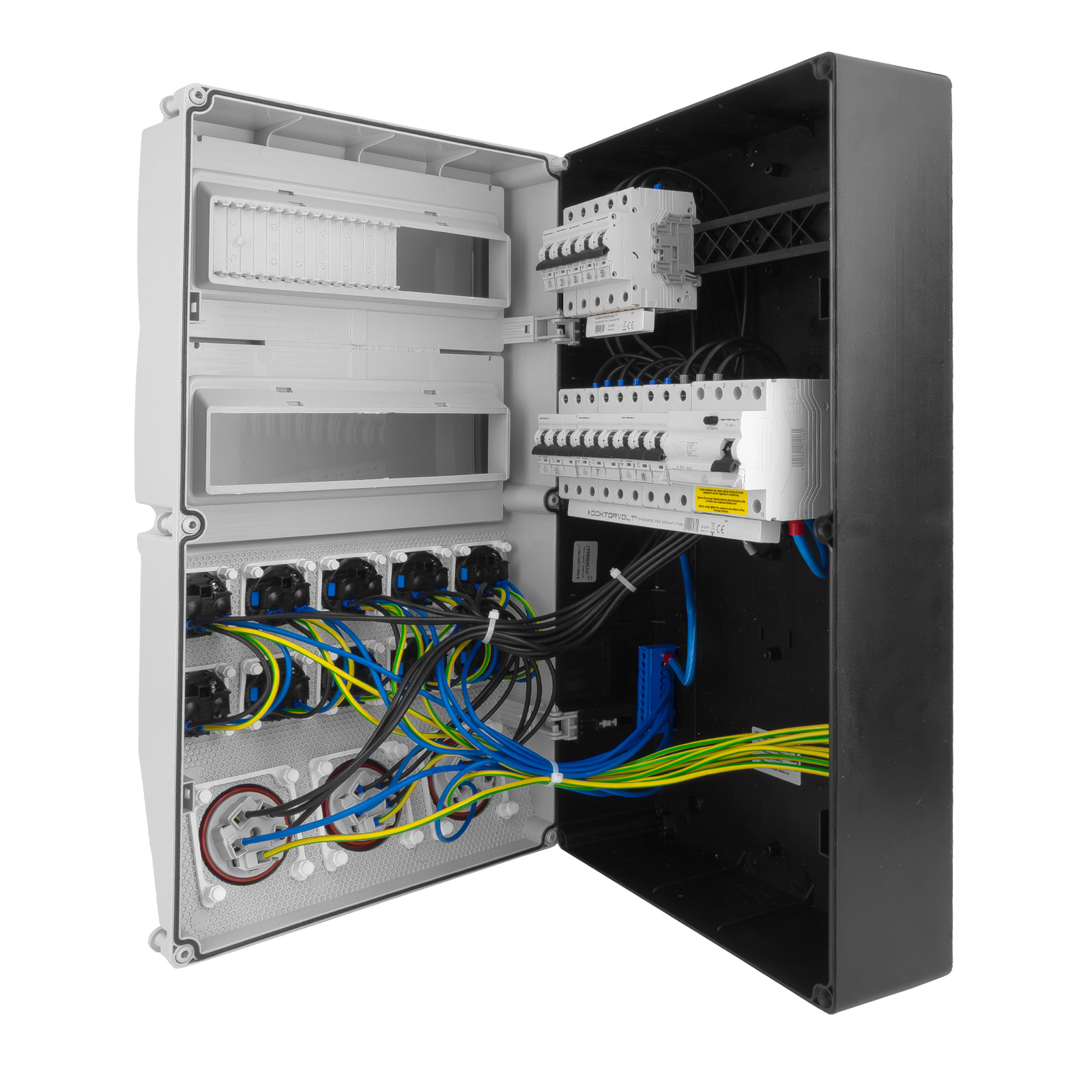

Internal wiring of the switchboard:
Power cables: H07V-K 2.5/4 mm² black
Neutral cables: H07V-K 2.5/4/10 mm² blue
Protective conductors: H07V-K 2.5/4 mm² yellow-green
Standards and certificates:
PN-EN 61439-1
PN-EN 61439-3
Certification = a guarantee of quality:
IP rating = greater safety:
– is protected against the ingress of objects larger than 1 mm
– is protected against water splashing from various directions
A trusted manufacturer:
Doktorvolt® was founded in 2013. This rapidly growing company has established itself on both the Polish and international markets. The company’s headquarters are located in Malichów in the Opole Voivodeship, where it operates a modern production hall and warehouse. The company specialises in the manufacture of construction switchboards, distinguishing itself through quality and reliability. Each switchboard is constructed from high-quality components. The products comply with the safety standards and regulations in force within the European Union.
