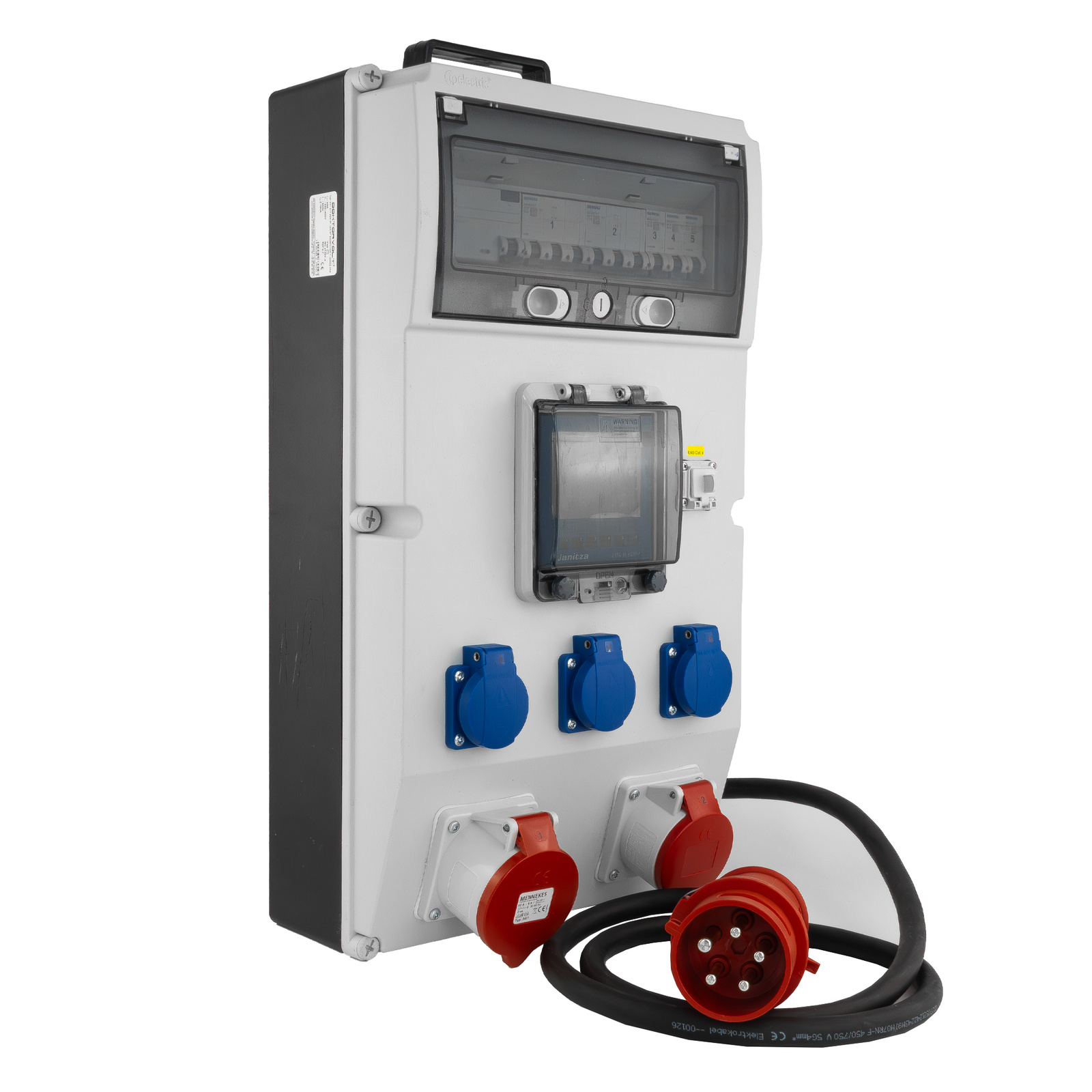

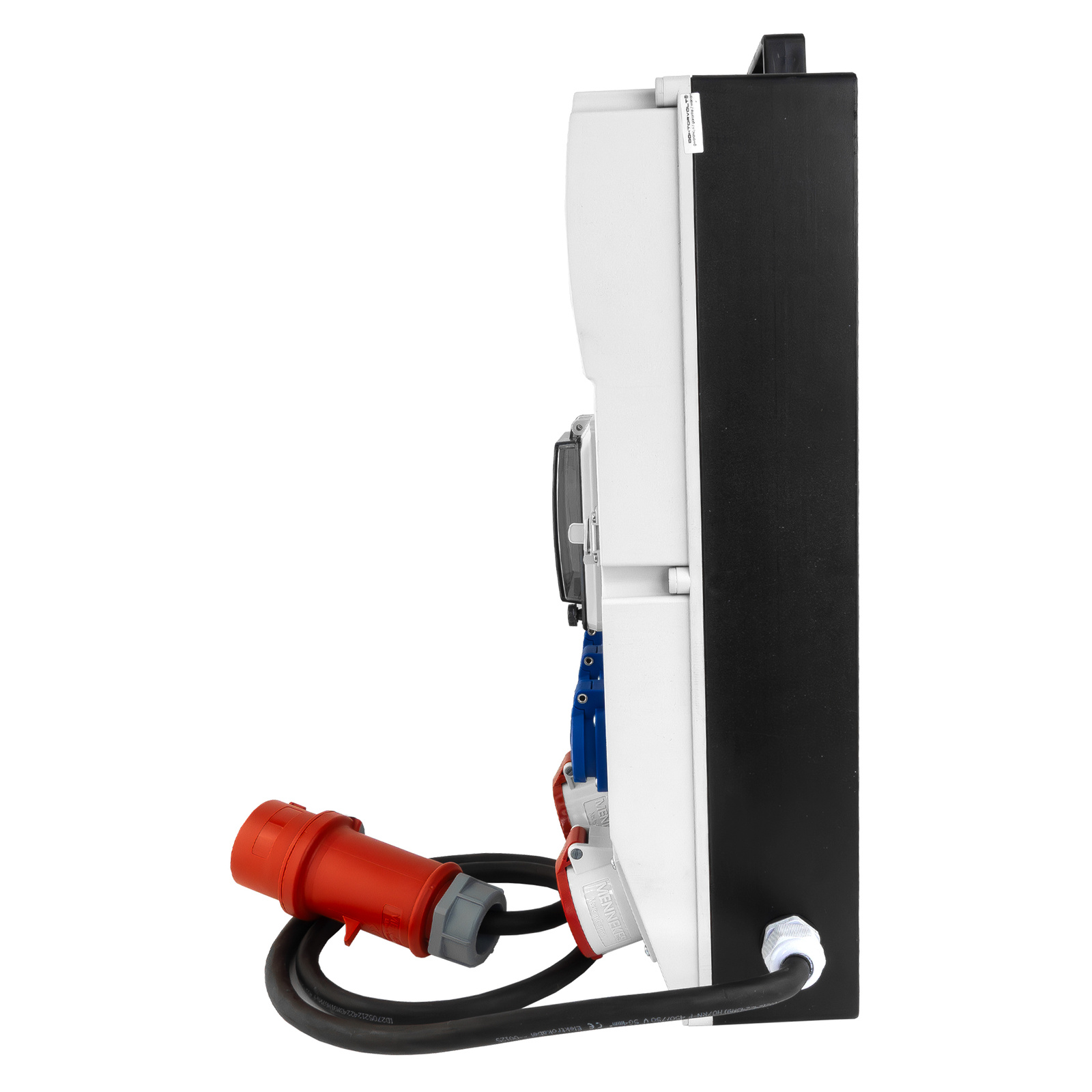

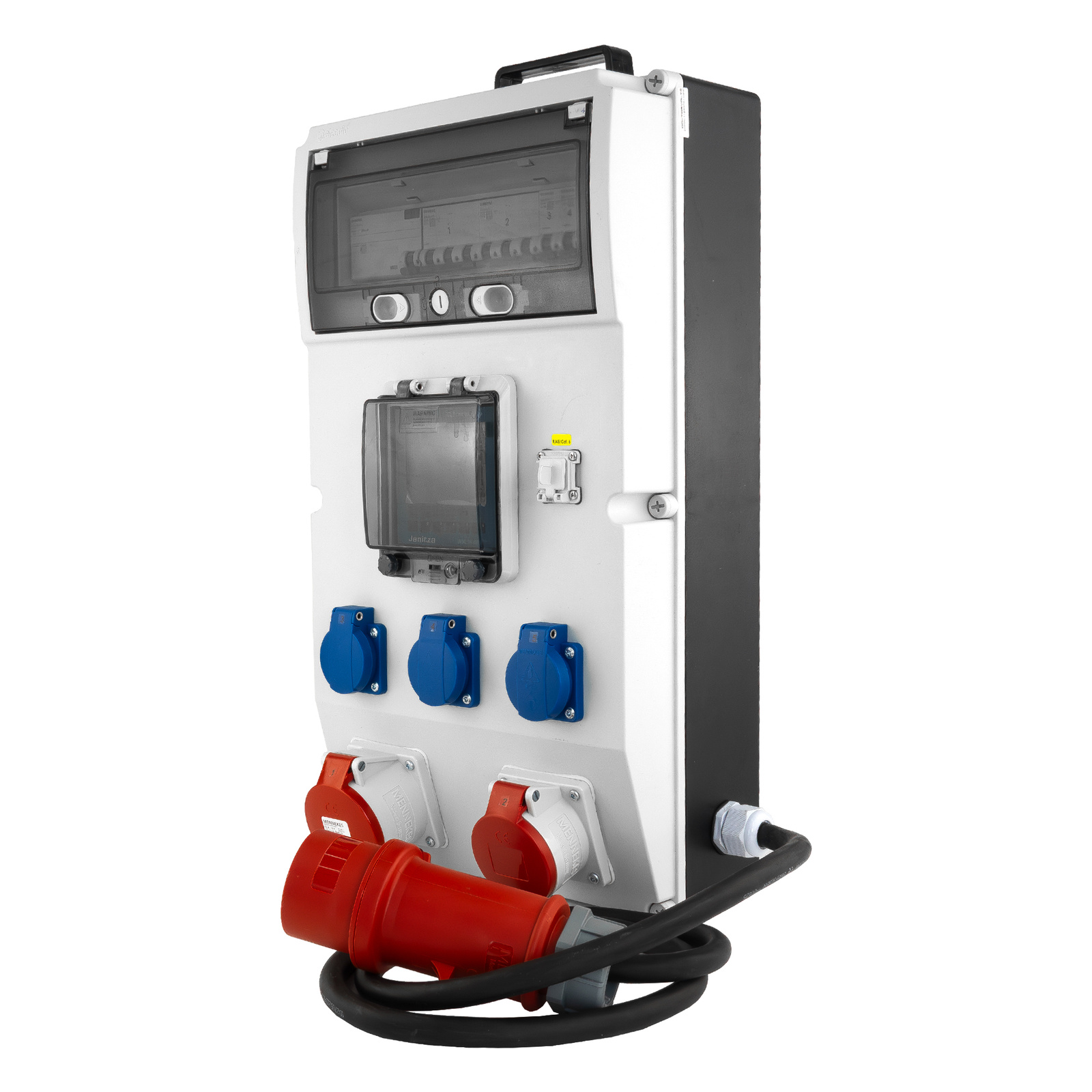

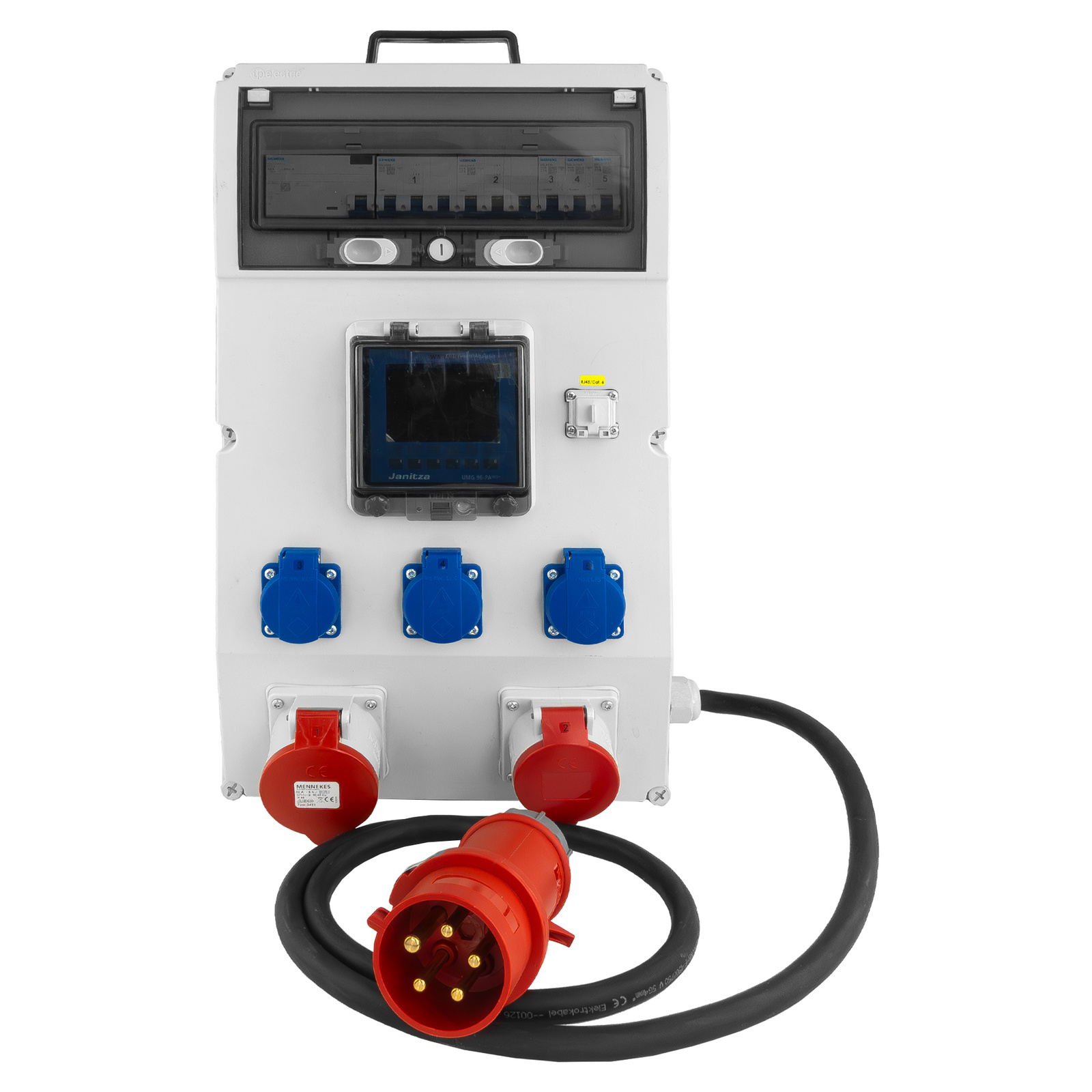

eXT 32A 16A construction switchboard with 3x230V circuit-breaker, IP44 rating, Doktorvolt DV-6047-D

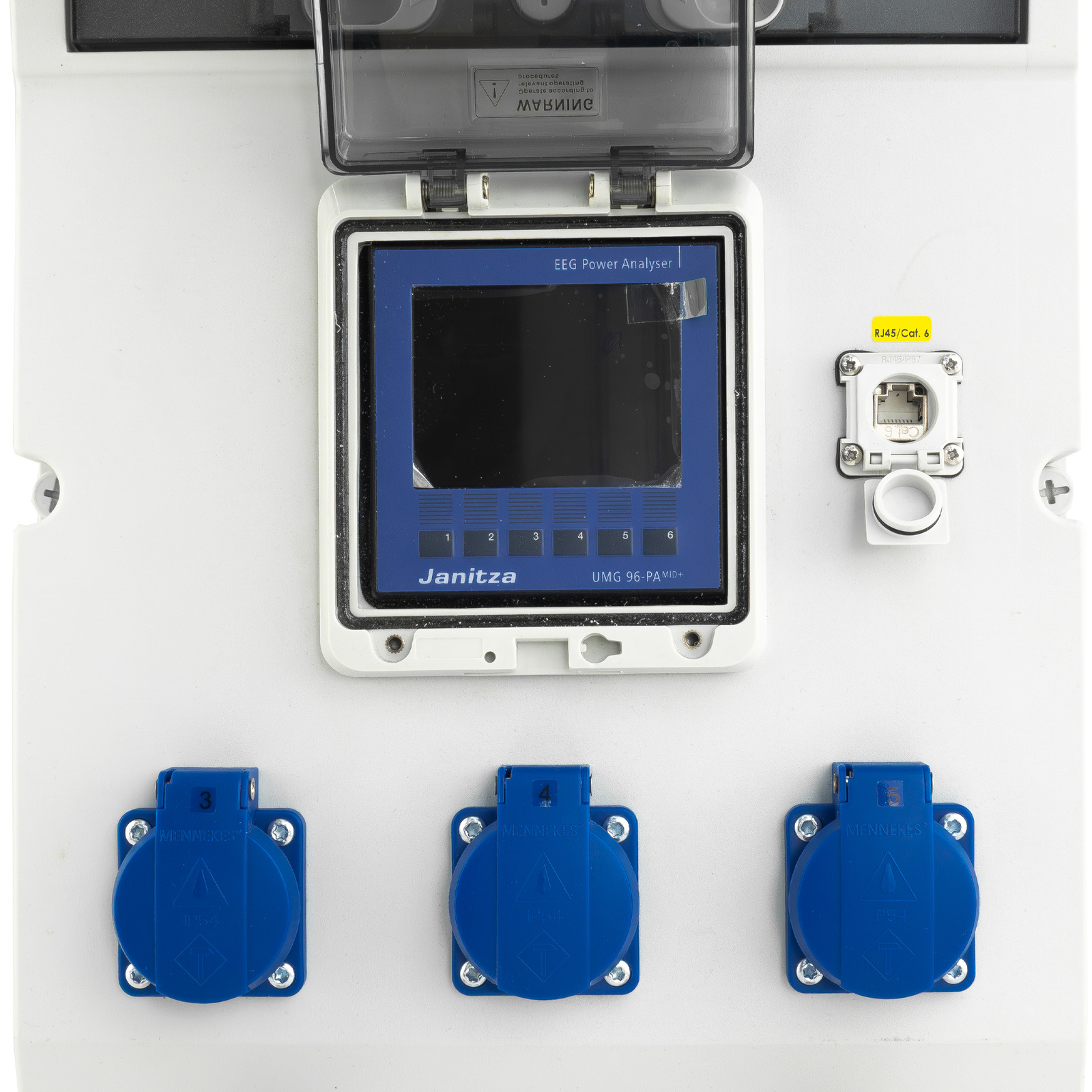

Professional 32A/16A Doktorvolt construction switchboard with energy metering, protection features and IP44 rating. Ready to use, ideal for outdoor and industrial applications. Compact, durable and compliant with MID and EEG standards.
eXT SERIES | | EAN: 5907589336047
Technical specifications
eXT 32A 16A construction distribution board with 3x230V circuit breaker, IP44 rating, Doktorvolt DV-6047-D
Professional Doktorvolt 32A/16A construction switchboard with energy metering, protection features and IP44 rating. Ready for use, ideal for outdoor and industrial applications. Compact, durable and compliant with MID and EEG standards.
Professional use
Why choose it?
Technical Specifications
General Information
Model: DV-6047-D
EAN: 5907589336047
Manufacturer: DOKTORVOLT
Sockets and Safety Equipment

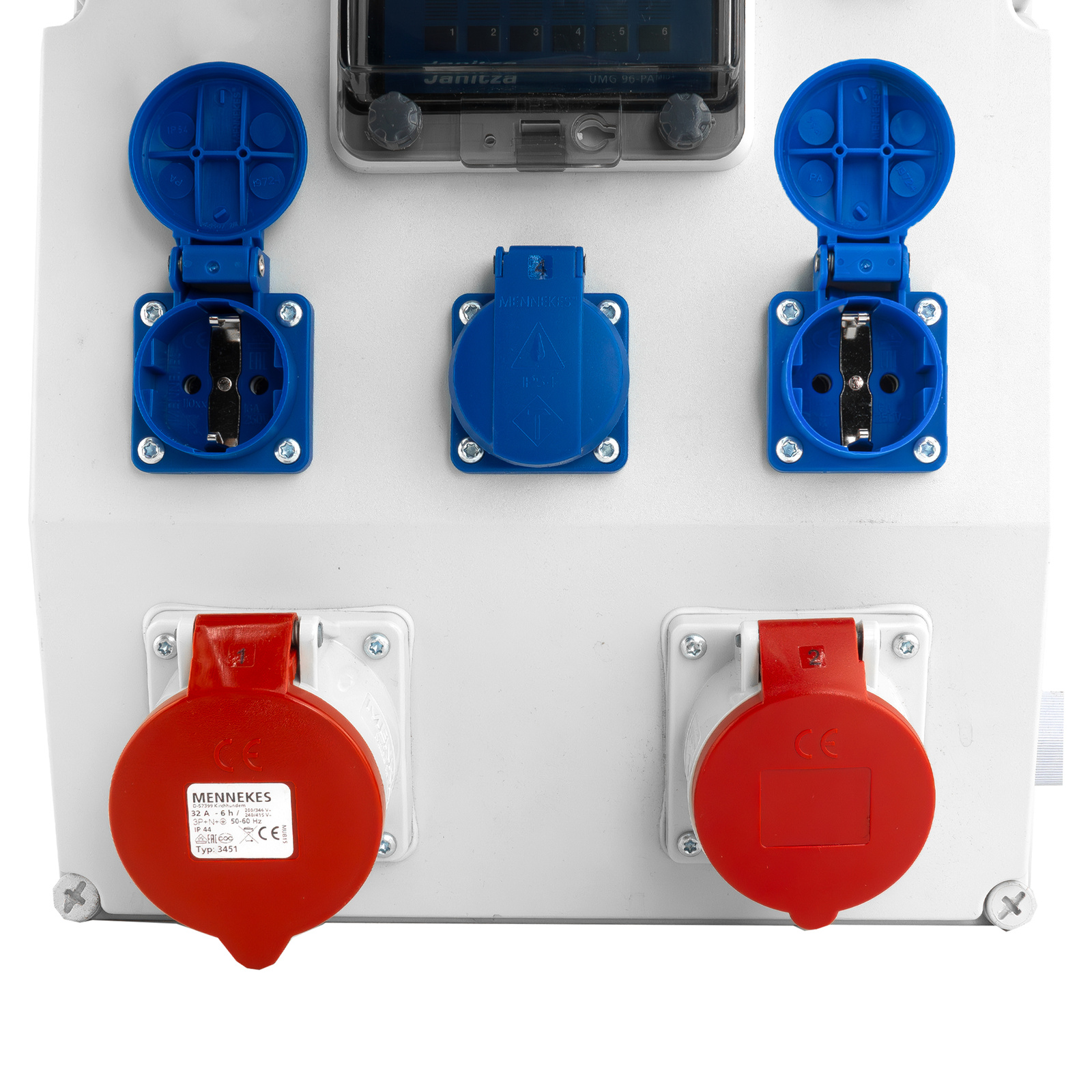

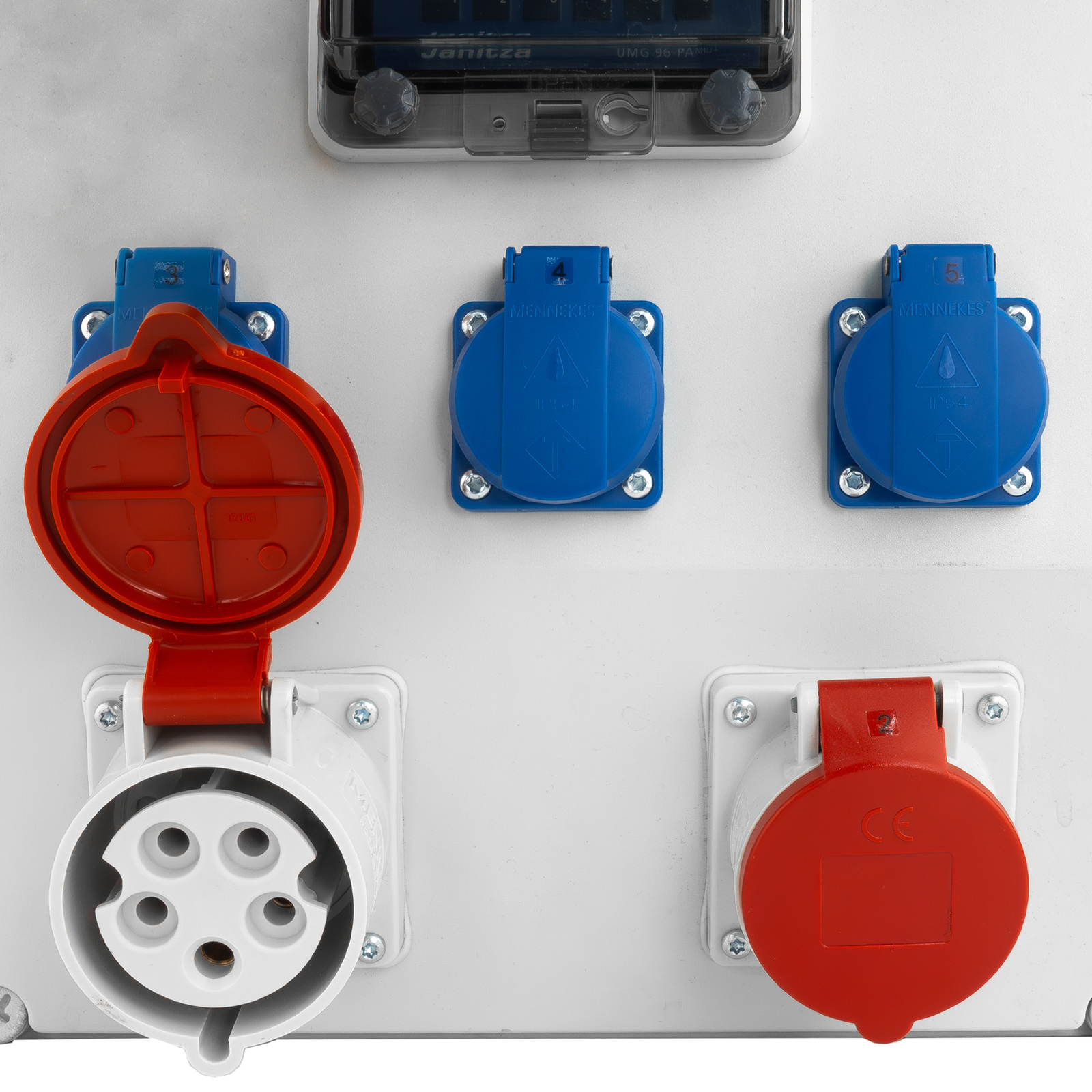

Sockets:
3x 230V 16A 2P+E Mennekes 11011 IP54
1x 16A 5P 400V IP44 Mennekes MEN27004
1x 32A 5P 400V IP44 Mennekes 27008

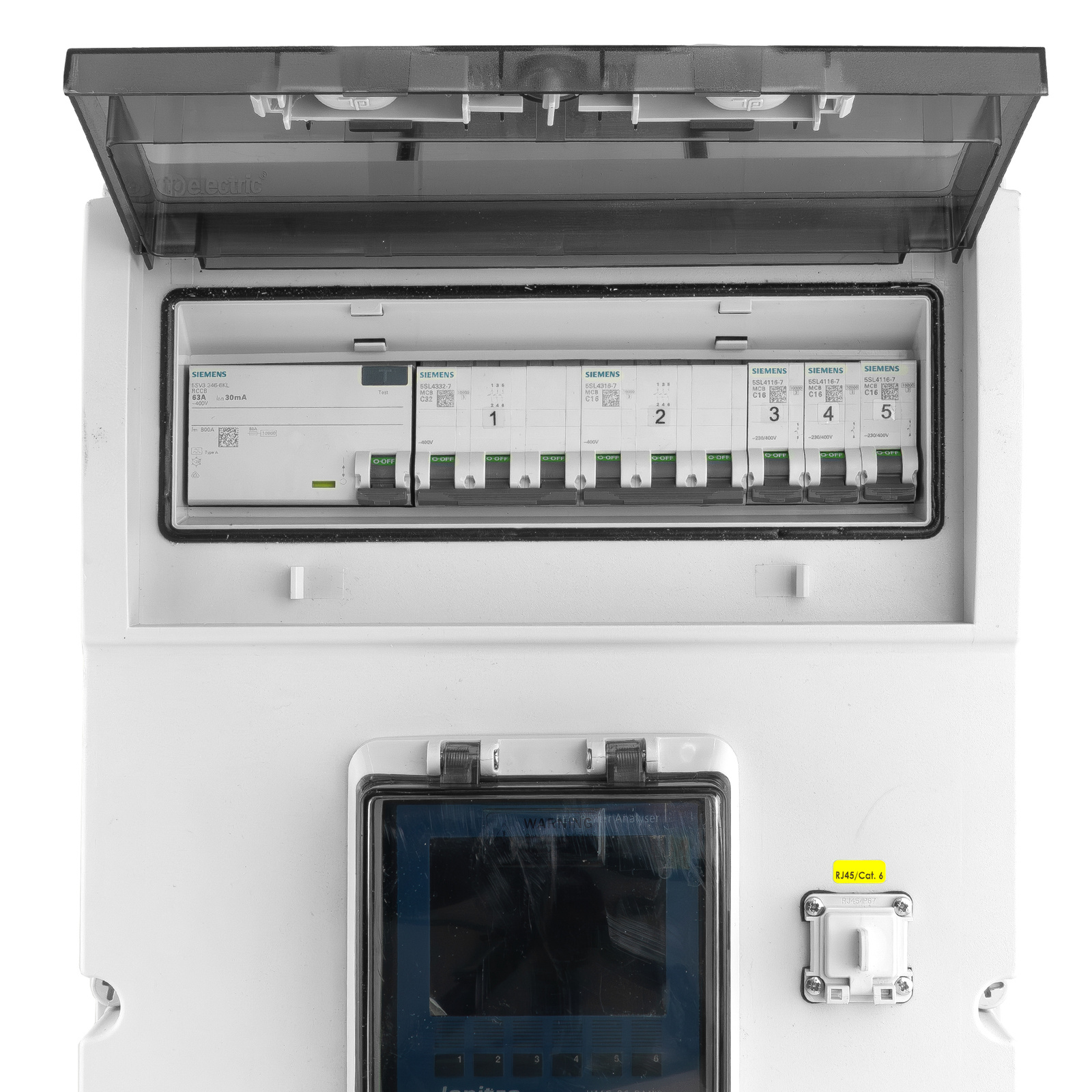

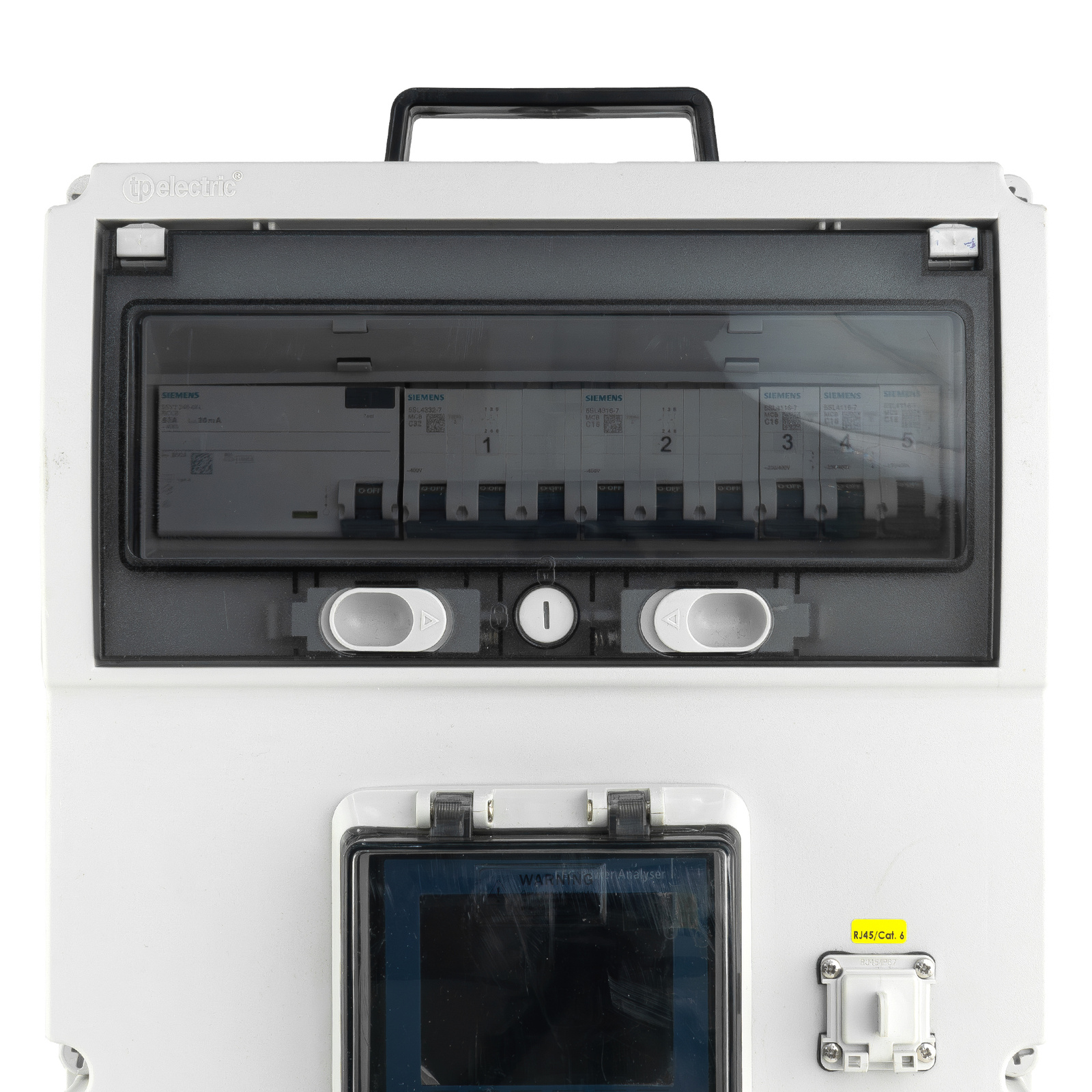

Protection devices:
3x C16 1P 10kA SIEMENS
1x C16 3P 10kA SIEMENS
1x C32 3P 6kA SIEMENS
RCD 32A 20mA 3P SIEMENS
Type of cabling
Cable type:
H07V-K 2.5/4 mm² yellow-green, black
H07V-K 1.5/2.5/4/6 mm² blue

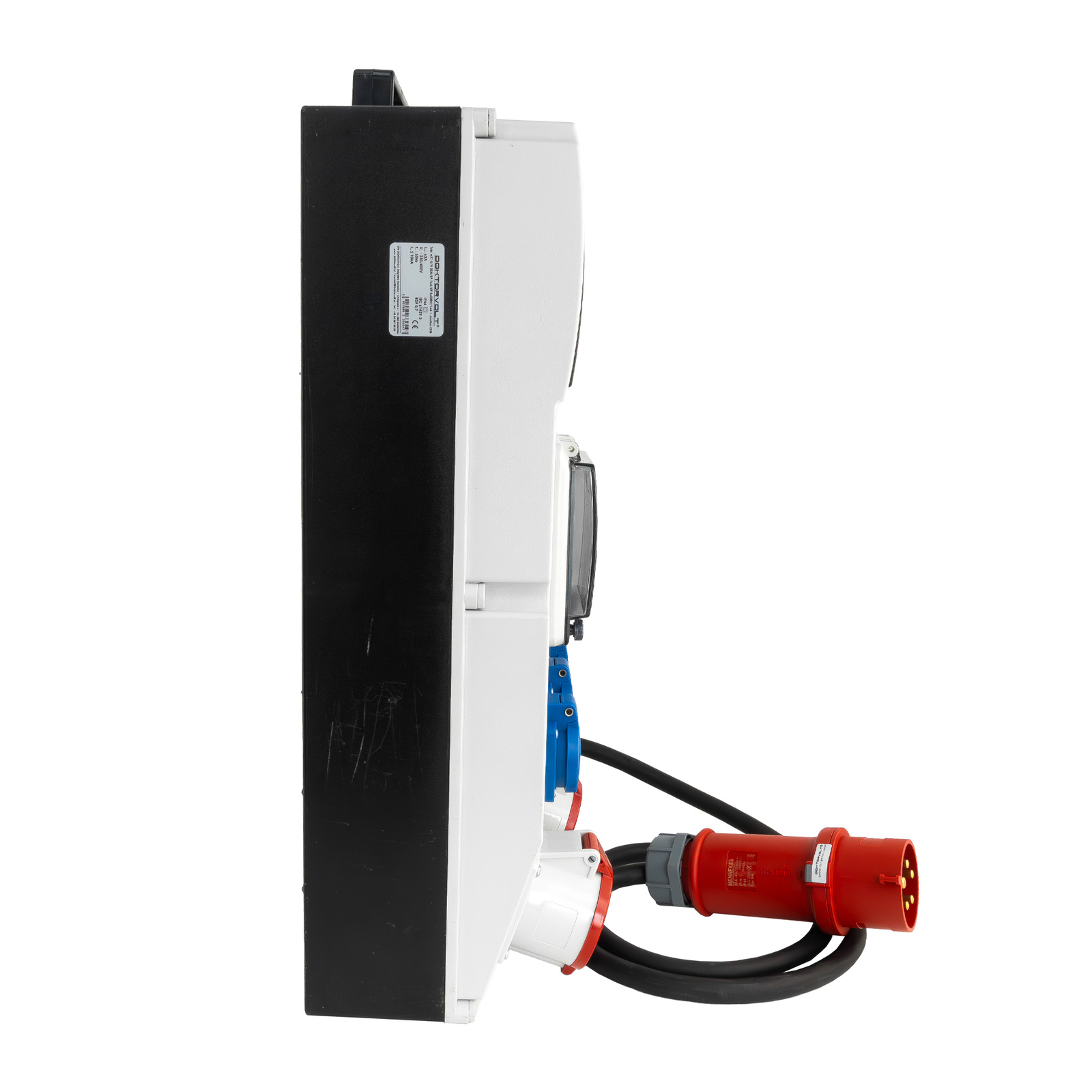

Power cable: 5×4 mm² H07RN-F
Additional information
RDF: 0.7
Manufacturer: Doktorvolt
Certificates and standards:
TÜV SÜD
ISO 9001:2015
CE
IEC 61439
DIN EN 61246-2
IEC 81346-2:2009
IP rating = greater safety:
– is protected against the ingress of objects larger than 1 mm
– is protected against water splashing from various directions
A trusted manufacturer:
Doktorvolt® was founded in 2013. This rapidly growing company has established itself on both the Polish and international markets. The company’s headquarters are located in Malichów in the Opole Voivodeship, where it operates a modern production hall and warehouse. The company specialises in the manufacture of construction switchboards, distinguishing itself through quality and reliability. Each switchboard is constructed from high-quality components. The products comply with the safety standards and regulations in force within the European Union.
